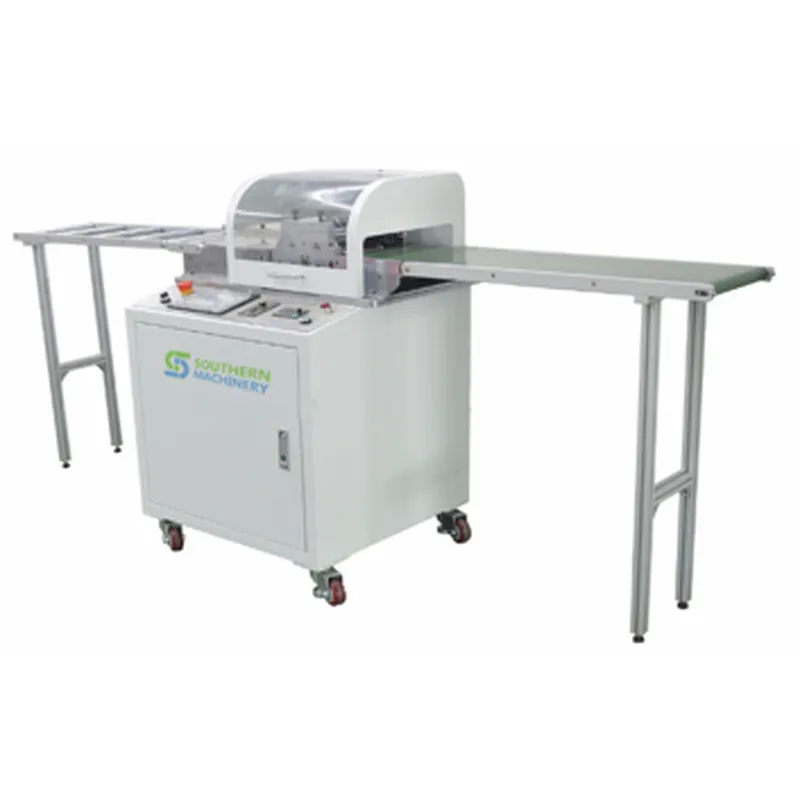

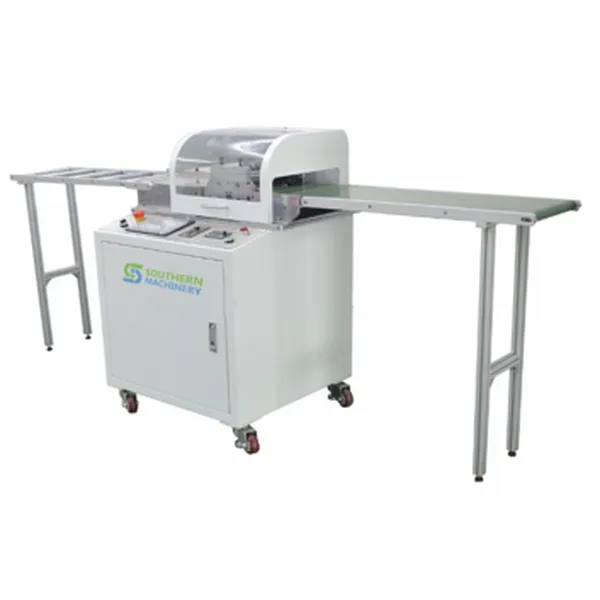

S-D900 Auto moveable cutting Separator for LED Boards

If you're in the electronics manufacturing industry, you know how important it is to have precise and efficient PCB depaneling machines. These machines are used to separate individual printed circuit boards (PCBs) from a larger panel, allowing for easier handling and assembly.

At their core, PCB depaneling machines use a variety of cutting methods to separate the PCBs from the panel. Some machines use a router or saw blade, while others use a laser or water jet. Regardless of the method, the goal is the same: to cleanly and accurately separate the PCBs without damaging them.

When choosing a PCB depaneling machine, there are a few key factors to consider. First and foremost, you'll want to look for a machine that can handle the size and thickness of your PCBs. You'll also want to consider the speed and accuracy of the machine, as well as any additional features that may be important to your specific application.

At the end of the day, investing in a high-quality PCB depaneling machine can help streamline your manufacturing process and improve the overall quality of your products. So if you're in the market for a new machine, be sure to do your research and choose one that meets your specific needs.

More pictures please click SMT PCB Separator

It is suitable for all kinds of electronic industry, which mainly solves the bad situation of products produced by manual breaking off.

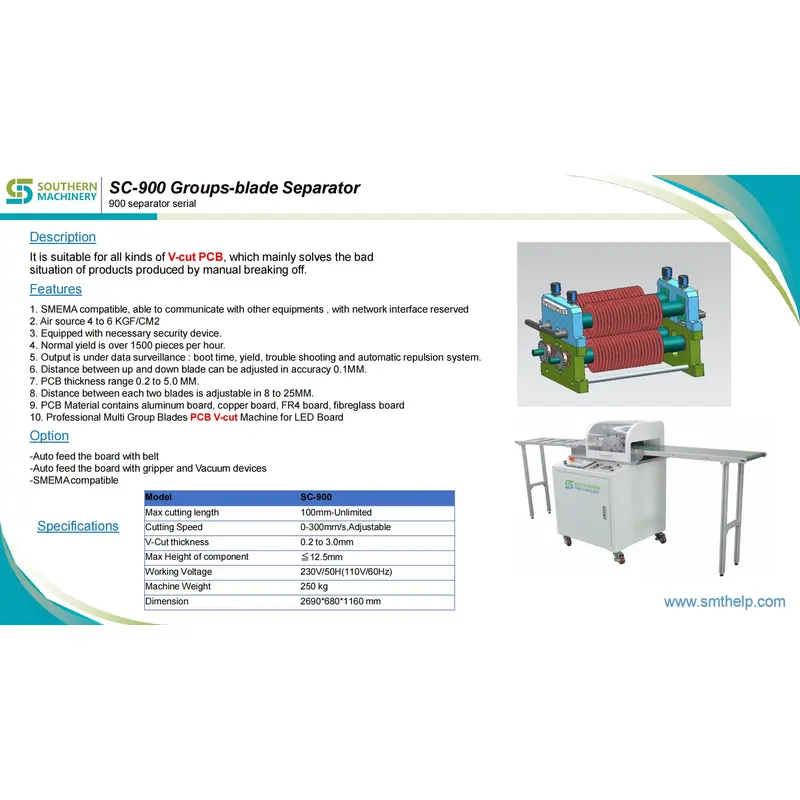

Features:

1. SMEMA compatible, able to communicate with other equipments , with network interface reserved

2. Air source 4 to 6 KGF/CM2

3. Equipped with necessary security device.

4. Normal yield is over 1500 pieces per hour.

5. Output is under data surveillance : boot time, yield, trouble shooting and automatic repulsion system.

6. Distance between up and down blade can be adjusted in accuracy 0.1MM.

7. PCB thickness range 0.2 to 5.0 MM.

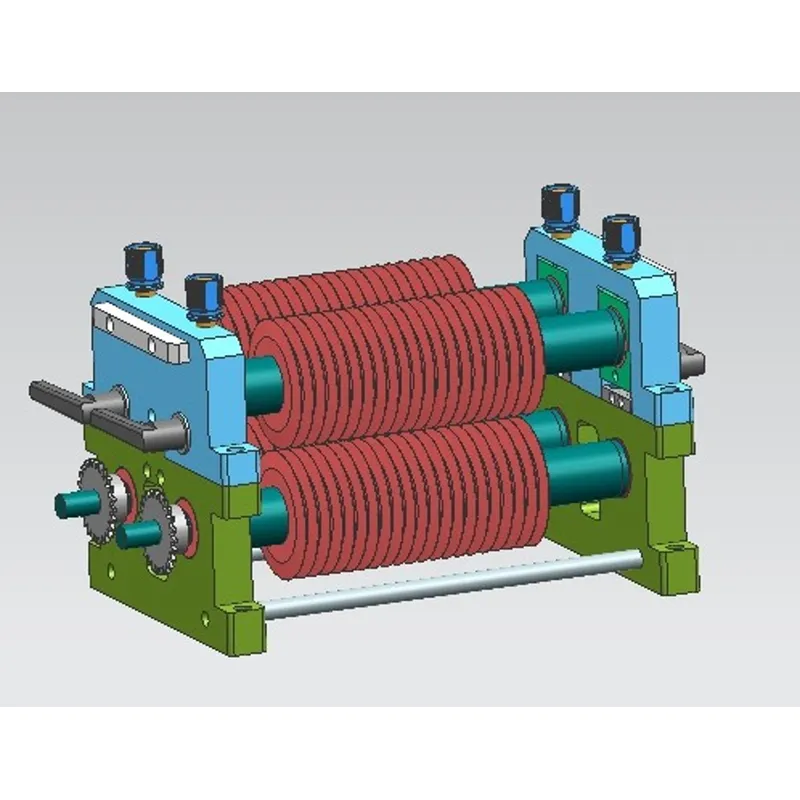

8. Distance between each two blades is adjustable in 8 to 25MM.

9. PCB Material contains aluminum board, copper board, FR4 board, fibreglass board

10. Professional Multi Group Blades PCB V-cut Machine for LED Board

Specifications：

Machine Size	1100x730x630 mm
Max cutting length	Unlimited
Cutting Speed	80, 120, 200, 400mm per second
Cutting thickness	0.2-5.0mm
Max Height of component	13mm
Working Voltage	230V/50H(110V/60Hz)
Machine Weight	158 kg

Customers FAQ About PCB Separator S-D900 :

Q:Do you have any certification for this machine?
A:YES,We have CE ISO FCC ROHS etc.
Q:What is warranty of the machine?
A:1 year.
Q:How do you pack the machine?
A:We fix the machine on the plywood base with screws to ensure safe transportation.
Q:What is life time of machine blades?
A:About 6-12 months.
Q:What is material of blades?
A:Japan high speed steel SKH-9
Q:Can the blades be sharpened?
A:Yes, they could be re-sharpened for 2-3 times.
Q:How do you offer oversea service?
A:We could send engineer to do installation and training for client if needs.
Q:Can we see your machine in our country?
A:Yes, we would like to offer contact details of our clients who are using our machines.
