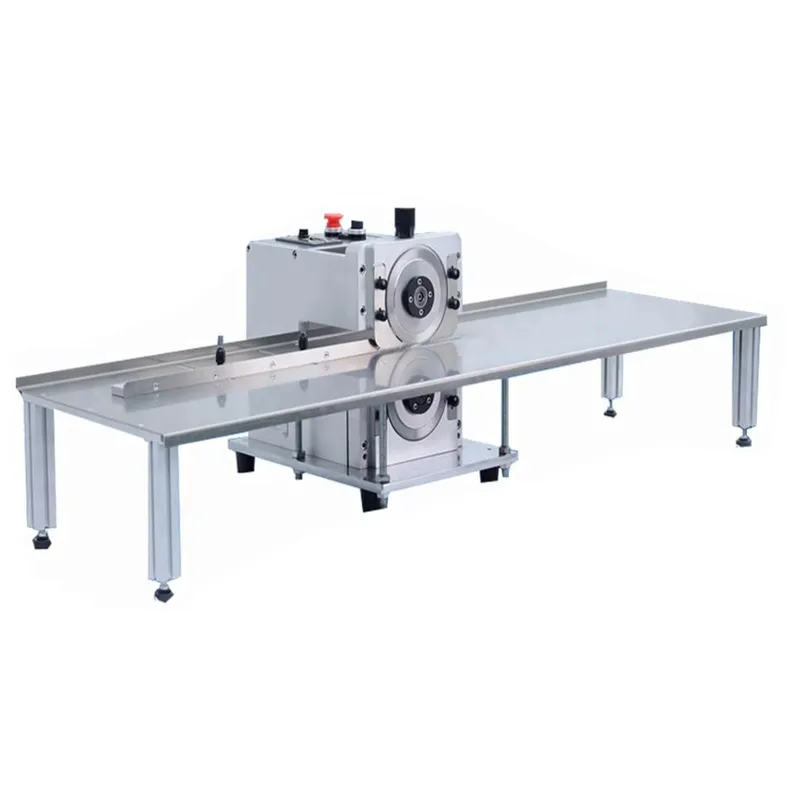

S-D502 LED Tube Separator V-cut PCB Separator Machine for LED Boards with long Platform

If you're in the electronics manufacturing industry, you know how important it is to have a reliable PCB separator machine. This equipment is essential for separating printed circuit boards (PCBs) into individual units, ensuring that each board is properly cut and free from any damage.

At its core, a PCB separator machine is designed to cut PCBs along their score lines, which are the pre-defined lines that indicate where the board should be separated. This process is critical for ensuring that each board is cut accurately and without any burrs or rough edges.

When choosing a PCB separator machine, there are several factors to consider. First and foremost, you'll want to look for a machine that is easy to use and maintain. You'll also want to consider the machine's cutting speed, as well as its ability to handle different types of PCBs.

Another important consideration is the machine's safety features. Look for a machine that has safety guards and sensors to prevent accidents and ensure that the cutting process is as safe as possible.

Overall, a high-quality PCB separator machine is an essential investment for any electronics manufacturer. With the right machine, you can ensure that your PCBs are cut accurately and efficiently, helping you to produce high-quality products and stay ahead of the competition.

Description

S-D502-LED-Tube-Separator-2.4M



Features:

  1. Cutting speed is adjustable by manual

  2. Cutting by circular blades, few dust or residue generates; drive by motor , less pollution.

  3. Blade is made by professional factory of taiwan, the material is the high speed steel from Japan.

  4. House is made by A-alloy and finish in one time, handy, less space occupied, simple and swift operation

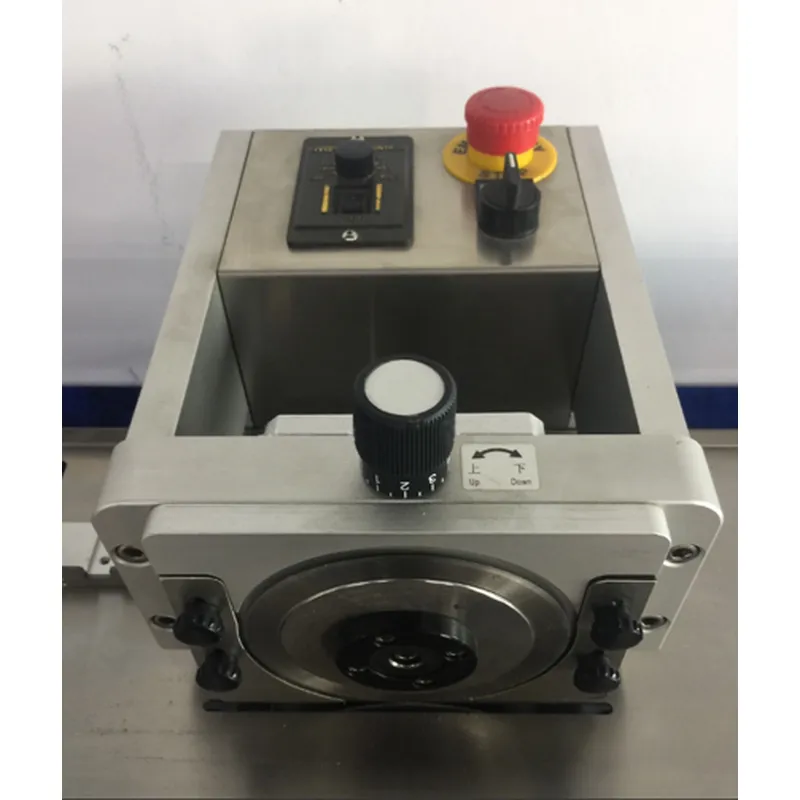

  5.  Up & Down Blade are able to be adjusted accurately.

  6. Specialized Automatic V-cut PCB Separator Machine for LED Boards with long Platform.

Specifications:

ModelS-D500S-D501S-D502
Machine Size(L*W*H)380*290*380mm1200*360*190mm2400*360*190mm
Max cutting lengthMax 360mmMax 1000mmMax 1200mm
Cutting Speed80, 120, 200, 500mm/S80, 120, 200, 500mm/S80, 120, 200, 500mm/S
Cutting thickness0.2-5mm0.2-5mm0.2-5mm
Working Voltage230V/50H(110V/60Hz)230V/50Hz(110V/60Hz)230V/50Hz(110V/60Hz)
Machine Weight29kg35kg44kg









Customers FAQ About PCB Separator S-D502:

  1. Q:Do you have any certification for this machine?
    A:YES,We have CE ISO FCC ROHS etc.

  2. Q:What is warranty of the machine?
    A:1 year.

  3. Q:How do you pack the machine?
    A:We fix the machine on the plywood base with screws to ensure safe transportation.

  4. Q:What is life time of machine blades?
    A:About 6-12 months.

  5. Q:What is material of blades?
    A:Japan high speed steel SKH-9

  6. Q:Can the blades be sharpened?
    A:Yes, they could be re-sharpened for 2-3 times.

  7. Q:How do you offer oversea service?
    A:We could send engineer to do installation and training for client if needs.

  8. Q:Can we see your machine in our country?
    A:Yes, we would like to offer contact details of our clients who are using our machines.
