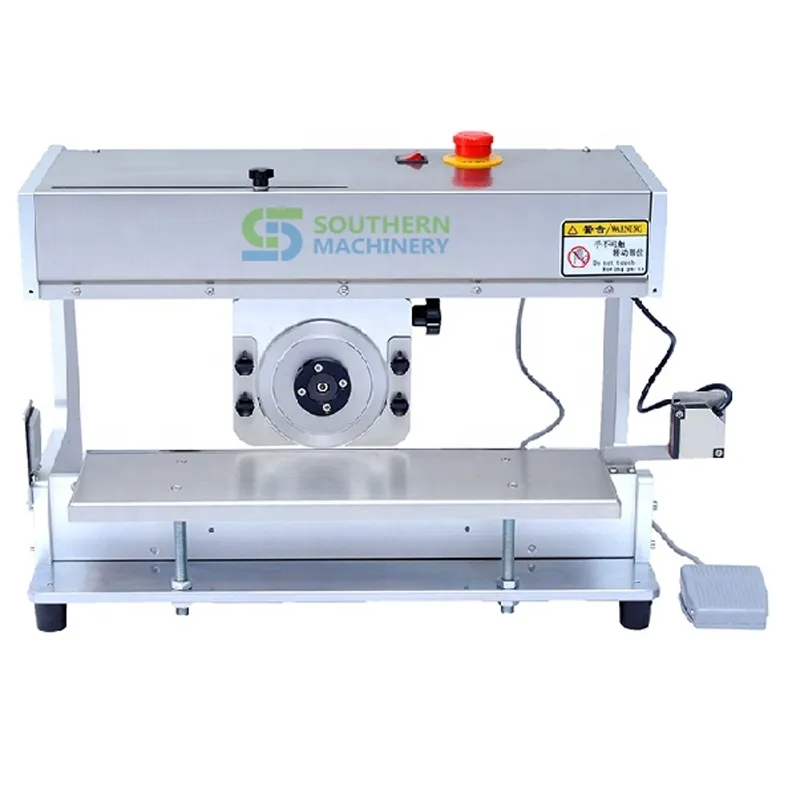

S-D508 Moveable V-cut PCB Separator

It is suitable for all kinds of V-cut PCB, which mainly solves the bad situation of products produced by manual breaking off.

Features

cutting speed adjustable, high as 500mm/s, and low as 300mm/s,higher speed can improve cutting result, make the boards away from burr.
Cutting length is 0 to 360mm (blade length can be customized) blade height slight adjustment in 0 to 2mm, platform height adjustable in 0 to 50mm,to fit PCB of different thickness ,and solve the problem of different V-slot depth
Manually Set the position to stop automatically according to specific length of the PCB.
There is no restriction on width of target PCB, Max cutting length is 500mm,PCB thickness range is 0.2 to 5.0mm, max thickness amoung V-slot is 0.25 to 2.0mm
Blades material is the imported high speed steel, really durable, it can be sharpened again when in need.
Conveyor belt is optional , conveniently transfer finished PCB out.
Stop block can be used for different PCBs, to raise working efficiency 8.Professional V-cut PCB Separator Machine with Moveable Cutting Blade

More pictures please click SMT PCB Separator

Feature

The S-D508 portable V-cut PCB separator is designed to efficiently separate all types of V-cut PCBs with maximum precision. It solves the issues of inaccurate and inefficient manual separation methods with its advanced automated features.This movable separator offers numerous benefits:

•Adjustable cutting speed from 300 to 500mm/sec for optimal results on different PCB materials and thicknesses. Higher speeds produce cleaner cuts with minimal burring.

•Programmable cutting length from 0 to 360mm (custom blade lengths available). Slight blade height adjustment from 0 to 2mm. Platform height adjustment from 0 to 50mm to accommodate PCBs of various thicknesses and V-slot depths.

•Operators can manually set the position for automatic stops at precise board lengths.

•Unlimited PCB width capacity. Maximum cutting length of 500mm. PCB thickness range of 0.2 to 5.0mm. V-slot thickness range of 0.25 to 2.0mm.

•Durable imported high-speed steel blades provide accurate cutting and can be re-sharpened when needed.

•Optional conveyor belt efficiently transfers finished PCBs.

•Adjustable stop blocks suit different PCB types to increase productivity.

•A professional, automated V-cut PCB separator with a movable cutting blade that can be used anywhere in the factory.

The S-D508 portable V-cut PCB separator brings fast, high-quality separation to any location. Its advanced programmable features and movable design enable quick setup and scaling of V-cut PCB processing across electronics manufacturing facilities. This automated system reduces waste and unnecessary handling of materials for optimal efficiency.

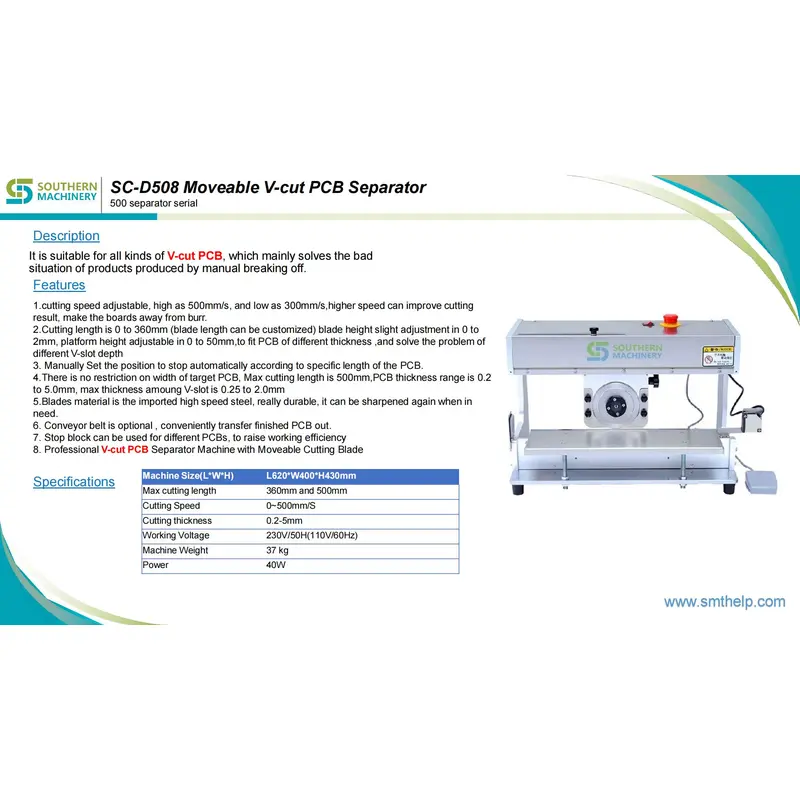

Specification

屏幕截图 2023-05-08 160000.png
