SLD350L SUL350L 1.2M LED PCB Magazine Loader and Unloader — magazine handling for PCBs up to 1200 x 350 mm. The SLD350L is our in-line magazine loader and the SUL350L the matching unloader for 1.2 m class boards - LED tube PCBs, lens strips and other long panels up to 1200 x 350 mm. Each unit weighs 300 KG, both are SMEMA compatible, and each carries a 1200*460*563 mm magazine rack. The loader footprint is 2800*970*1250 mm, the unloader 3000*970*1250 mm. The unloader runs on 110V or 220V single phase at max 250VA with 4-6 bar air, swaps its magazine in about 30 seconds, and indexes in 10, 20, 30 or 40 mm steps.
At a glance
| Max PCB size | 1200 x 350 mm (1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables) | Loader footprint | 2800*970*1250 mm (1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables) |
|---|---|---|---|
| Unloader footprint | 3000*970*1250 mm (1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables) | Weight per unit | 300 KG (1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables) |
| Magazine rack | 1200*460*563 mm (1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables) | Unloader swap time | about 30 seconds (1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables) |
| Unloader air supply | 4-6 bar (1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables) | Line interface | SMEMA compatible (1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables) |
Why 1.2 m boards break standard magazine handling
| Where the line loses money | What the machine does instead | Source |
|---|---|---|
| A 1.2 m LED tube PCB is longer than most magazine loaders' envelope, so boards get buffered by hand at the line entrance. | Both units publish a 1200 x 350 mm maximum PCB in the official datasheet spec table. | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| Hand-stacking long boards flexes them and chips the lens or component side. | Pneumatic clamps align the magazine and a regulated-pressure pneumatic pusher feeds each board - no operator handling per board. | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| Magazine changes on a long-board rack are slow and fiddly. | The datasheet sells high throughput with short magazine change-over; the unloader rack swap is stated at about 30 seconds or specify. | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| Board pitch differs between lens strips and driver boards. | Step select of 10, 20, 30 or 40 mm on the unloader, with a custom step specifiable at order. | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| Oversize stations often break the line handshake. | Loader, unloader and the antistatic magazine are all listed SMEMA compatible. | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| Standard magazine racks bow under a 1.2 m span. | The matched rack is 1200*460*563 mm; the accessory magazine is stainless steel and antistatic. | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
How the loader and unloader run a line
- Load the magazine — Boards are stacked in the 1200*460*563 mm magazine at the chosen step (10, 20, 30 or 40 mm on the unloader).
- Clamp and align — Pneumatic clamps square the magazine in the unit before any board moves - the datasheet lists this on both machines.
- Push onto the conveyor — The regulated-pressure pneumatic pusher presents one board at a time; pusher position adjusts to the centre of the magazine.
- Handshake down the line — SMEMA compatibility lets the unit talk to the adjacent equipment in an existing SMT/THT line.
- Swap the empty magazine — High throughput with a short magazine change-over is a stated design goal; the unloader swap is about 30 seconds or specify.

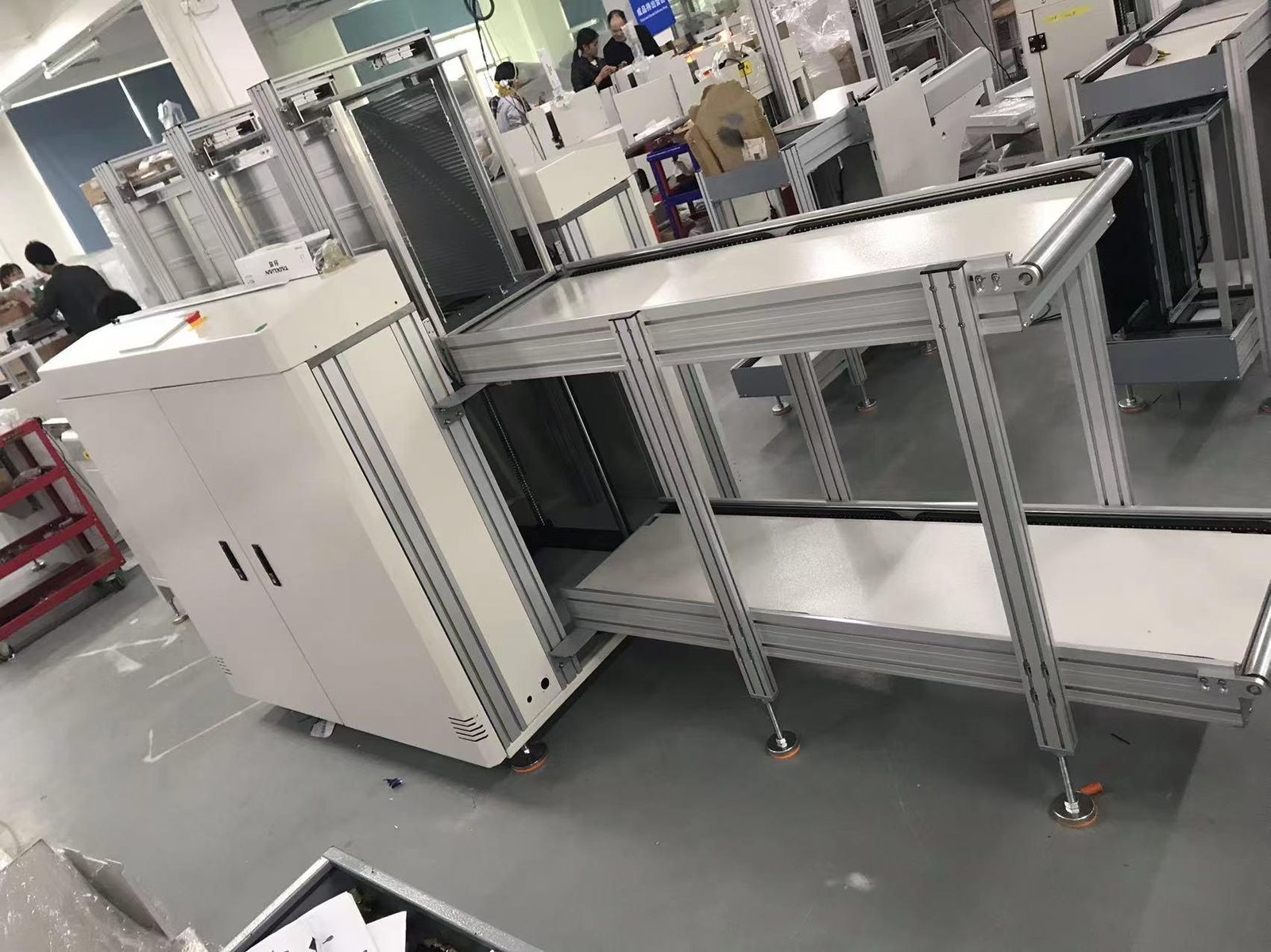

SLD350L loader unit photographed during assembly - 2800*970*1250 mm footprint with side-mounted magazine (official datasheet p.1).
The machines, photographed
SLD350L loader — Loader unit with magazine and in-line conveyor section. |

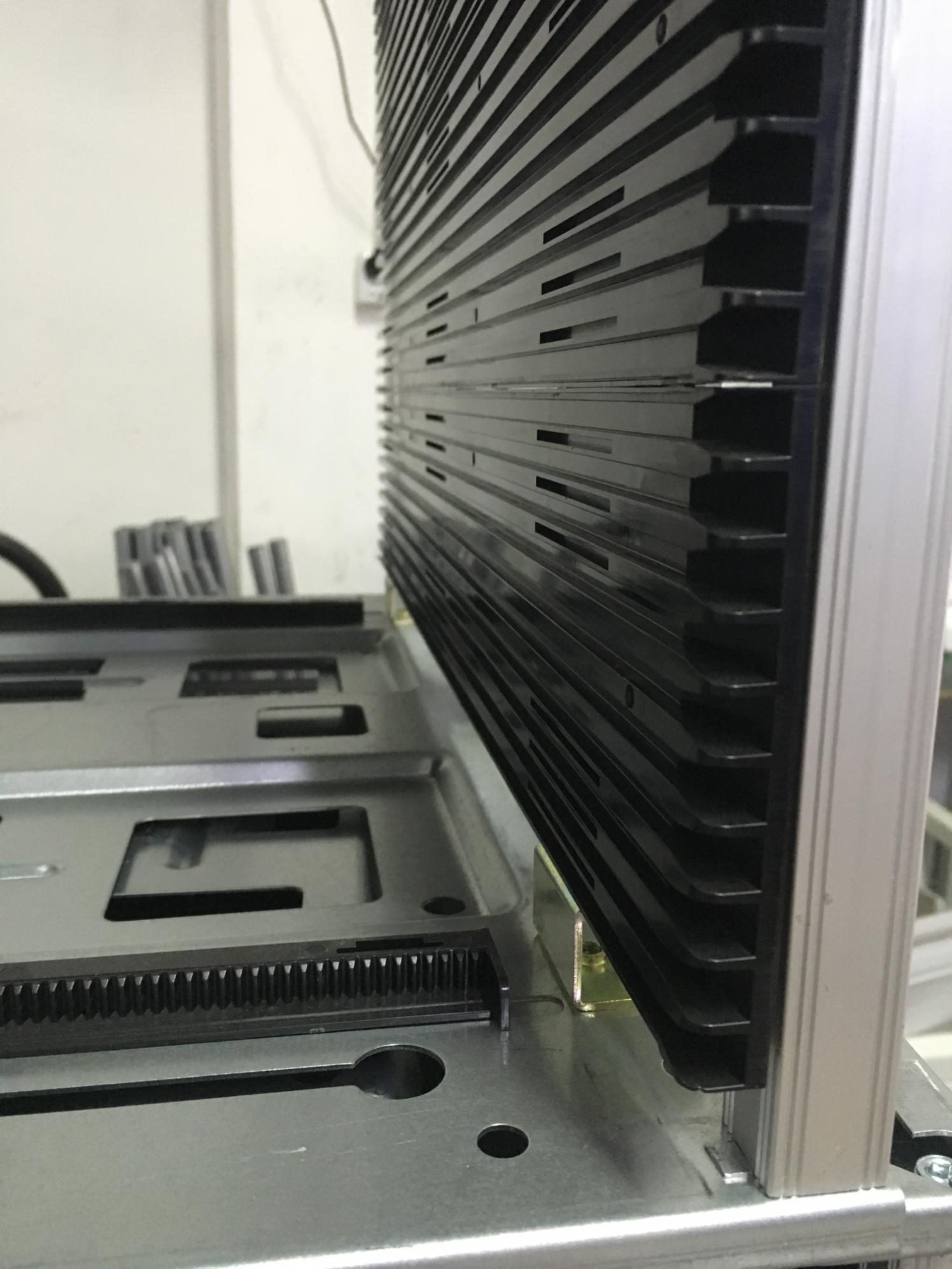

 Magazine slots — Long boards in the 1200*460*563 mm magazine - pneumatic clamp and pusher side. |

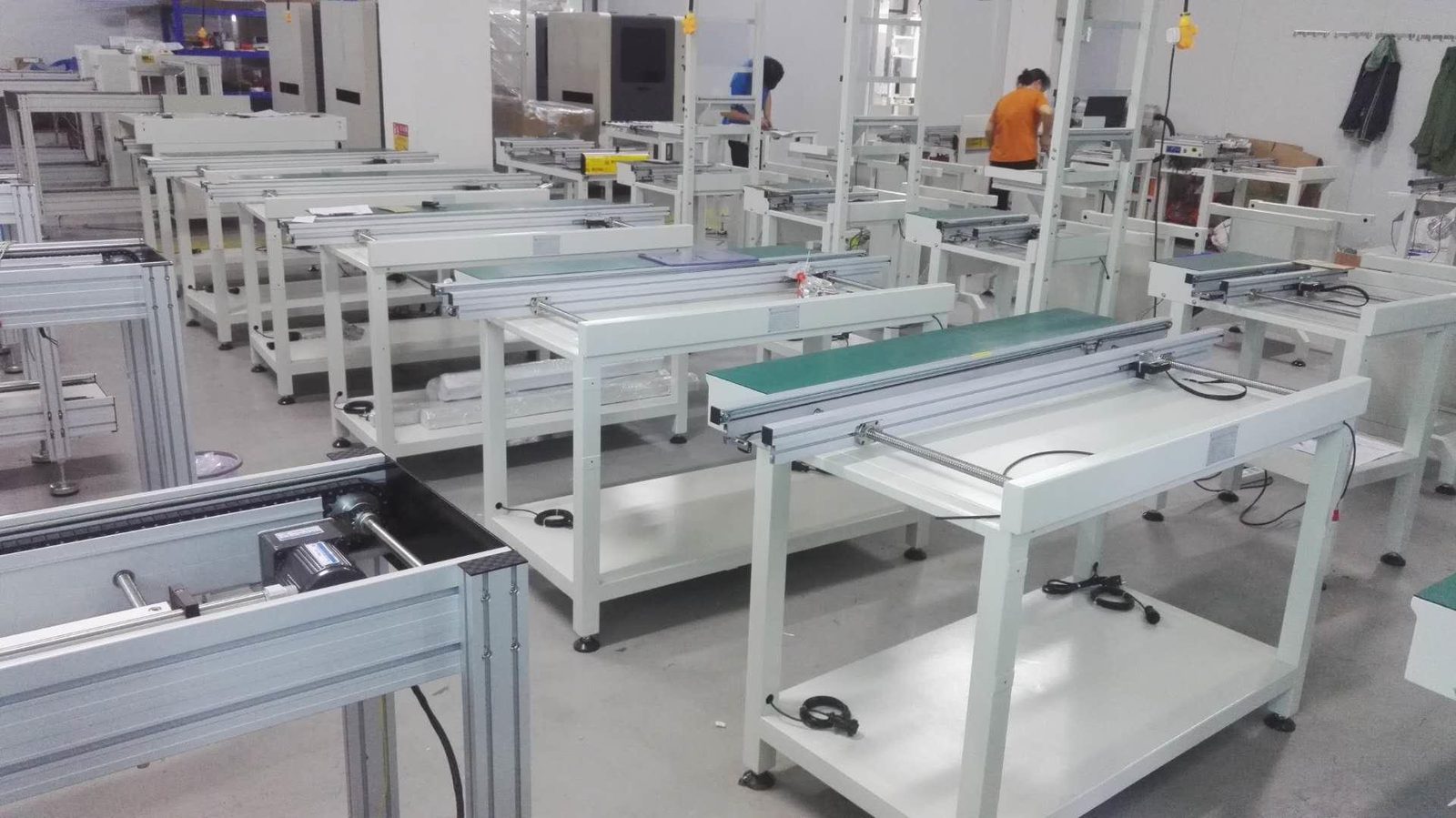

 Workshop row — Units of the magazine loader/unloader family on the build floor. |

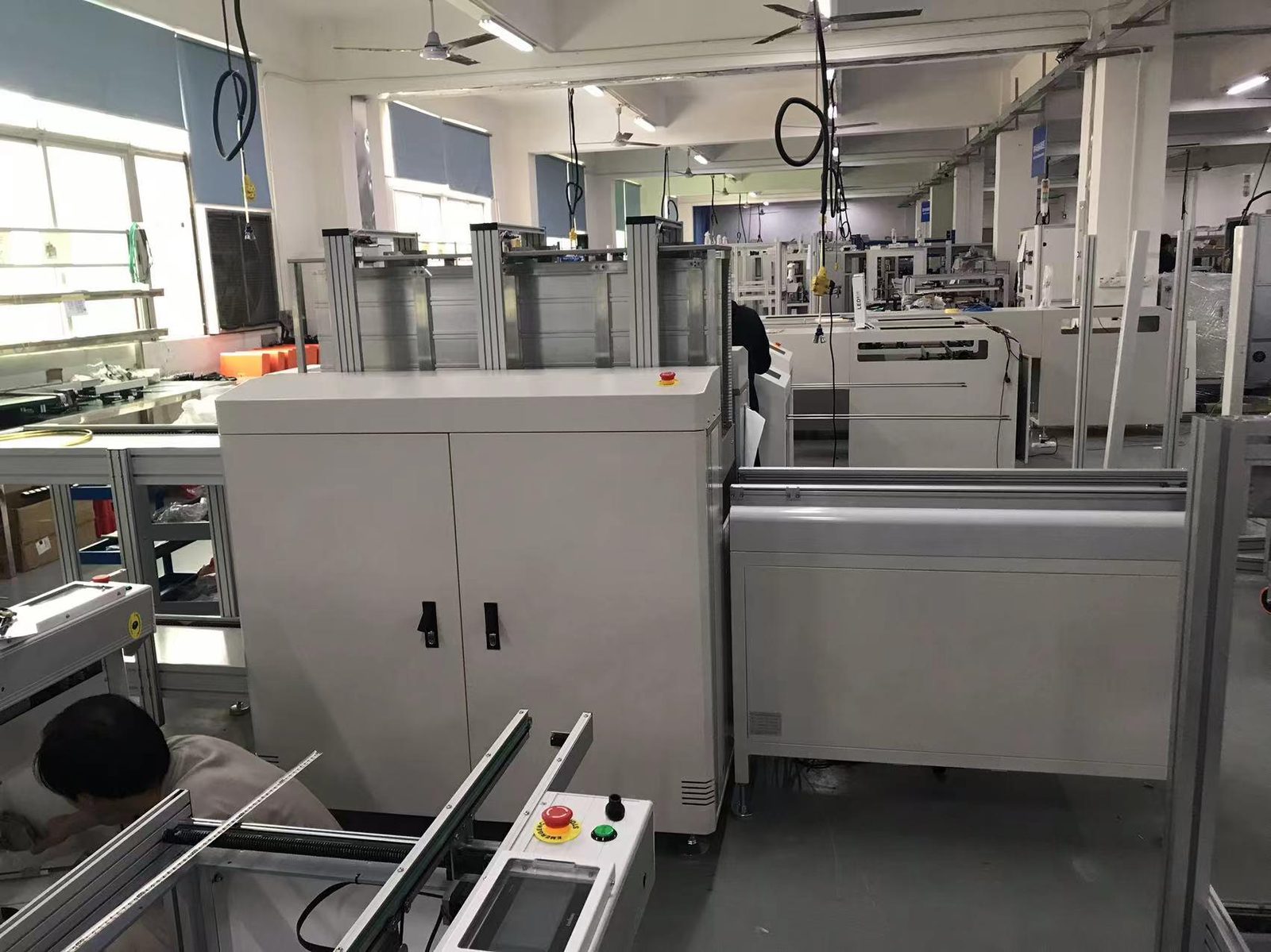

 SUL350L unloader — Unloader unit with control panel and dual magazine position (upper 1pc, bottom 1pc). |
All four images are real workshop photographs of the actual machine family, extracted from the official 1.2M LED PCB Magazine loader unloader datasheet (p.1-p.4). No rendered or AI-generated imagery is used on this page.
Technical specification
Every figure below is transcribed from a named Southern Machinery document; the third column tells you which one. Where two of our own documents disagree, both values are shown rather than merged.
| Item | Value | Source |
|---|---|---|
| SLD350L - machine type | 1.2M LED PCB Magazine Loader (in-line loading of PCBs from the production line) | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SLD350L - dimension (L*W*H) | 2800*970*1250 mm | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SLD350L - max PCB size | 1200x350 mm | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SLD350L - weight | 300KG | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SLD350L - rack size (L*W*H) | 1200*460*563 mm | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SLD350L - control panel | User friendly soft-touch LED membrane control panel | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SLD350L - magazine alignment | Pneumatic clamps provided | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SLD350L - pusher | Pneumatic pusher with regulated pressure | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SLD350L - change-over | High throughput with short magazine change-over time (no figure stated) | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SLD350L - electrical spec | not stated in the official datasheet (the 110V/220V, max 250VA figures belong to the SUL350L page only) | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SLD350L - air pressure | not stated in the official datasheet (the 4-6 bar figure belongs to the SUL350L page only) | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SLD350L - throughput / cycle time | not stated in the official datasheet | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SLD350L - line interface | SMEMA compatible | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SUL350L - machine type | 1.2M LED PCB Magazine Unloader (in-line unloading of PCBs from the production line) | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SUL350L - dimension (L*W*H) | 3000*970*1250 mm | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SUL350L - max PCB size | 1200x350 mm | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SUL350L - weight | 300KG | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SUL350L - rack size (L*W*H) | 1200*460*563 mm | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SUL350L - magazine quantity | upper 1pc, bottom 1pc | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SUL350L - tank (magazine) replacement time | about 30 seconds or specify | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SUL350L - step select | 10, 20, 30, 40 mm or specify | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SUL350L - electrical spec | 110V or 220V, single phase, max 250VA | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SUL350L - air supply | Barometic pressure from 4-6 bar, up to 10/min (datasheet wording quoted verbatim, including the original spelling) | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SUL350L - pusher | Regulated pressure on attached pneumatic pusher; pusher position adjustable to centre of the magazine | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SUL350L - control panel | User friendly soft-touch LED membrane control panel | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| SUL350L - line interface | SMEMA compatible | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| Antistatic magazine (accessory) | Stainless steel material, SMEMA compatible | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
| Board classes | 1.2 m class long boards up to 1200x350 mm - the datasheet title and application videos name LED tube lighting PCBs | 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables |
Which configuration you need
Buy the pair, not just one end
The datasheet documents loader and unloader as one product line with an identical board envelope (1200x350 mm), rack (1200*460*563 mm) and weight (300 KG). A line that loads 1.2 m boards from a magazine usually needs the matching collection end too.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
Specify the step before order
The unloader ships with a 10, 20, 30 or 40 mm step select, or a custom step if you specify it. Count your boards per magazine against your takt before choosing.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
Confirm the electrical supply for the unloader
The unloader is stated as 110V or 220V single phase, max 250VA. The datasheet does not publish an electrical figure for the loader, so ask us for the loader supply sheet before your electrician cuts trenching.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
Add the antistatic stainless magazine
The third datasheet page documents an antistatic magazine in stainless steel, SMEMA compatible - worth specifying for lens and bare-copper long boards.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
Air quality for the pneumatic clamps and pusher
The unloader lists 4-6 bar supply; both machines clamp and push pneumatically. Provide regulated, dried shop air per your local standard - the datasheet does not state a dew point.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
Work out the payback with your own numbers
We do not publish a payback figure for someone else's line. What this pair changes is measurable at your own station: boards handled per magazine, minutes of manual stacking removed, and magazine change-over time (the unloader swap is stated at about 30 seconds). This is the arithmetic we run with customers - send us the inputs and we will return the completed sheet.
| Step | Formula |
|---|---|
| Manual handling time removed per shift | boards_per_shift x seconds_to_stack_or_unstack_per_board / 3600 = hours |
| Magazine change-over time | changes_per_shift x minutes_per_change - about 30 seconds is the unloader's stated swap time |
| Labour cost avoided per year | hours_per_shift x shifts_per_day x working_days x wage_per_hour |
| Damage reduction | clamped, regulated-pressure board presentation versus hand handling of 1.2 m panels - count your own scrap history |
| Payback period | pair_price / (labour_cost_avoided_per_year + scrap_saved_per_year) |
Every figure on this page is transcribed from the official 1.2M LED PCB Magazine loader unloader datasheet. Where the datasheet gives no number (loader power, loader air, throughput of either unit), the row says so rather than borrowing a sibling model's figure.
Installation guide and site requirements
Site requirements
- Footprint: loader 2800*970*1250 mm, unloader 3000*970*1250 mm. Allow clearance at both ends for magazine loading. [Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables]
- Weight: 300 KG per unit - standard shop floor, no special foundation stated in the datasheet. [Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables]
- Electrical (unloader): 110V or 220V single phase, max 250VA. Loader supply figure is not stated in the datasheet; request it before ordering. [Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables]
- Compressed air (unloader): from 4-6 bar. The pneumatic clamps and pusher on both units need regulated shop air; no dew point is stated. [Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables]
- Board envelope: up to 1200 x 350 mm. Check your longest panel plus routing tolerance against this before ordering. [Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables]
- Line interface: SMEMA compatible on both units, so existing conveyor handshake wiring applies. [Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables]
- Magazine storage: rack size 1200*460*563 mm per unit; the unloader holds upper 1pc and bottom 1pc. [Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables]
Commissioning and training
Installation and operator training are included in our service terms as published in this datasheet: worldwide support, free installation and training, a 1 day spare-parts lead time and a 1 month customised solution turnaround.
Where long-board handling is needed
The 1200 x 350 mm envelope is published for the 1.2 m board class. The application videos on our channel show this pair running:
LED tube lighting PCBs / LED lens strip assembly / Long driver and ballast boards / THT/SMT in-line magazine buffering / AGV-served magazine transport between cells
Watch it work
1.2M LED tube lighting PCB Lens mounting application for Smart EMS factory PCB assembly
The 1.2 m LED tube PCB class this loader/unloader pair is specified for.
AGV to transport PCB magazine loader unloader for Smart EMS factory PCB assembly
Magazine transport between cells with an AGV feeding the loader/unloader pair.
PCB magazine loader working for EMS
Family demo: same magazine-loading principle on the standard-size SLD loaders. Board envelope and dimensions differ per model - see each model's own page.
Downloads
- 1.2M LED PCB Magazine loader unloader (official datasheet, 6 pp.) — Official datasheet, PDF (6 pages)
Questions this pair always raises
What are the SLD350L and SUL350L?
The in-line magazine loader (SLD350L) and matching magazine unloader (SUL350L) in our 1.2M LED PCB handling line. Both take boards up to 1200x350 mm, weigh 300 KG, and carry a 1200*460*563 mm magazine rack.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
What is the largest PCB this pair handles?
1200 x 350 mm - the maximum PCB size published for both the SLD350L and the SUL350L in the official datasheet.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
How is it different from the SLD250, SLD330 and SLD460 loaders?
This pair is specified for the 1.2 m board class with a 1200x350 mm envelope. The sibling models publish their own board sizes on their own pages; we do not merge those figures into this datasheet's table, and you should not read them across.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
How fast is the magazine change-over?
The unloader's tank replacement time is stated as about 30 seconds or specify. The loader is sold with high throughput and a short magazine change-over time, but no loader change-over figure is published.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
What board step can the unloader index?
10, 20, 30 or 40 mm, or a custom step specified at order.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
What are the electrical requirements?
The unloader is stated as 110V or 220V single phase, max 250VA. The official datasheet does not publish an electrical figure for the loader - request it from us rather than assuming it matches.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
What air supply does the pair need?
The unloader lists barometric pressure from 4-6 bar, up to 10/min (quoted with the datasheet's original wording). Both units clamp and push pneumatically; the loader's air figure is not stated separately.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
How many magazines does the unloader hold?
The datasheet states magazine quantity as upper 1pc and bottom 1pc.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
Is it SMEMA compatible?
Yes - the loader, the unloader and the antistatic stainless-steel magazine accessory are all listed SMEMA compatible.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
What does the antistatic magazine add?
The datasheet's third page documents an accessory magazine in stainless steel with antistatic properties, SMEMA compatible.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
What are the machine dimensions?
Loader 2800*970*1250 mm, unloader 3000*970*1250 mm, 300 KG each. These are the two units' own dimensions, not a line layout - the datasheet publishes no combined line drawing.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
What service terms apply?
As published in the datasheet: worldwide support, free installation and training, 1 day lead time on spare parts and a 1 month customised solution turnaround.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
Why do some rows say not stated?
Because the official datasheet gives no figure there (loader power, loader air, throughput of either unit). We publish the gap instead of borrowing a number from a sibling model or a marketing sheet.
Source: 1.2M LED PCB Magazine loader unloader datasheet, p.1-2 spec tables
