Description

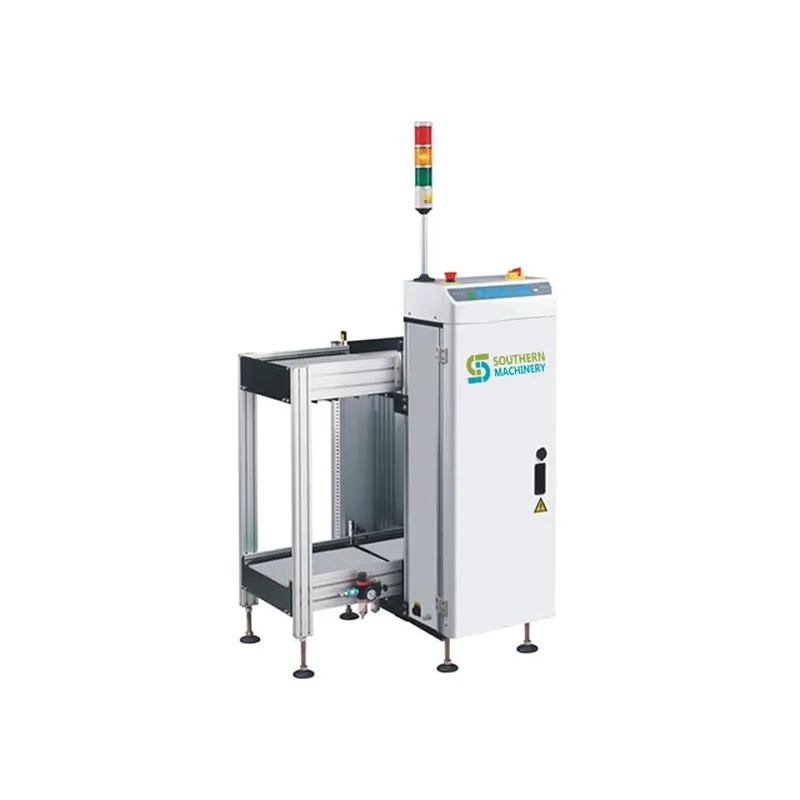

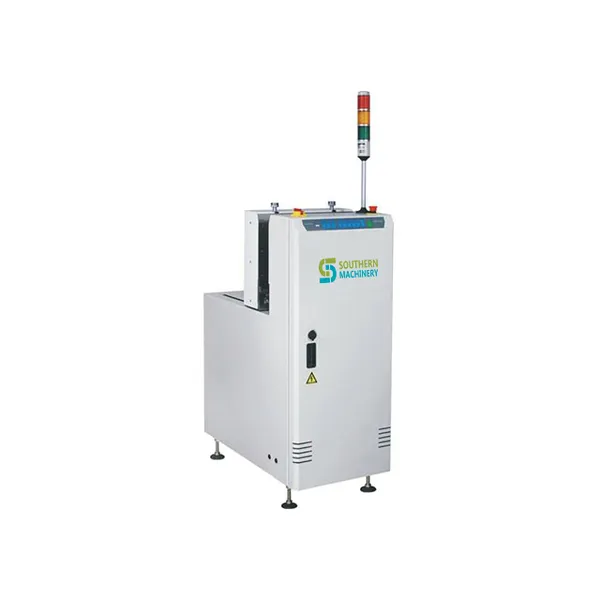

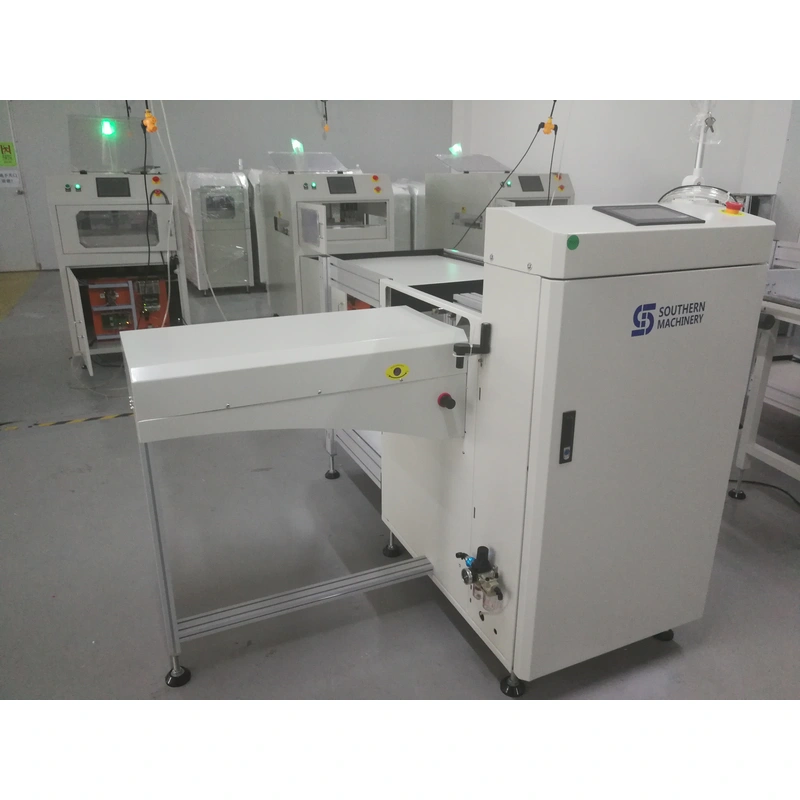

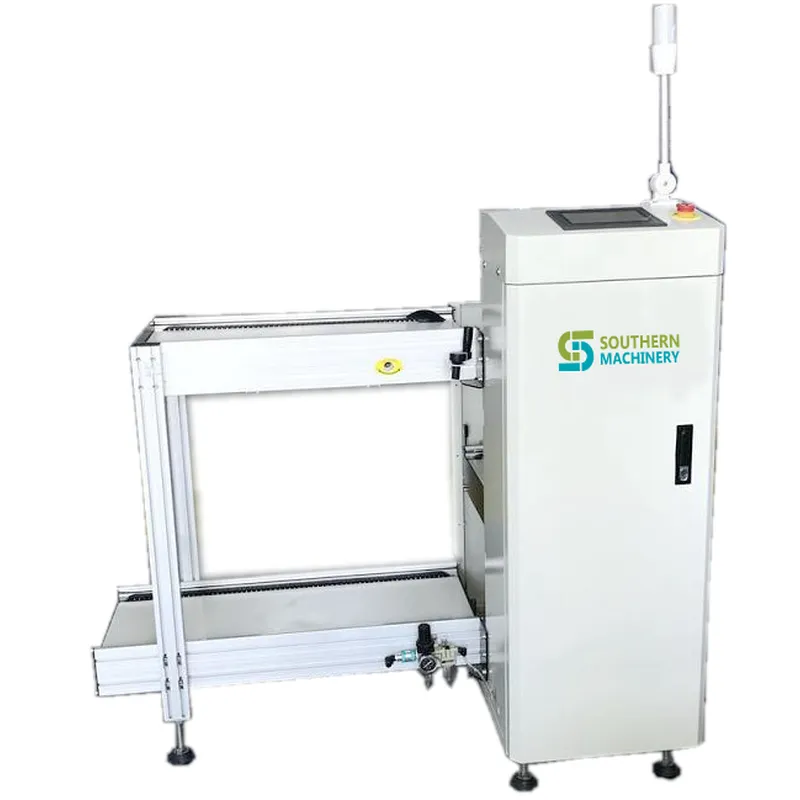

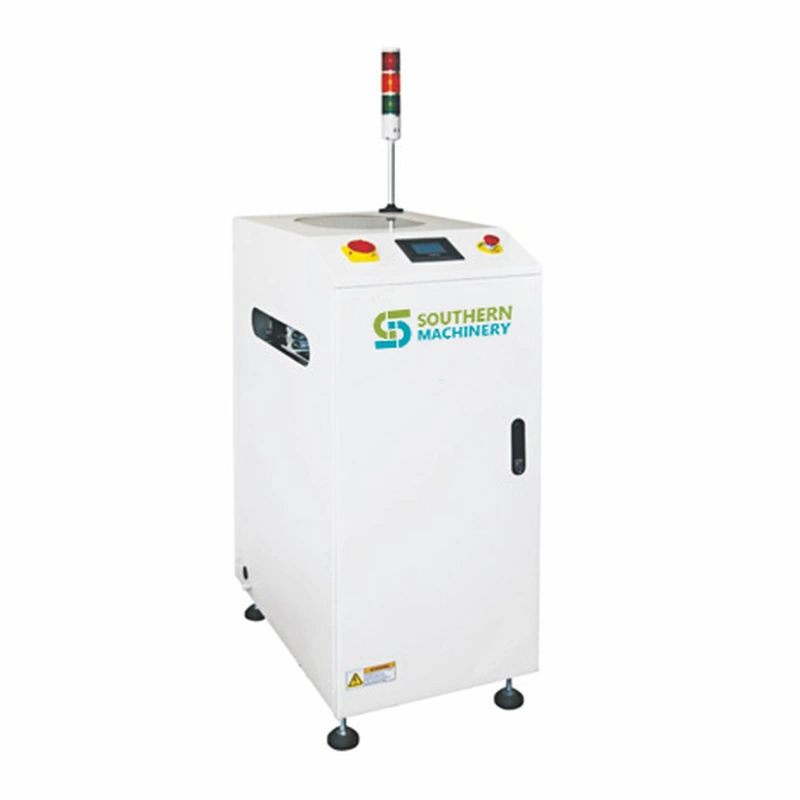

This unit is used for unloading PCBs from production line.
Features
Sturdy and stable design
SMEMA compatible.
PLC Program control.
Selectable pitch settings.
Automatic magazine change-over.
Flexible platform to suit standard magazines.
Barometic pressure from 4-6 bar, up to 10/min
Regulated pressure on attached pneumatic pusher.
Pusher position adjustable to centre of the magazine.
User friendly “soft touch” LED membrane control panel.
Top&bottom pneumatic clamps to secure magazine rack.
Technical specifications
Transport height:900mm ±20mm
Transfer direction:L to R or specify R to L
Power supply:110 VAC or 220VAC/50 Hz/1 Ph
Power consumption:300VA max.
Air supply & consumption:≥6 bar ;10 ltr/min max.
PCB loading time:±6 seconds
Magazine change-over time: ±30 seconds
Pitch distance:10.20.30.40mm pitch or specify.
Magazine qty: 2 magazine(upper1,lower1)
Magazine storage: 50 pcs. PCB

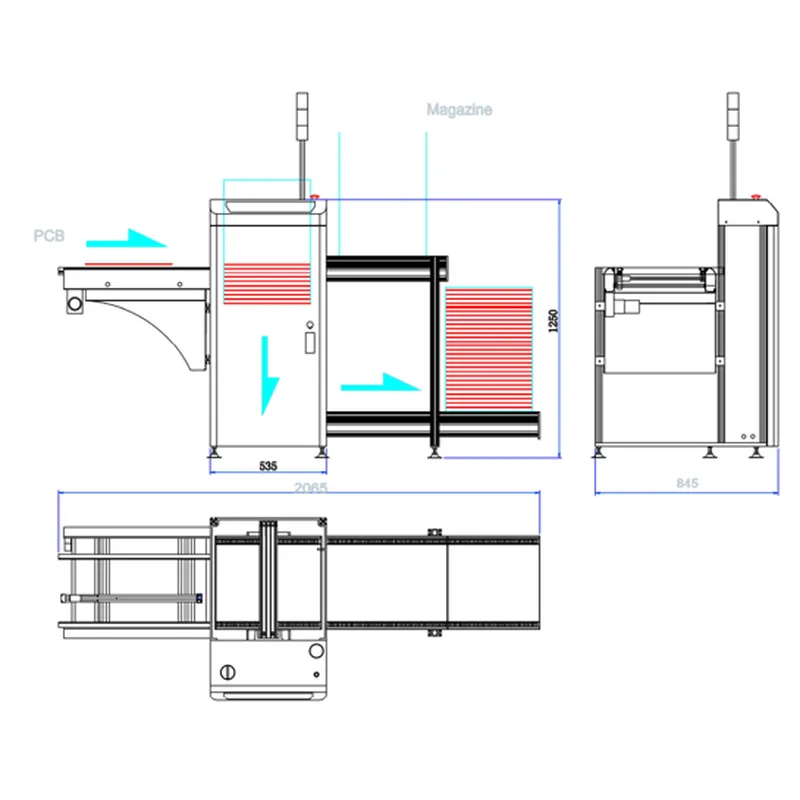

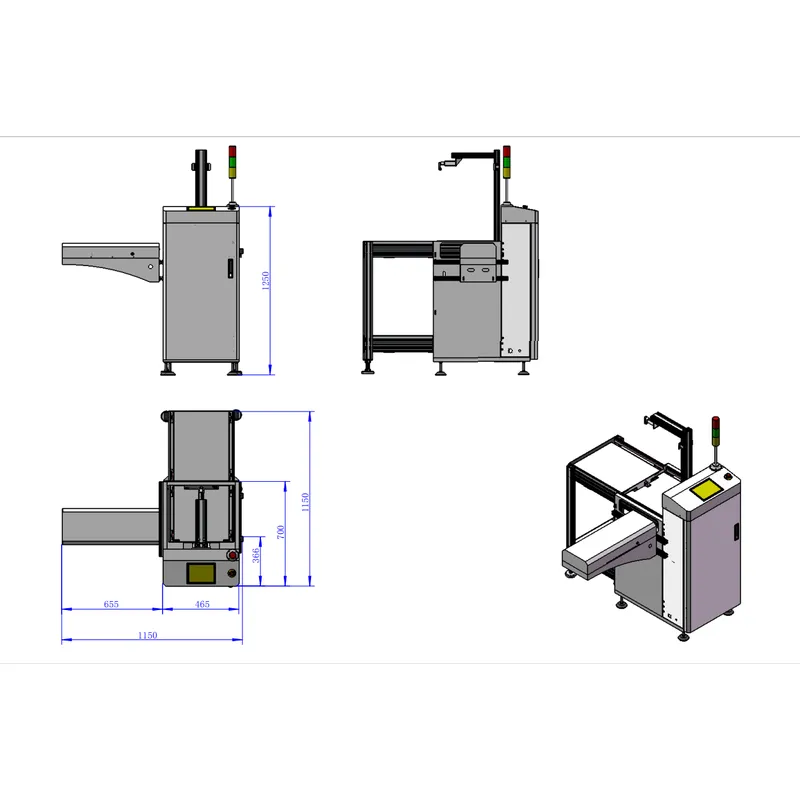

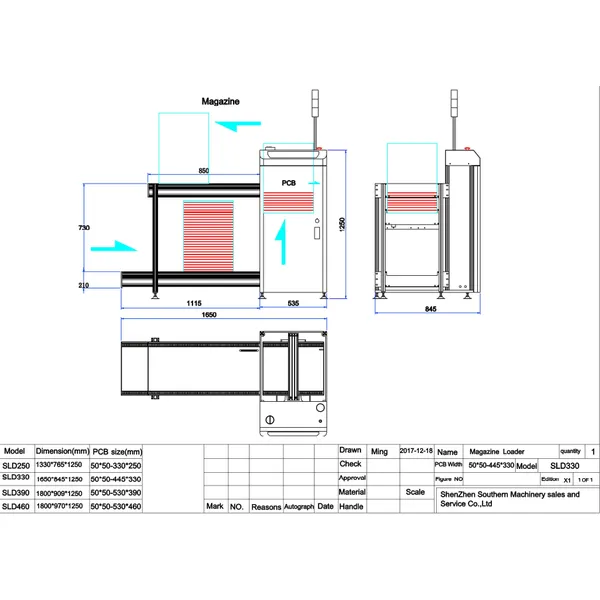

| Model | Dimension (L*W*H.MM) | PCB size(MM) | Weight(KG) | Rack size(L*W*H.MM) |
| SUL250 | 1730*765*1250 | 50*50-330*250 | 160KG | 355*320*563 |
| SUL330 | 2065*845*1250 | 50*50-445*330 | 220KG | 460*400*563 |
| SUL390 | 2660*909*1250 | 50*50-530*390 | 280KG | 535*460*563 |
| SUL460 | 2660*970*1250 | 50×50-530×460 | 320KG | 535*530*563 |

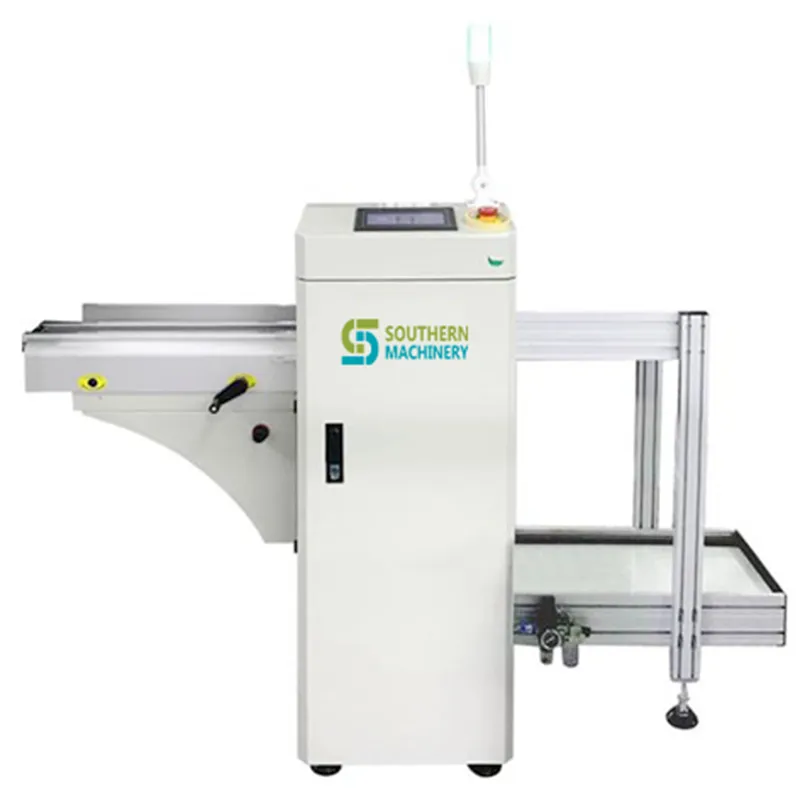

PCL+Touch screen +English/Chinease interface

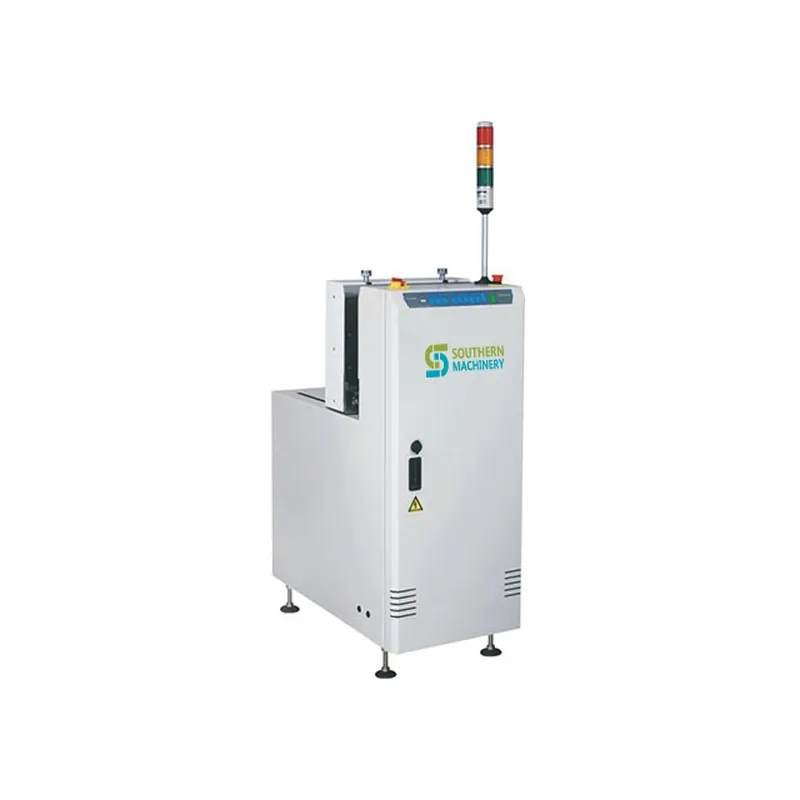

Loader English interface
SMEMA compatible
SMEMA compatible
