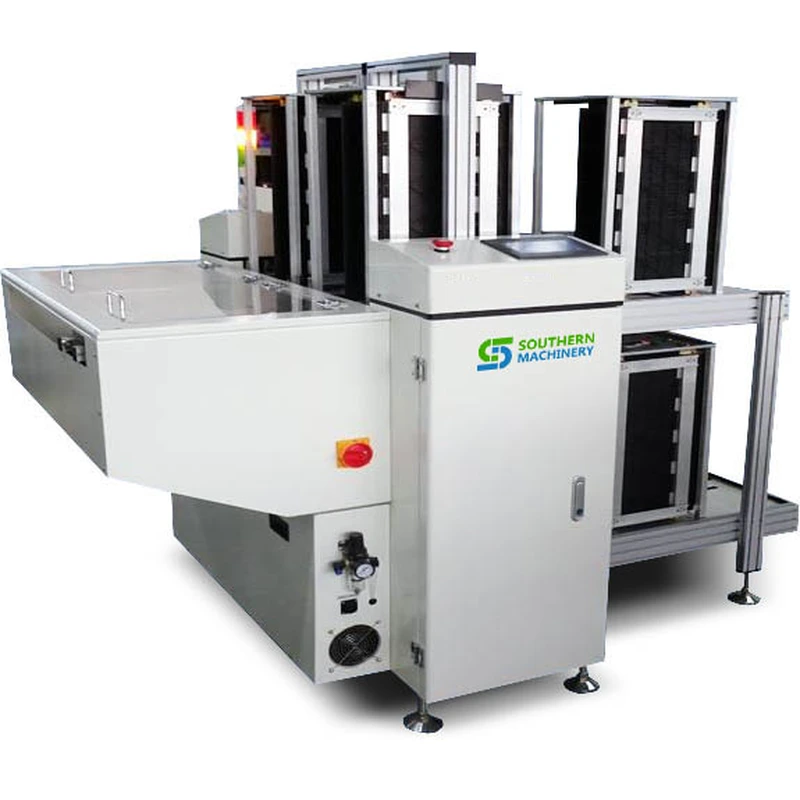

SBH250 NG/OK Unloader / Board handing system unloader serial

The SBH250 NG/OK Unloader is a highly efficient board-handling system unloader that is designed to streamline the production process. With its advanced serial response capabilities, this unloader is able to quickly and accurately unload boards from the production line, ensuring maximum productivity and efficiency. Its compact design and user-friendly interface make it easy to operate and maintain, while its robust construction ensures long-lasting performance. Whether you are looking to improve your production line or simply streamline your operations, the SBH250 NG/OK Unloader is the perfect solution for your needs.


For behind the AOI, the machine automatically the AOI reception to separate NG and OK PCB board to different storage

Description

Description

This unit is used to unloader PCBs from production line, suitble for receive NG board and OKboard after AOI process.

Features

User friendly “soft touch” LED membrane control panel.
Flexible platform to suit standard magazines.
Regulated pressure on attached pneumatic pusher.
Pusher position adjustable to centre of the magazine.
PLC Program control.
Ball screw is driven positioning of shuttle conveyor.
Automatic magazine alignment by upper and lower pneumatic clamping.
SMEMA compatible.

Technical specifications

Transport height:900mm ±20mm
Transfer direction:L to R or specify R to L
Power supply:110 VAC or 220VAC/50 Hz/1 Ph
Power consumption:300VA max.
Belt speed:16m/min
Air supply:≥6 bar
Air consumption:10 ltr/min max.
PCB loading time:±15 seconds
Pitch distance:10.20.30.40mm pitch or specify.
Maximum total magazine weight:50kg each or specify
Magazine change-over time: ±30 seconds
Magazine qty: total 4
Magazine storage:50pcs PCB

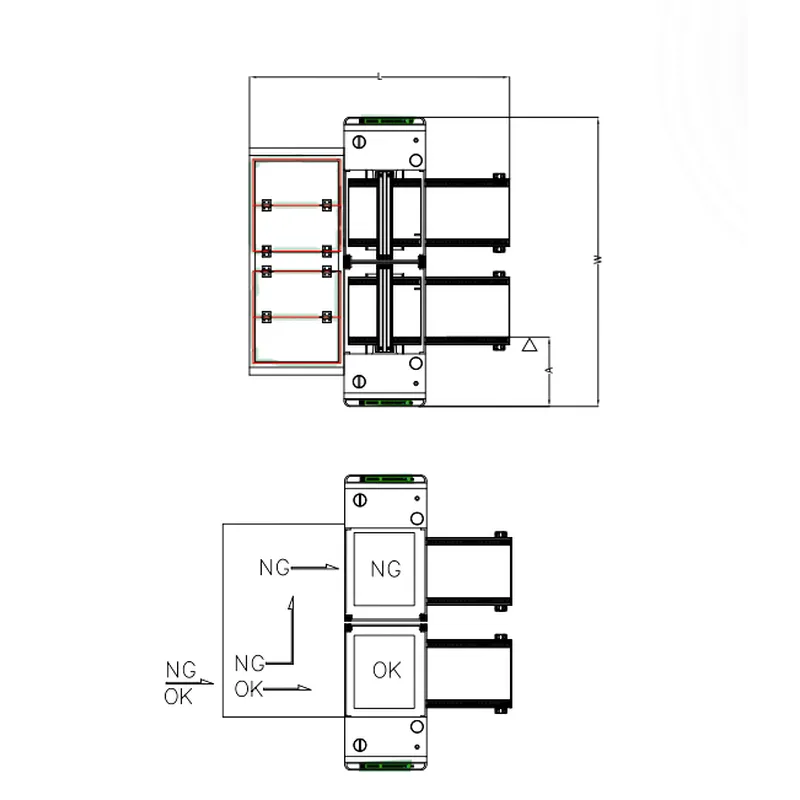

ModelDimension (L*W*H.MM)PCB size(MM)Weight(KG)Rack size(L*W*H.MM)
SBH2501510*1530*125050*50-350×250320KG355*320*563
SBH3301910*1630*125050*50-460×330350KG460*400*563
SBH3902160*1760*125050*50-535×390380KG535*460*563
SBH4602160*1900*125050×50-535×460460KG535*530*563
