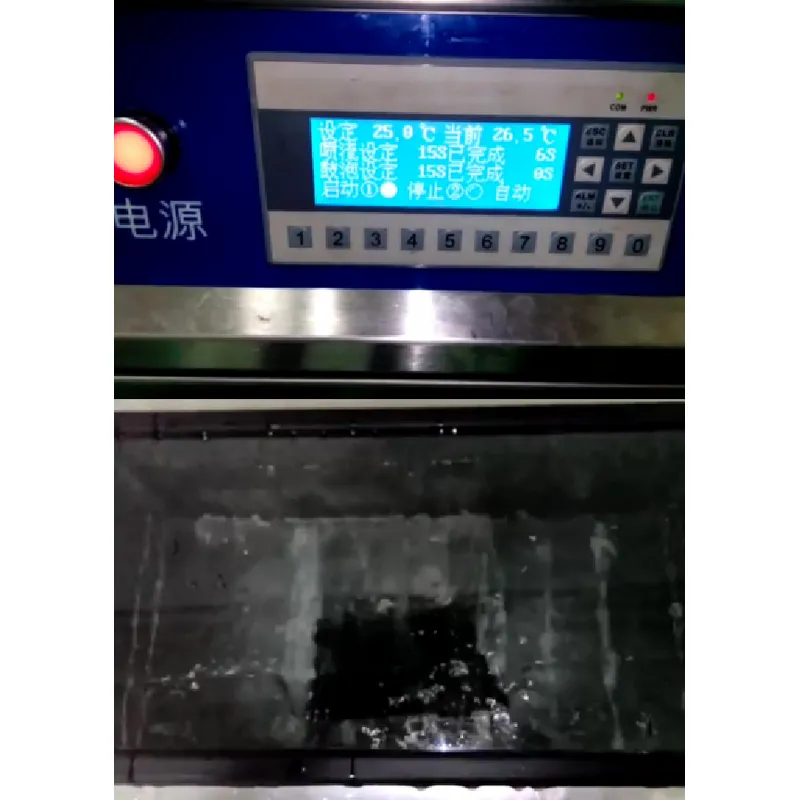

Ultrasonic &spraying module
The ultrasonic cleaning module uses cavitation bubbles to clean work pieces effectively. The addition of jet spray enhances cleaning performance.
Cleaning Medium: Water -based cleaning solution/Deionized water
External Dimensions: 850(L)×900mm(W)×850mm(H)
Internal Dimensions: 710mm(L)×350mm(W)×405mm(H)
Internal Volume: 100L, only needs 80L liquid during operation
Filtration Accuracy: 100 -300μm bag filter
Heating Temperature: Adjustable from room temperature to 80° C
Heating Power: 3KW
Ultrasonic Power: 2KW
Ultrasonic Frequency: 40KHz

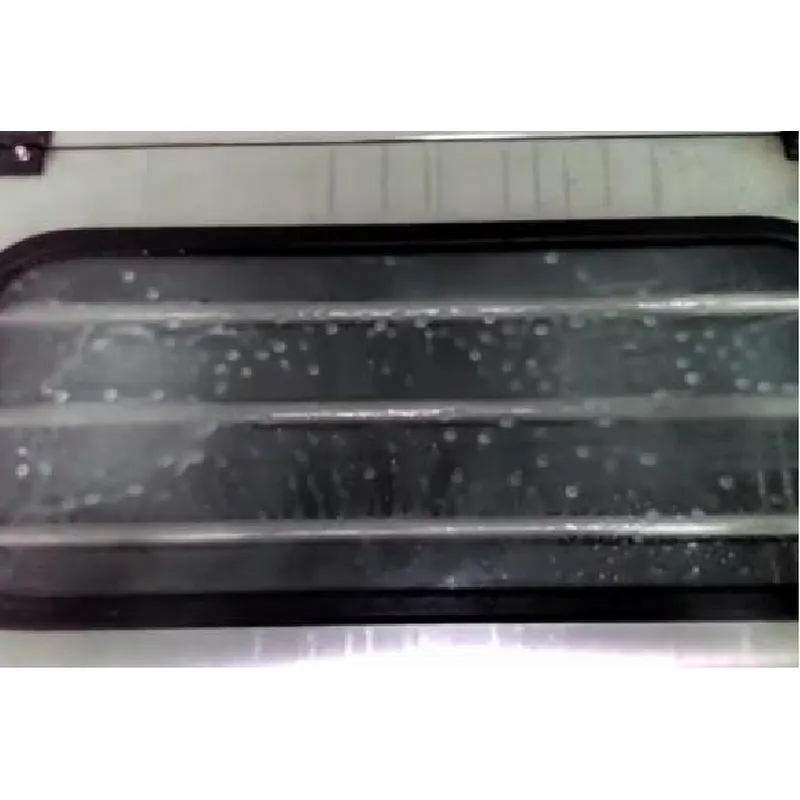

Airbubble&spraying agitation module
The jet cleaning module uses underwater jets and bubble agitation for thorough cleaning. The filtration system keeps wash liquids contaminant-free for extended use.
Cleaning Medium: Water -based cleaning solution/Deionized water
External Dimensions: 850(L)×900mm(W)×850mm(H)
Internal Dimensions: 710mm(L)×350mm(W)×405mm(H)
Internal Volume: 100L, only needs 80L liquid during operation
Filtration Accuracy: 100 -300μm bag filter
Heating Temperature: Adjustable from room temperature to 80° C
Heating Power: 3KW
Jet Pressure: 0.3MPa

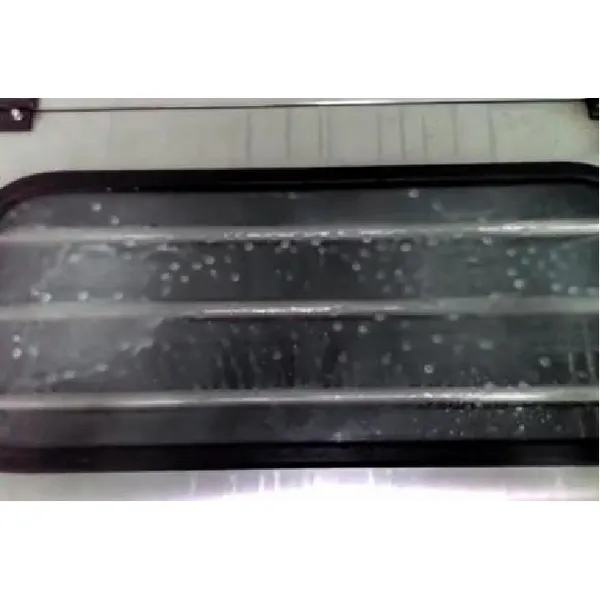

Airbubble&spraying agitation module
The jet cleaning module uses underwater jets and bubble agitation for thorough cleaning. The filtration system keeps wash liquids contaminant-free for extended use.
Cleaning Medium: Water -based cleaning solution/Deionized water
External Dimensions: 850(L)×900mm(W)×850mm(H)
Internal Dimensions: 710mm(L)×350mm(W)×405mm(H)
Internal Volume: 100L, only needs 80L liquid during operation
Filtration Accuracy: 100 -300μm bag filter
Heating Temperature: Adjustable from room temperature to 80° C
Heating Power: 3KW
Jet Pressure: 0.3MPa
Dynamic spraying module
The shower cleaning module uses high-pressure sprays to clean work pieces from all angles without missing any spots.
Cleaning Medium: Water -based cleaning solution/Deionized water
External Dimensions: 850(L)×900mm(W)×850mm(H)
Internal Tank Dimensions: 710mm(L)×350mm(W)×405mm(H)
Internal Tank Volume: 100L, reservoir tank 40L, only needs 40L liquid during operation
Filtration Accuracy: 100 -300μm bag filter
Heating Temperature: Adjustable from room temperature to 80° C
Heating Power: 2KW
Drying module
The recirculating hot air dryer uses ducted heated airflow and temperature sensor and digital temperature display for temperature control purposes.
Cleaning Medium: Water -based cleaning solution/Deionized water
External Dimensions: 850(L)×900mm(W)×850mm(H)
Internal Tank Dimensions: 710mm(L)×350mm(W)×405mm(H)
Internal Tank Volume: 100L, reservoir tank 40L, only needs 40L liquid during operation
Filtration Accuracy: 100 -300μm bag filter
Heating Temperature: Adjustable from room temperature to 80° C
Heating Power: 2KW
