The SME-5600D Batch-Type PCBA Cleaning Machine (also designated SCM5600D) is an off-line, energy-saving, batch-cleaning integrated machine from Southern Machinery. A single push of the start key automatically completes the full chemical clean → DI water rinse → hot air drying sequence inside one sealed cabinet.
It effectively removes residual rosin flux, water-soluble flux, no-clean flux and solder paste balls, plus other organic and inorganic residues from SMT / THT PCBAs — the cleaning step trusted in aviation, aerospace, medical, new-energy and automotive electronics production.
How a batch cycle runs
Boards sit in two 610x560x110mm stainless baskets that shuttle automatically back and forth while upper/middle/lower 360° rotating spray rods work the surfaces. Typical recipe: clean 10-20 min at 40-60°C, DI rinse 1-2 min x 3-5 times, hot air dry 20-30 min at 70-95°C — a finished batch in 40-60 minutes. On-line resistivity monitoring (0~18 MΩ) confirms rinse water quality through every cycle.
Specifications
| Item | Parameter |
|---|---|
| Cleaning basket size | 610mm(L) x 560mm(W) x 110mm(H) x 2 layers |
| Cleaning room (inner cabinet) | 640mm(L) x 560mm(W) x 520mm(H), stainless steel 304, 2 layers |
| Concentration tank capacity | 32L |
| Dilution tank capacity | 60L |
| Spray tank capacity | 18L |
| Spray tank heater power | 6KW |
| Solvent tank heater power | 9KW |
| Cleaning time | 0~99 min (adjustable) |
| Cleaning temperature (liquid) | Room temp - 75°C (adjustable) |
| Rinse time | 1-99 times / 1 min each |
| Rinse temperature (DI water) | Room temp - 75°C (adjustable) |
| Drying time | 0~99 min (adjustable) |
| Drying temperature | Room temp - 99°C (adjustable) |
| Drying heater | 6KW |
| Resistivity monitoring range | 0~18 MΩ |
| Spray pressure | 30 PSI - 90 PSI (adjustable) |
| Chemical liquid level filter | 0.22µm (solder paste, rosin, flux, contaminants) |
| DI water filter | 0.22µm (solder paste, rosin, flux, contaminants) |
| Water inlet / outlet / chemical inlet | 1-inch quick junction interface |
| Real-time pressure gauges | 3 PCS (nozzle / DI water / waste liquid) |
| Pump | 5.5KW |
| Air outlet size | Φ100(W) x 30mm(H) |
| Power source | AC380V 50HZ 65A / 0.45MPa~0.7MPa |
| Weight | 400Kg |
| Machine dimension | 1400mm(L) x 1350mm(W) x 1830mm(H) |
Source: Southern Machinery SCM5600D product catalog (English edition, downloadable below).
Product gallery

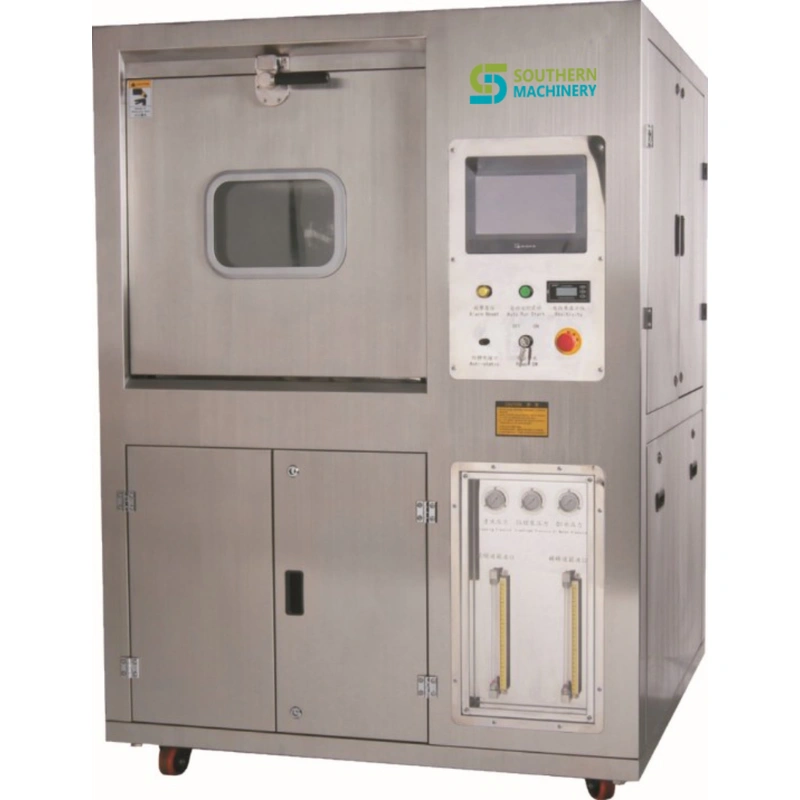

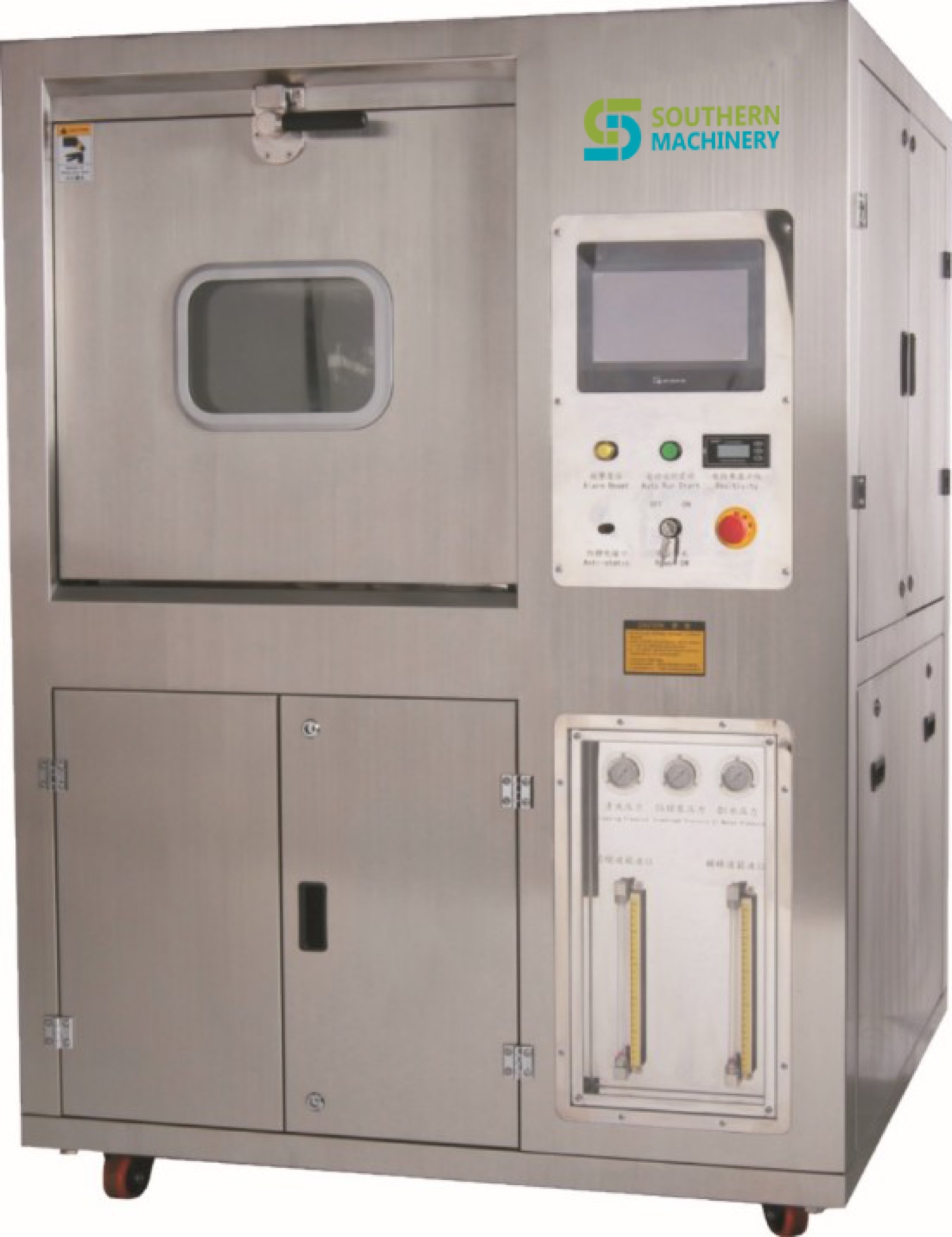

SME-5600D batch-type PCBA cleaning machine

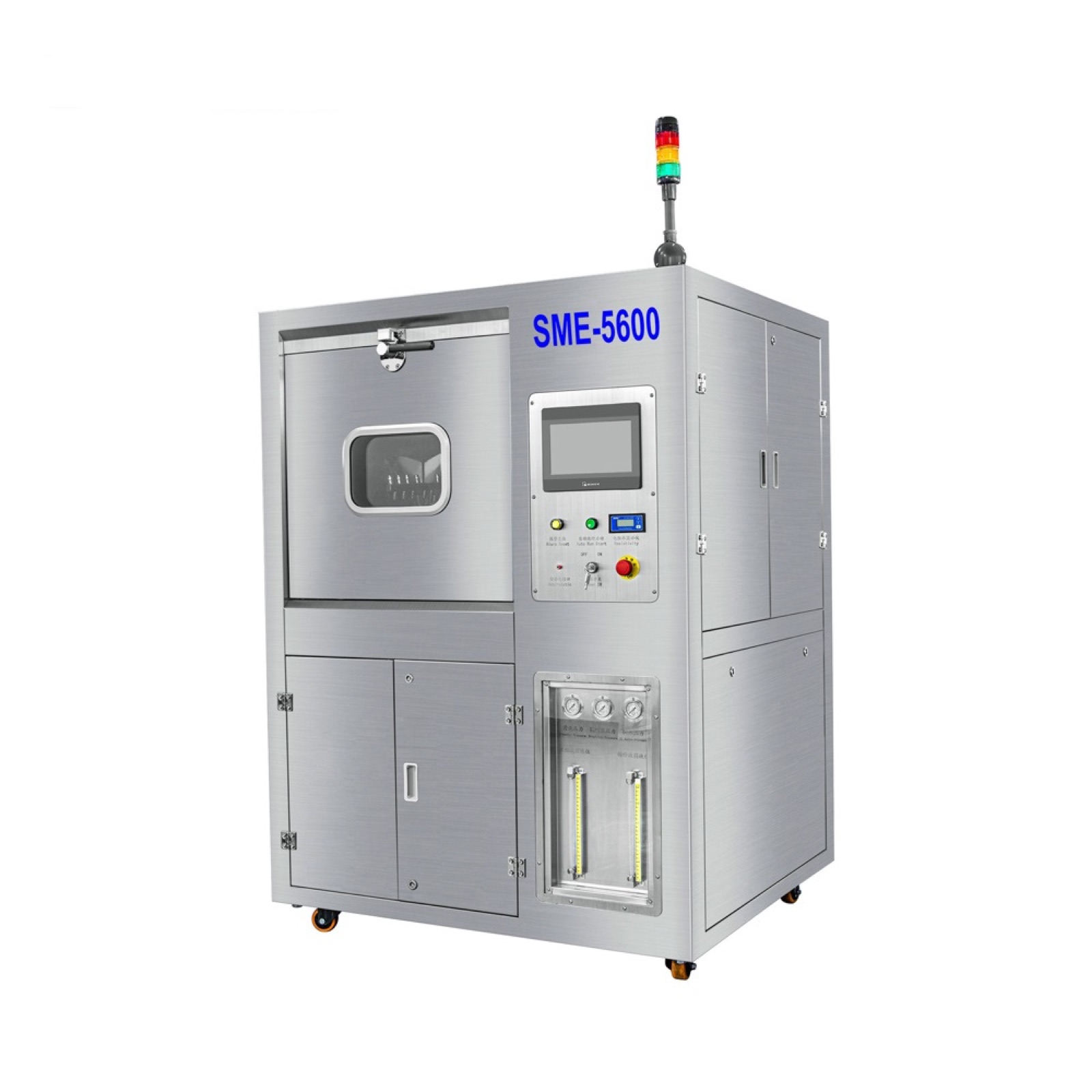

SME-5600 series offline cleaning machine

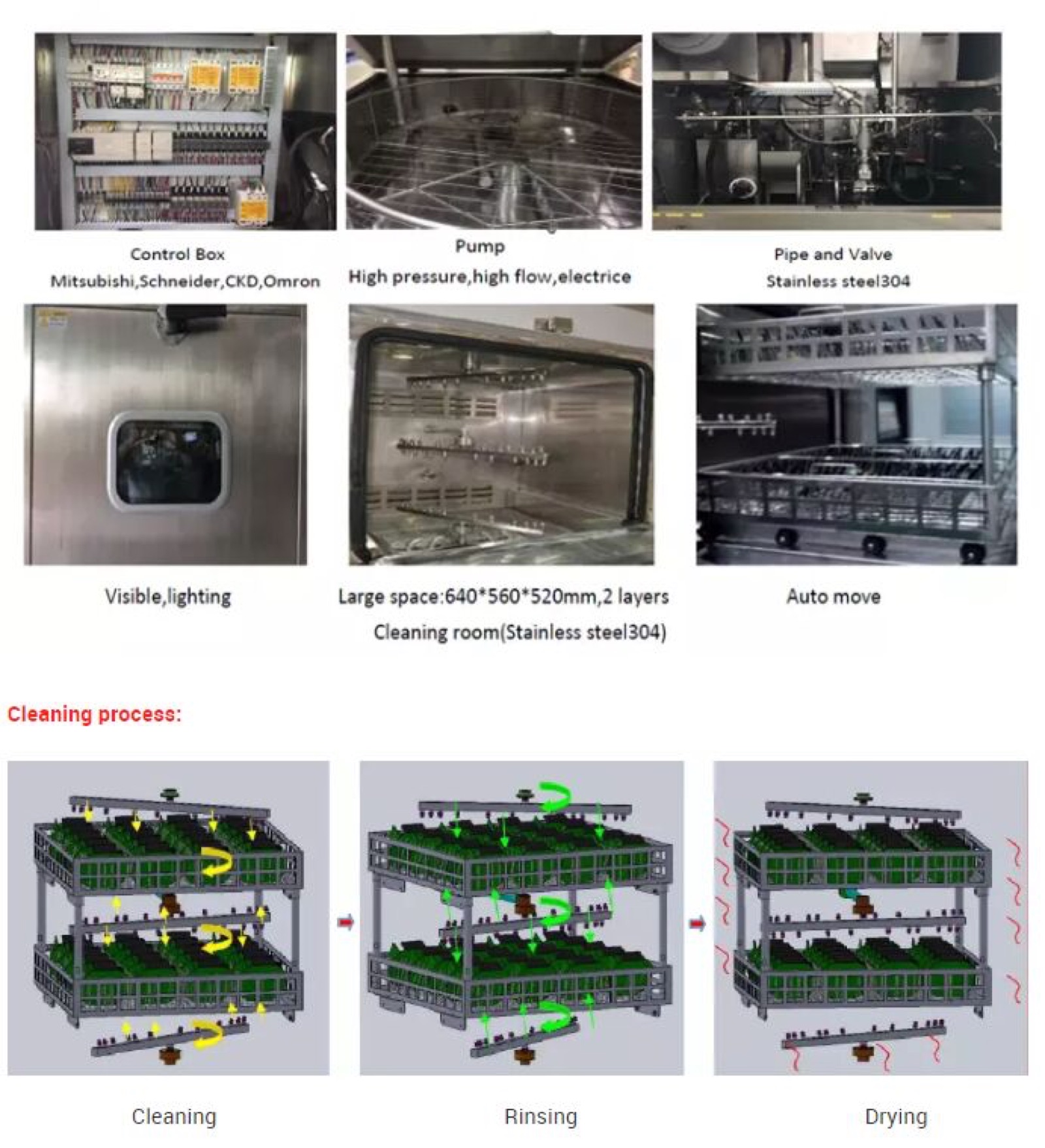

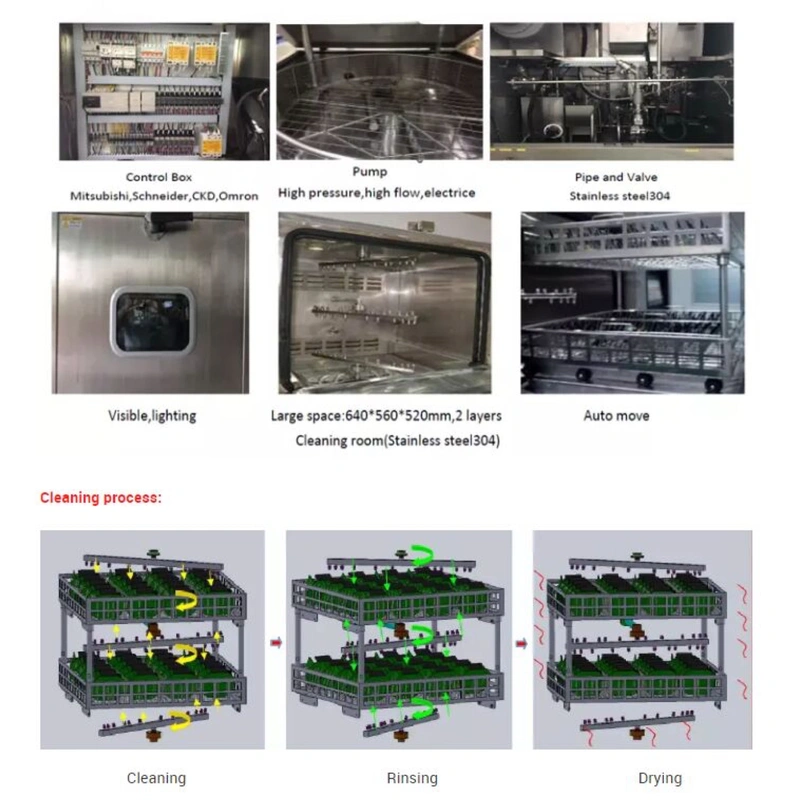

Key details: control box, pump, pipes, cleaning room and 2-layer baskets
