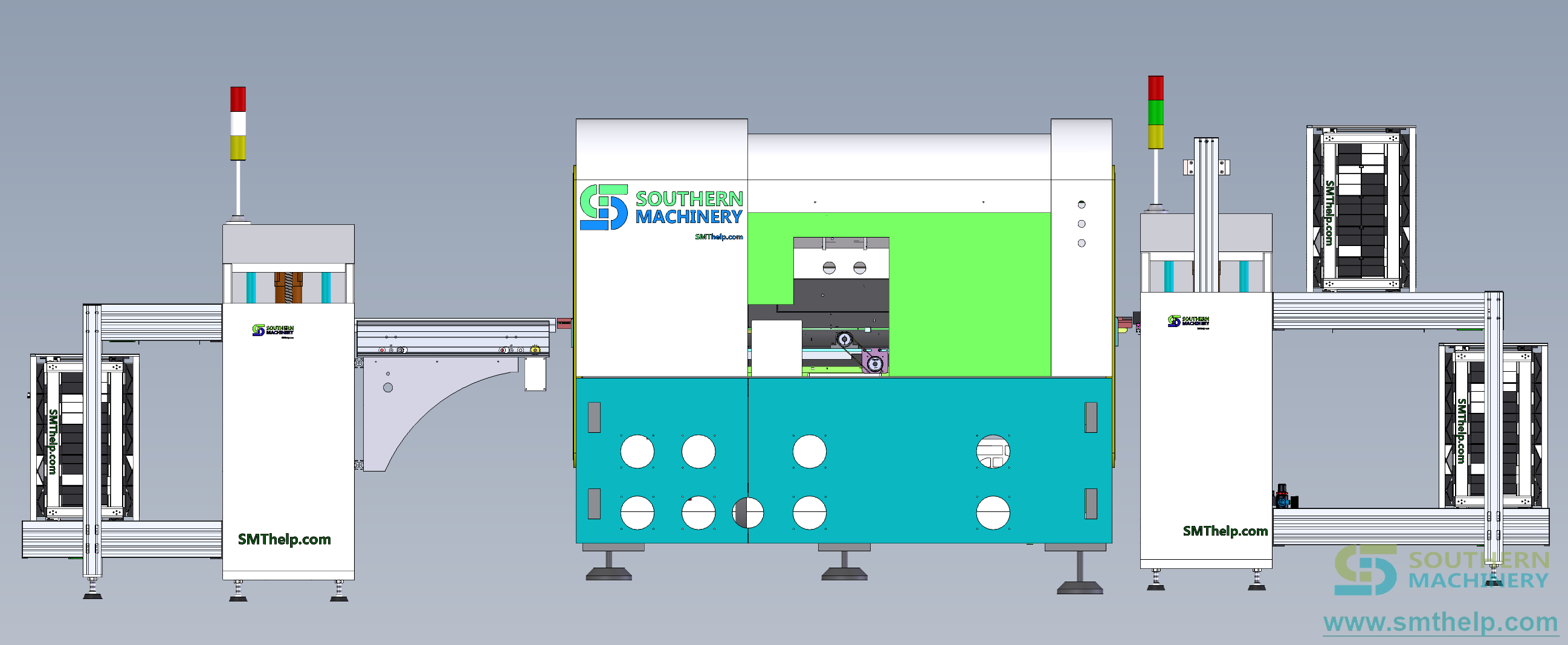

S7020 Series PIN Eyelet Terminal Insertion Machine

Benefits:
1. High precision and efficiency in PIN Eyelet Terminal  insertion
2. Easy to operate and maintain
3. Can handle a wide range of Electronic Components and PCB boards
4. Can be customized to meet specific production needs
5. Reduces labor costs and increases productivity
6. Improves product quality and consistency
7. Minimizes material waste and scrap
8. Compact design saves space in production area
9. Durable and reliable for long-term use
10. Provides a cost-effective solution for PIN Eyelet Terminal  insertion needs.


Description


Machine Specification:


Equipment size    1700mm*1300mm*1600mm (2 heads)

Material packaging     Terminal in bulk package or reel package

Speed    12000 CPH

PCB size    380mm*280mmm (enlarged size can be customized)

Number of insertion heads    2 insertion heads

terminal thickness    ≥0.5mm  ≤1.2mm

Vertical error    ≤0.8°

PCB requirements    The insertion hole is 0.5±0.1mm larger than the component lead

Insertion angle     360°( increment 1°)

Body distance    The distance between the components ≥ 2mm

Clinch     Inward clinching/Outward clinching

Feeding system    Vibration Bowl Feeder/Reel feeder

Motion accuracy     0.001mm/pulse

Programming function     Online visual programming, visual correction, EXCEL

Data import     USB interface import, manual entry

Power    Single 220V/AC, 50/60HZ, 2KVA

Equipment weight     1200KG
