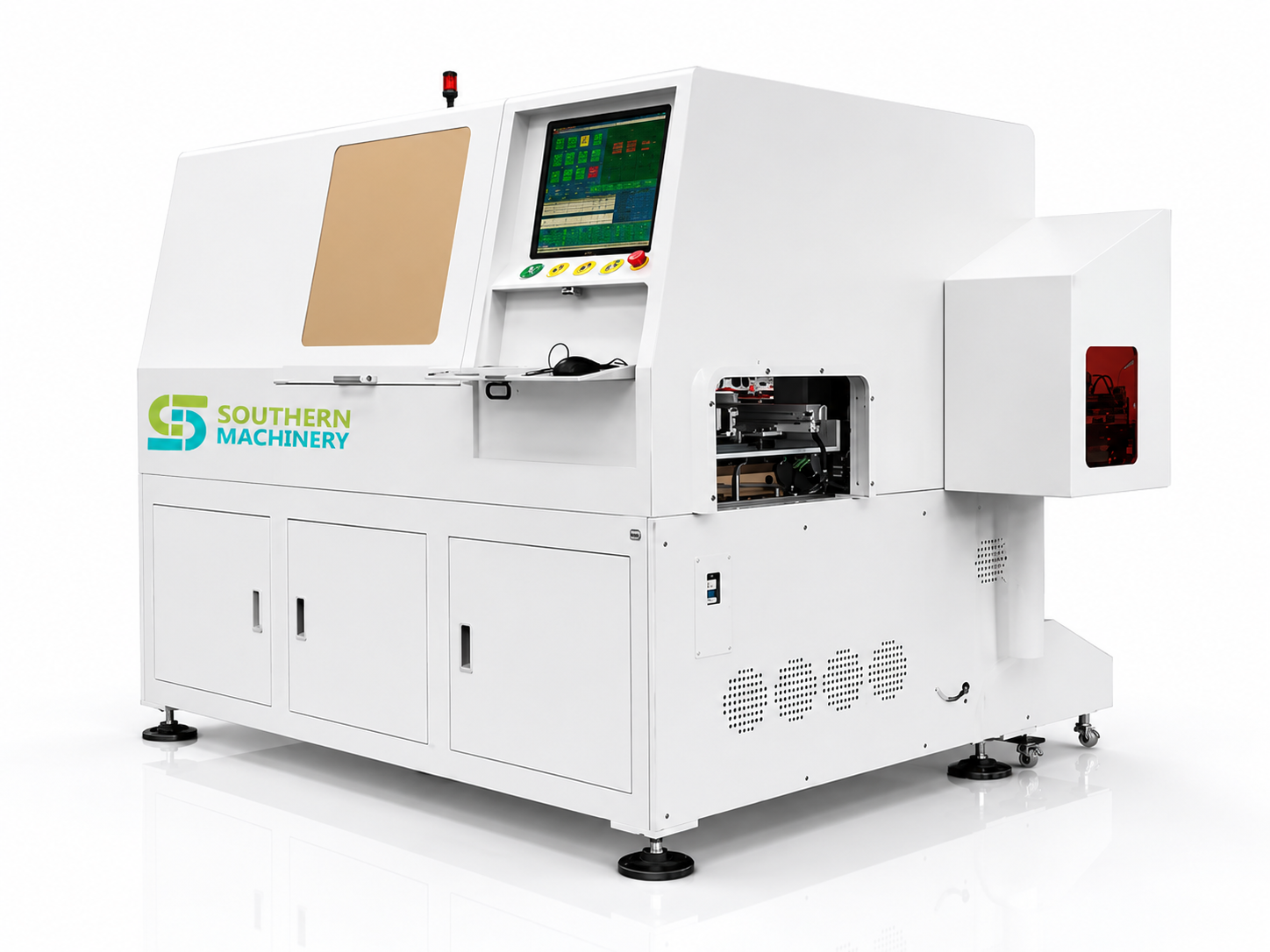

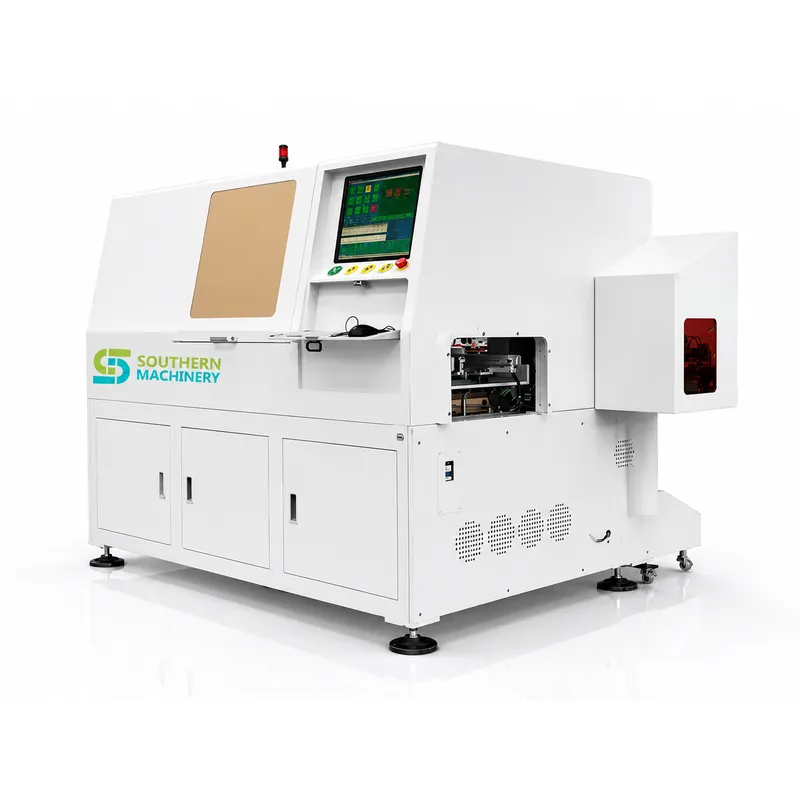

S4000 Automatic Axial Component Insertion Machine

The S4000 is an automatic axial component insertion machine designed for tape-packed resistors, diodes, jumper wires and other compatible axial-lead components.

It combines full servo-driven motion control, scalable feeder configurations, automatic PCB loading and a Windows-based control system to improve the speed, accuracy and consistency of THT PCB assembly.

Key Features:

• Rated insertion speed up to 20,000 CPH

• Typical actual production speed approximately 10,000 CPH

• Supports axial lead diameters from 0.3 to 0.8 mm

• Supports component lead spans from 5 to 20 mm

• Compatible with resistors, diodes and jumper wires

• Modular configuration with 5 to 60 feeder stations

• Full servo-driven motion control system

• Windows operating system with industrial computer

• EtherCAT bus motion control

• Compatible with MES production management systems

• Automatic PCB loading for production-line integration

• Drawer-style control box for convenient maintenance

The S4000 is suitable for electronics manufacturers and EMS factories requiring efficient, flexible and reliable automatic insertion of axial components.
