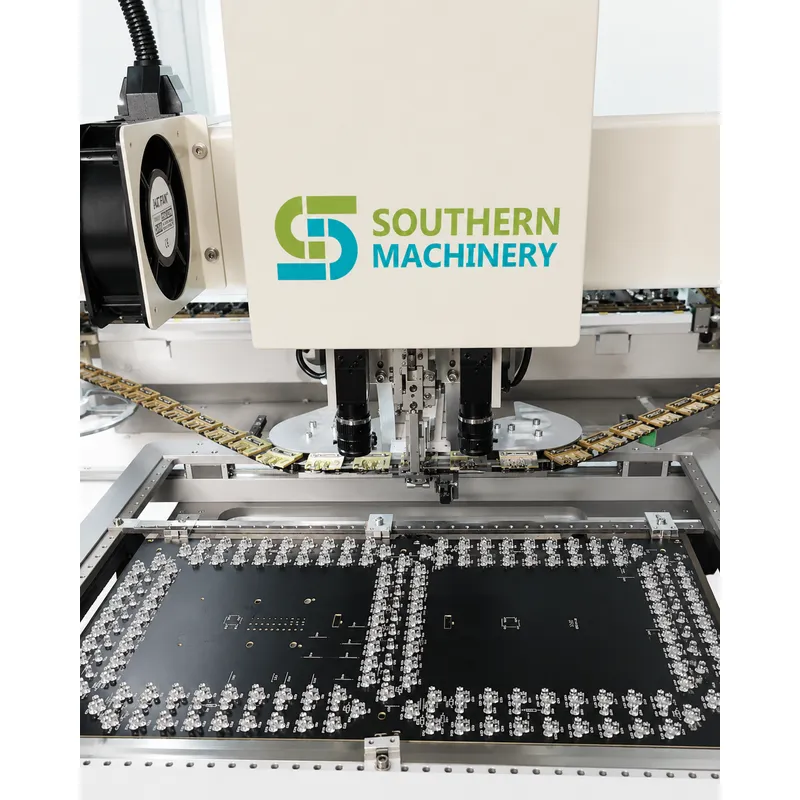

S3000 Radial insertion machine
1)Dual span 2.5/5.0mm
2) 18000 CPH,actual speed 10000 CPH
3) Insert direction:0° -360°, 1°increasment
4) Servo motor drived insertion head（13.0mm）and clinch
base "N" type. -
5) Components available:Capacitor, Transistor, LED lights, Key Switch, standard tape packed radial leads components
6)Core Machine Size (LxWxH)1800x1600x1800mm,
7) Machine Weight:1000KG -
8) Power supply:220V, AC (single phase) 50/60 HZ -
9) Air pressure:0.6MPA;0.3M3/MIN -
10) Circumstance temperature: 10° C. to 35° C. -
11) PCB Size:(Min)50 mm x50mm、(Max)400mm x 380mm -
12) PCB thickness:0.79-2.36MM -
13) Clinch Length:1.5-2.2MM -
14) Clinch degree: 10-35 degree -
15) Coordinate correction:Machine vision systems -
16)Non rotary table -
17) Machine vision caliberation systems
18) Control System:English or Chinese version interface
19) Southern Machinery platform software
20) LCD monitor
21) Indutrial-control computer
22) Feeder
