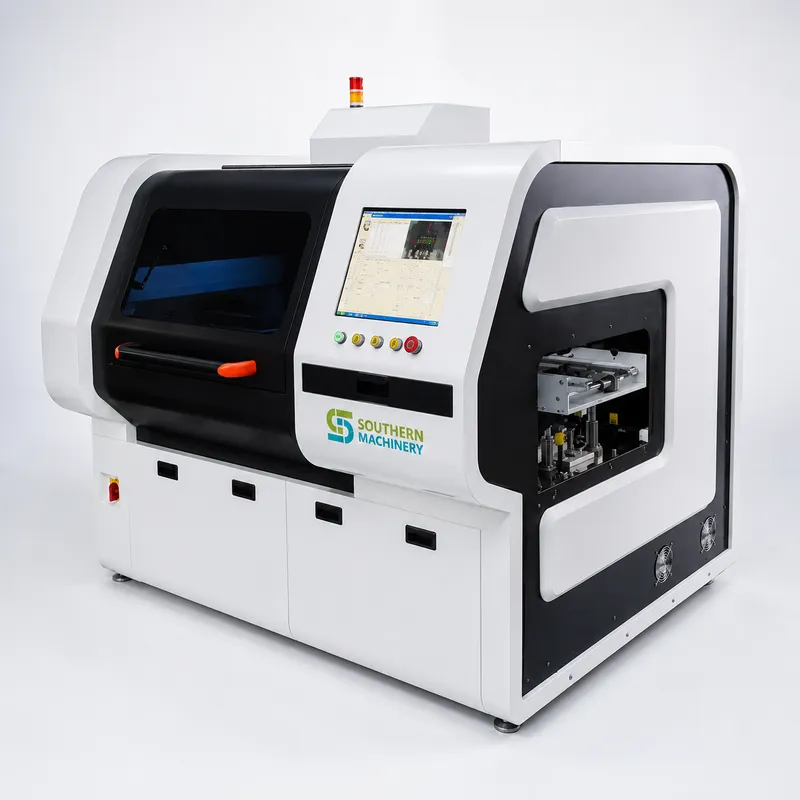

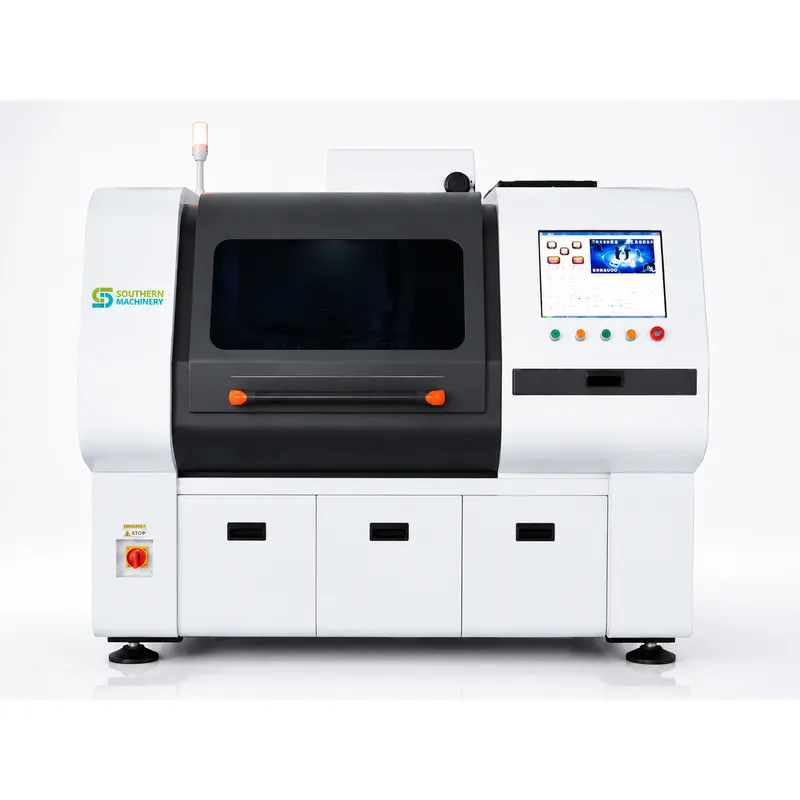

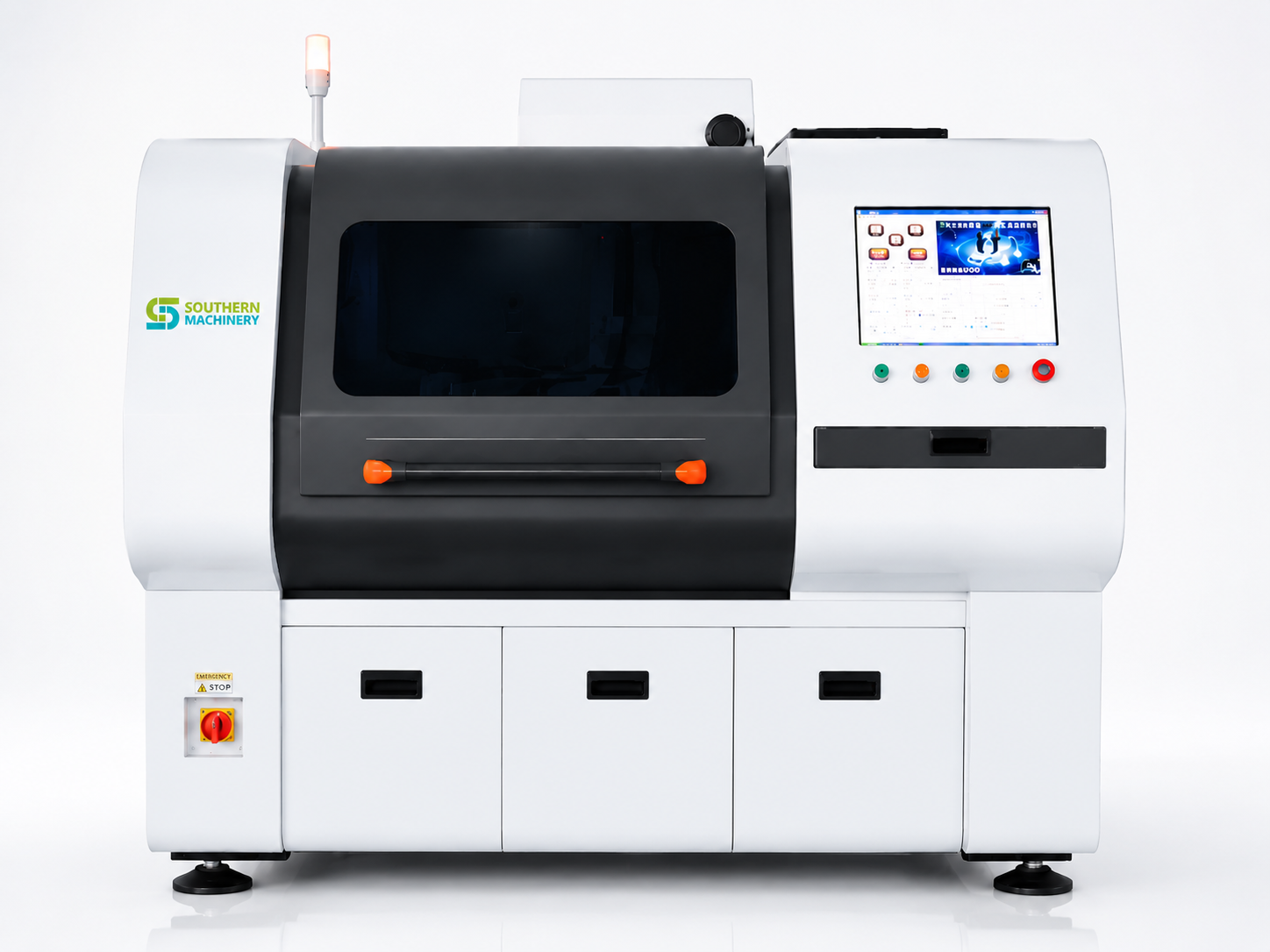

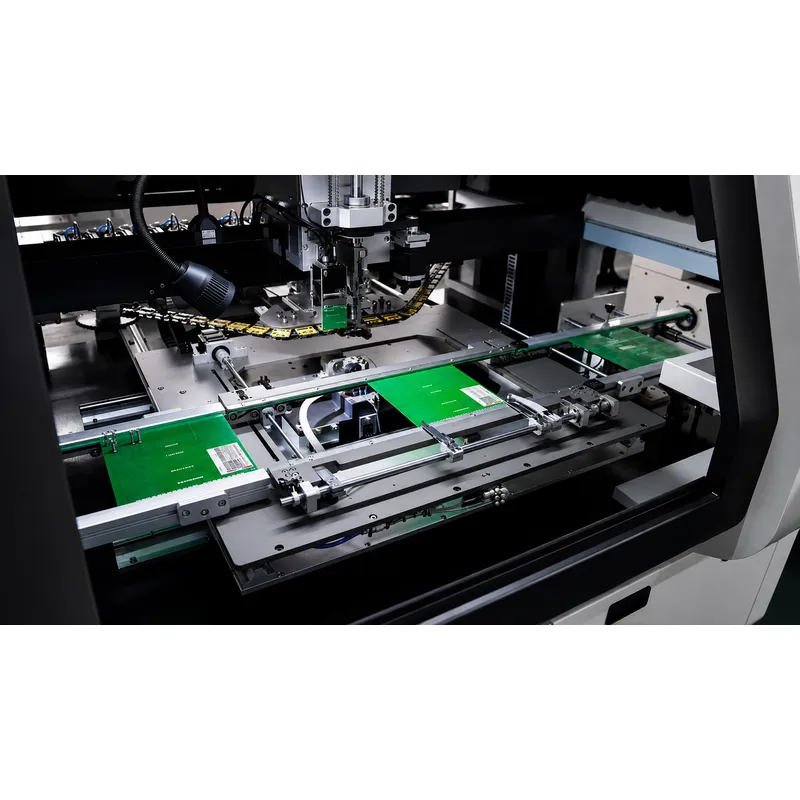

S3000 Automatic Radial Component Insertion Machine
The S3000 is an automatic radial insertion machine developed for the efficient insertion of tape-packed THT components into printed circuit boards. It is suitable for capacitors, transistors, resistors, LEDs, connectors and other compatible radial-lead components.
The machine integrates servo-driven insertion, machine vision correction, programmable insertion directions, automatic lead trimming and clinching. It is designed to improve insertion consistency, reduce manual assembly work and support flexible THT production.
Key Features
Typical actual insertion speed up to 10,000 CPH
Automatic insertion of tape-packed radial components
Supports 2.5, 3.5, 5.0, 7.5 and 10.0 mm lead spans
Compatible with dual, triple and quad-span components
Programmable component insertion direction
Servo-driven insertion mechanism

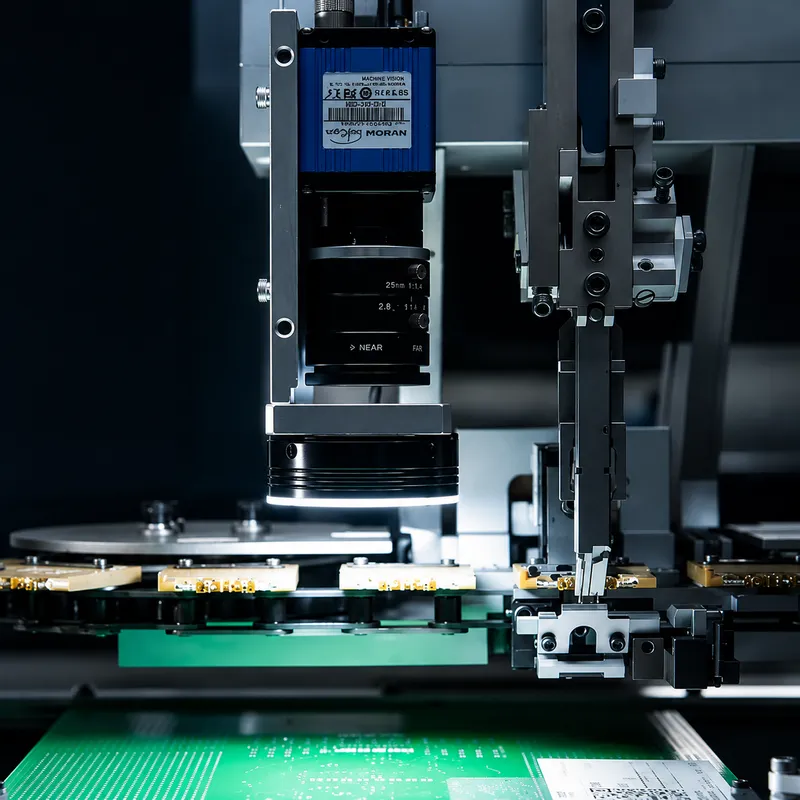

Machine vision system for coordinate correction

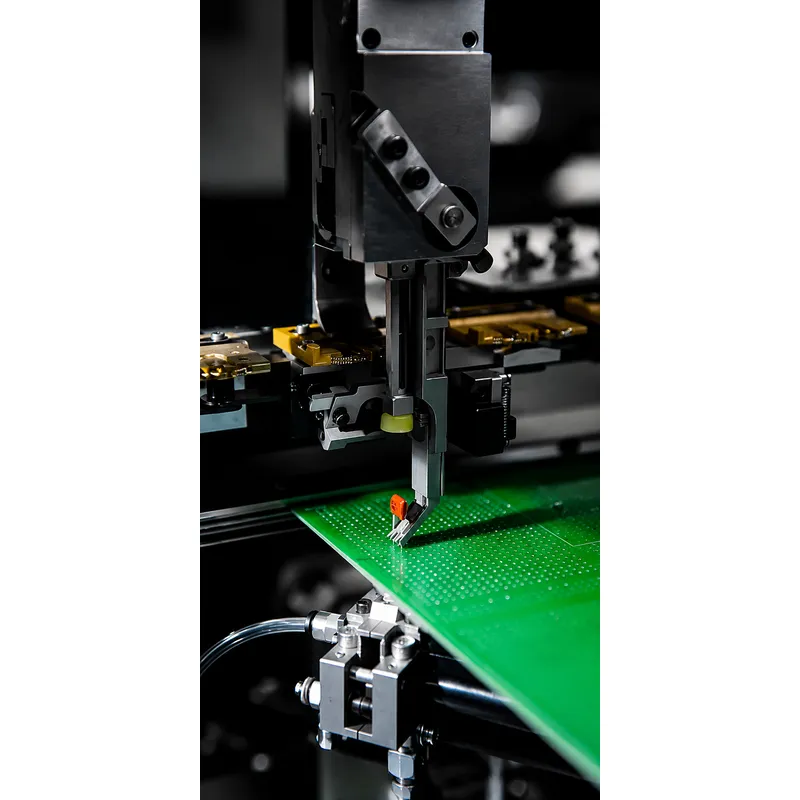

Automatic component lead trimming and clinching
Offline programming support

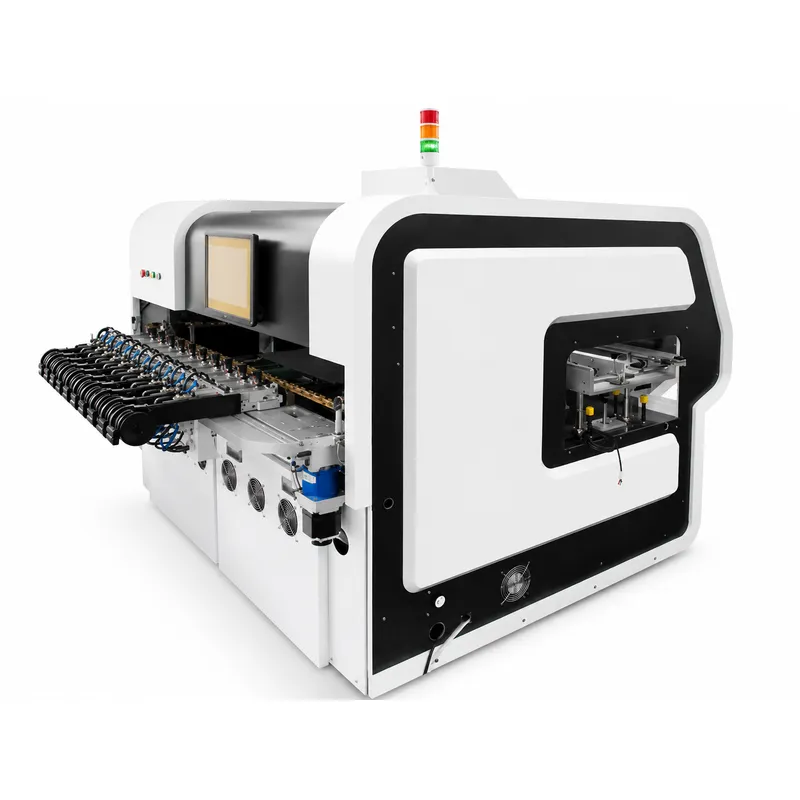

Recommended configuration of 10 feeder stations
Compatible Components
Radial capacitors
Transistors
Resistors
LED components
Connectors
Other compatible tape-packed radial-lead components
Component Specifications
| Item | Specification |
|---|---|
| Supported Lead Spans | 2.5 / 3.5 / 5.0 / 7.5 / 10.0 mm |
| Component Configuration | Dual, triple and quad span |
| Maximum Component Height | 20 mm |
| Maximum Component Body Diameter | 13 mm |
| Maximum Lead Diameter | 0.7 mm |
| Lead Trimming | Automatic trimming with configurable blade options |
| Feeder Configuration | 10 stations recommended; configuration depends on application |
Machine Functions
Machine vision coordinate correction
Servo motor-driven insertion
Automatic lead cutting and clinching
Programmable component orientation
Offline production program preparation
English-language machine control interface
Typical Applications
The S3000 is suitable for EMS factories and electronics manufacturers producing power supplies, LED lighting products, household appliances, industrial control boards, automotive electronics and other PCB assemblies containing radial THT components.
Application Evaluation
To confirm machine compatibility and prepare the correct configuration, please provide the PCB dimensions, PCB file, component list, component datasheets, required production capacity and available component samples.
Service and Support
PCB and component feasibility evaluation
Machine configuration support
Installation and operator training options
Remote technical support
Spare-parts and maintenance support
Contact Southern Machinery to request an S3000 application evaluation, technical datasheet or machine quotation.
