Specifications
| Model | S-WS350 B |
| Control Method | PC + PLC /Auto Add. Tin.(Option) |
| Conveyor Motor | 1P AC220V 90W |
| Conveyor Speed | 300-1800mm/Min |
| Direction | L-R / R-L |
| PCB size | 50-350 mm |
| Preheating length | 15KW,1800mm Three PID control |
| Preheating zone & tempreature | 3 zone ；Room temp~250℃ adjustable |
| Heating method | Infrared (hot air optional) |
| Cooling method | Centrifugal wind convection cooling knife up and down |
| Solder type | Lead free solder/common solder |
| Tin stove power | 9kw |
| Tin amount | Approx.320KG |
| Tin stove tempreature | Room temp~300℃、Control accuracy ±1-2℃ |
| Tempreature control | P.I.D+SSR |
| Machine control method | Siemens PLCcontrol +4.6 touching screen control |
| Flux capacity | Max5﹒2L |
| Flux flow | 10~100ml/min |
| Fluxing method | Japan MSC rodless cylinder + Japan Meiji A – 100 Sprayer |
| Power | 3 phase 5lines 380V(Can be suitable for 415V) |
| Start Power | Max.9kw |
| Normal operation power | Approx.2.5kw |
| Dimension size (L*W*H) | 3500x1400x1650MM |
| Weight | Approx.1200kg |
Assembly part list
| NO | Name | Brand | Quantity |
| 1 | PLC | Siemens | 1 SET |
| 2 | Computer | Dell | 1 SET |
| 3 | Guide rail | temperature resistant guide rail | 1 SET |
| 4 | Chain claws | Titanium alloy stamping parts 2.0mm thickening | 1 SET |
| 5 | Solid State Relays | Jiale | 6 PCS |
| 6 | Power supply system | Chint | 1 SET |
| 7 | Power Circuit Breaker | Chint | 10 PCS |
| 8 | Contactor | Chint | 3PCS |
| 9 | Intermediate relay | OMRON | 10 PCS |
| 10 | Switching power supply | MEANWELL | 1 PCS |
| 11 | Flux pump | SMC | 1 PCS |
| 12 | Inverter | Taiwan Delta | 3 PCS |
| 13 | Proximity switch | OMRON | 2 PCS |
| 14 | Photoelectric sensor | OMRON | 1 PCS |
| 15 | Transmission motor | OUTA | 1 PCS |
| 16 | Wave motor, | Tai Chuang | 1 PCS |
| 17 | Preheating hot air motor | Taiwan Sanyue | 1 PCS |
| 18 | Nozzle | Meiji, Japan | 1 PCS |
| 19 | Preheating zone heating | taizhan | 3 SET |
| 20 | furnace heating plate | taizhan | 9 PCS |
| 21 | Tin furnace protection temperature control table | OMRON | 1 PCS |
More pictures please click SMT THT Albums
Looking for 3D machine model please click SMT Machine 3D Drawing
Looking for SMT machine Catalog please click SMT Machine Catalog
Call to discuss SMT machine please click WhatsApp SMT
Email to SMT Specialist please click SMT Specialist
S-WS350B Wave Soldering Machine - Product Photos
Real machine photos from the Southern Machinery photo library.
S-WS350B Wave Soldering Machine - Working Videos
S-WS350B Wave Soldering Machine - Documents & Downloads
Matched from the Southern Machinery Product Catalog Board.
| Document | Type | Download |
|---|---|---|
| SWS350M Wave soldering machine.pdf | Download | |
| S-WS350B-- PC Wave Soldering Machine User Manual.pdf | Download | |
| S-WS350 wave soldering machine.pdf | Download |
S-WS350B Wave Soldering Machine - Product Photos
Real machine photos from the Southern Machinery photo library.
Wave soldering pot

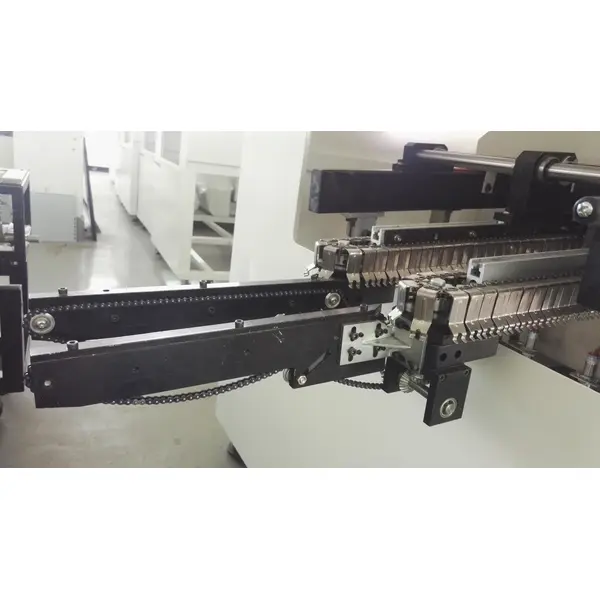

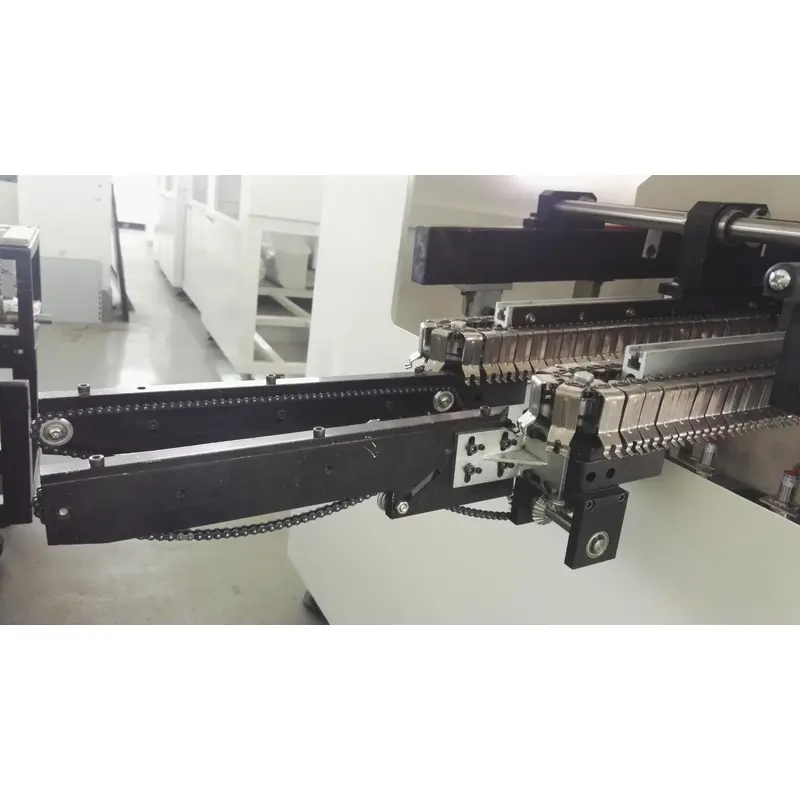

Wave Soldering Finger
Wave soldering tray 1
Wave soldering tray 4

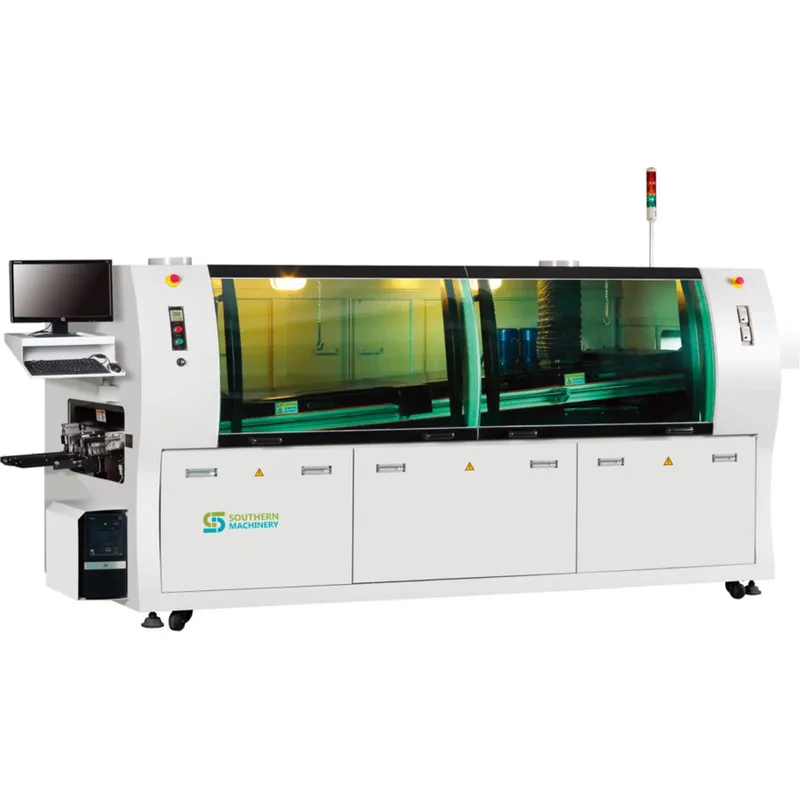

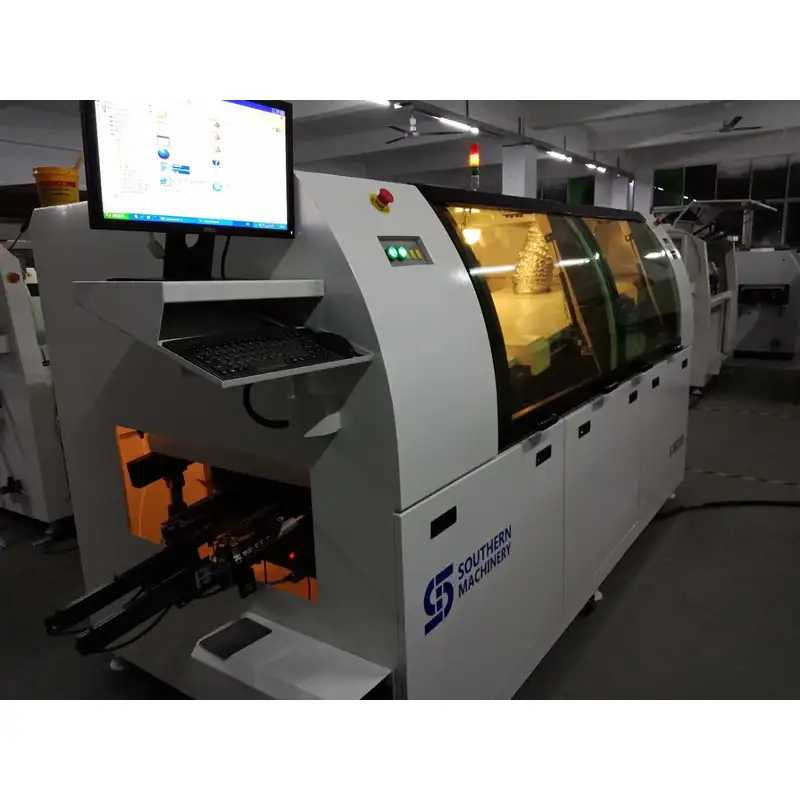

Wave soldering machine
