S-200V: Tiny but Mighty, 2-Head Pick and Place Punches Above Weight

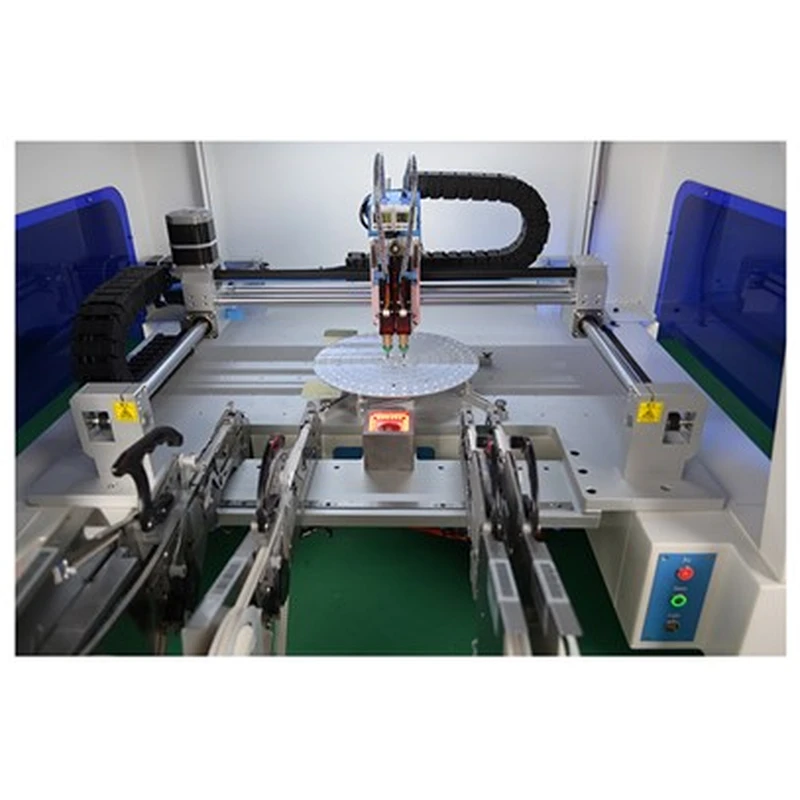

S-200V 2 heads small pick and place machine

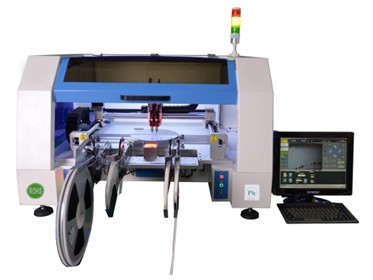

S-200V is a classic dual-head SMT pick and place machine. It has high precision, a reasonable mechanical design, easy operation, stability, adaptability to air-operated feeders, an automatic vision system, and automatic material shortage detection. It is suitable for mounting most SMD components like 0402, 0603, 0805, 1206, 1210, 3528, 5050, SOP, QFN, etc. S-200V has an integrated computer and driver in a drawer for convenient maintenance. The dismantled chassis allows for easy handling. The high-definition industrial camera precisely identifies 0402, 15*15mm and other electronic chips. The intelligent re-mounting design enables continuous mounting without stops in case of pick failures. It records and re-mounts failed picks to improve efficiency. The component auxiliary box allows for precise component programming and position revisions. The user-friendly software offers free lifetime upgrades.S-200V is a dual-head SMT pick and place machine with high precision, stability, and adaptability. Its reasonable design, easy use, and intelligent functions make it suitable for mounting most SMD components. The integrated computer and driver in a drawer facilitate maintenance. The dismantled chassis enables convenient operation. The high-definition industrial camera precisely identifies various components. The intelligent re-mounting design improves efficiency. The component auxiliary box allows for accurate programming and revisions. The customer-oriented software is freely upgradable for life. S-200V is an all-round dual-head SMT pick and place machine. Considering all factors, it offers high cost performance and is a wise choice.

For more information, please see PDF attachment and details below.

Feature:

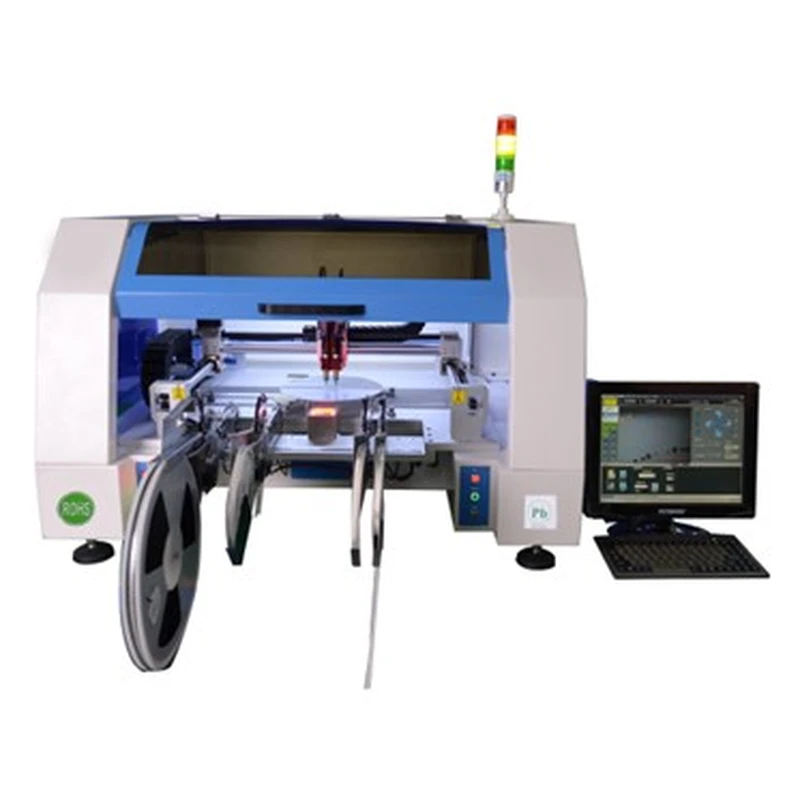

S-200V is the classic of desktop dual-head SMT pick and placement machine. High precision, more reasonable mechanical design, easy operation, stable running, adapting air-operated feeder, automatic vision system, automatic detection materials shortage. Suitable for mounting most of the SMD components, such as 0402 0603 0805 1206 1210 3528 5050 SOP QFN, etc.

Drawer type computer and driver integrated, could pull out lightly, convenient for later maintenance.
Disassembled chassis, easy to handling.

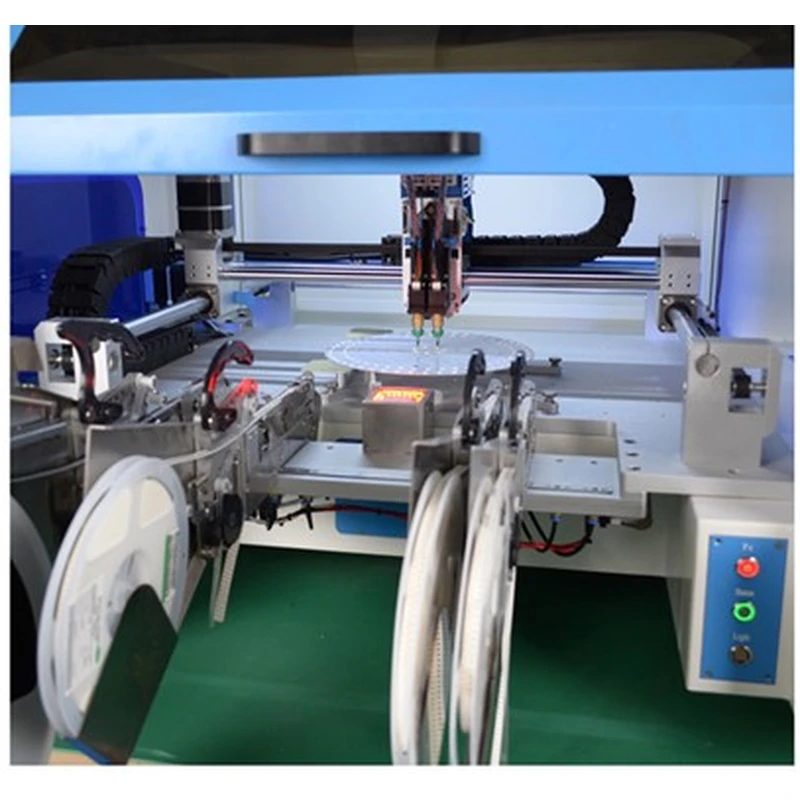

HD industrial camera, precisely identify 0402, 15*15mm and other electronic chips.
Intelligent remounting design, when pick materials failed, software will instruct to continue mounting no-stop, record and unify remounting. It could improve the mounting efficiety.
Component auxiliary box design, make components programming and position revising more precisely.
Software is easy to understand and use, free upgrade permanently.

Specifications：

Model	S-200V
Mac Circuit Board Area	295*420mm
XY Max Movement Range	530*550mm
Z Axis Max Movement Range	20mm
Max Mouting Speed	6000cph
Avarage Mounting Speed	5000cph
Positioning Accuracy	0.01mm
Nozzle Buffering Range	8mm
Power Supply	AC220V,50HZ
Compressed Air	0.5-0.7Mpa
Avarage Power	300W
Support Feeding Method	Belt type feeder, tube feeding tray IC
Applicable Components	0402,0603,0808,1206,diodes, transistors, SOT, QFM(9*9mm), etc
Feeder No.	25
Moter	Stepper Moter
Motion Driving System	High speed digital hig pressure driver
Component Angle	0-360°, synchronized rotation in motion
Programming Mode	Point-to-point programming, visual programming, etc
Vision Operating System	Built-in PC, automatically recognize, correct and remount
X/Y Running Mode	A new generation of linear interpolation linkage
Air Source	Reversal positive and negative pressure switch
Visual Programming Camera	Ultra high pixel color infrared
Visual Display	15" Color HD display
Weight	168KGS
Dimensions	1045mm850mm650mm
