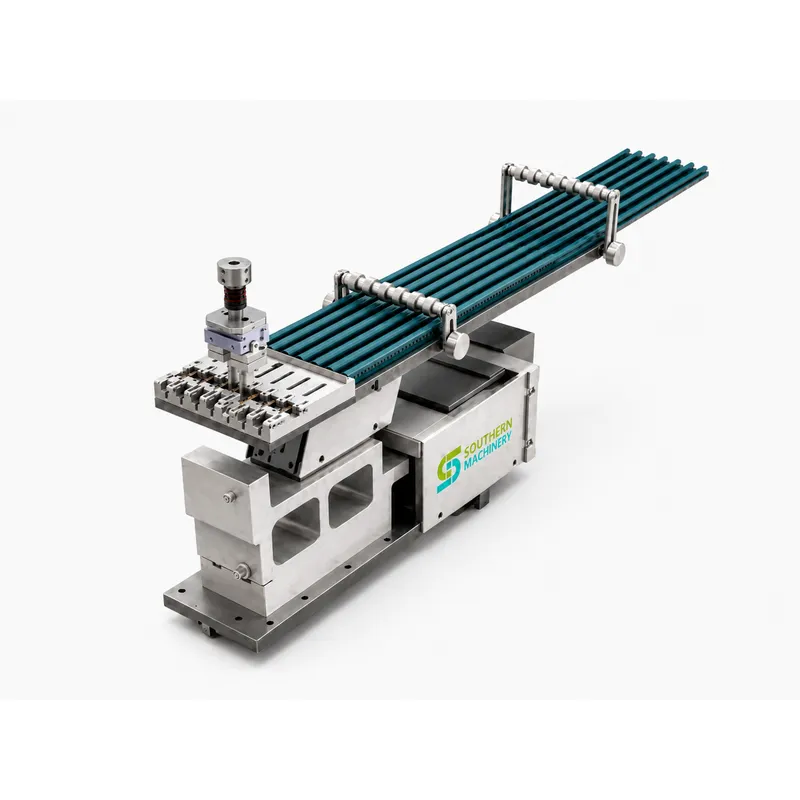

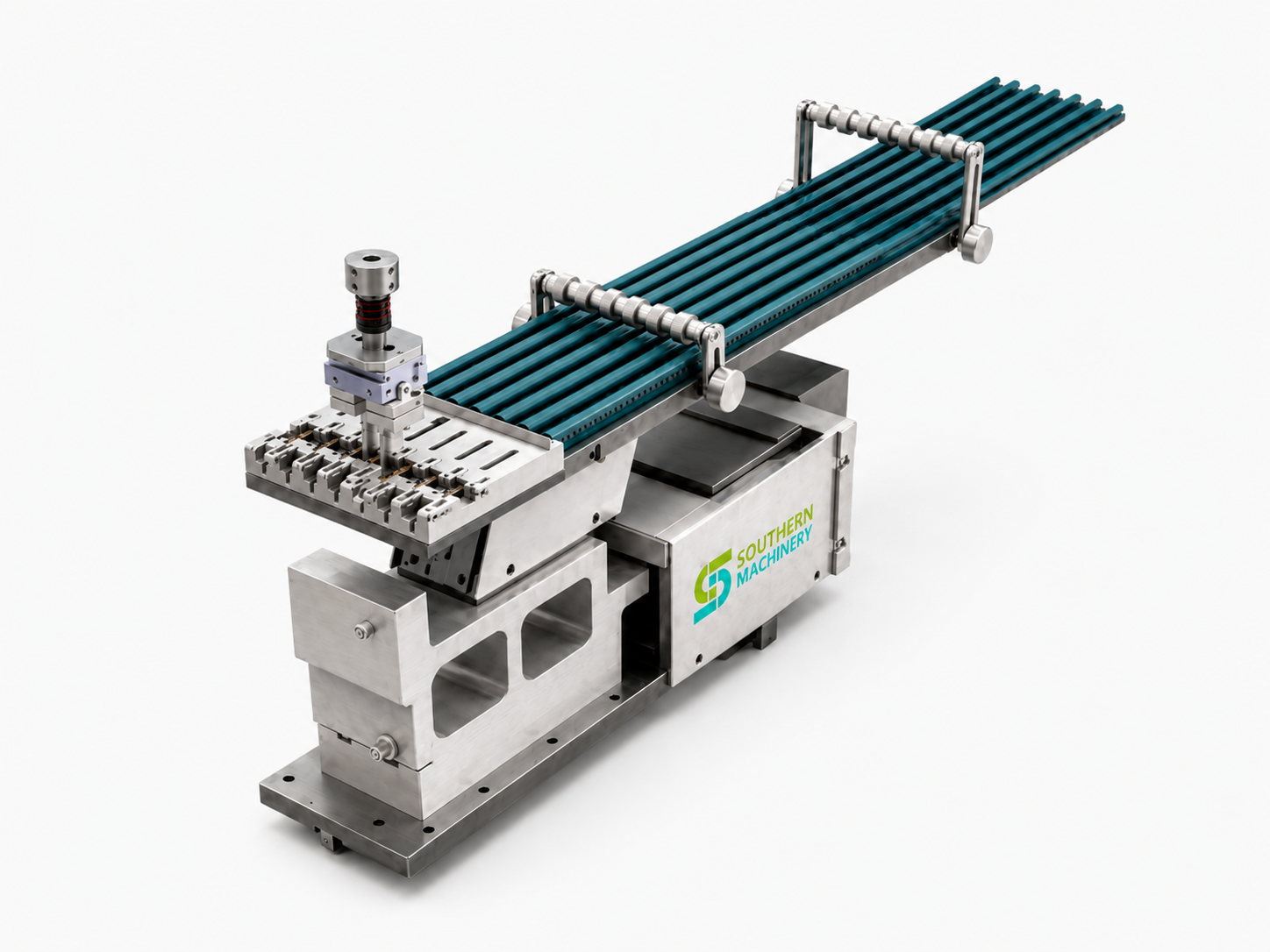

VTF-1007 7-Lane Vibratory Tube Feeder for SMT Machines
The VTF-1007 7-Lane Vibratory Tube Feeder is designed for feeding tube-packed electronic components into SMT pick-and-place machines. It provides a compact solution for components that are supplied in tubes rather than tape reels.
Typical applicable components include ICs, LEDs, transistors, capacitors, safety capacitors and other compatible tube-packed electronic parts.
Key Features
7-Lane Feeding:Supports up to 7 component tubes for flexible SMT material feeding.
Fast Feeding Cycle:Reference cycle time is ≤0.8 second for efficient component supply.
Compact 110 mm Width:The narrow body design helps save installation space beside the SMT machine.
Vibration Feeding Control:Uses a vibration amplifier to control component movement through the tubes.
Multiple Component Applications:Suitable for ICs, LEDs, transistors, capacitors, safety capacitors and other compatible tube-packed components.
SMT Machine Integration:Mechanical height and communication can be matched according to the requirements of Panasonic, JUKI, FUJI, ASM, Universal and other SMT machines.
Stable Construction:The feeder is mainly manufactured from steel and aluminum alloy to provide structural stability and long service life.
Technical Specifications
| Model | VTF-1007 |
|---|---|
| Feeder Type | 7-lane vibratory tube feeder |
| Maximum Tube Capacity | 7 tubes |
| Applicable Components | ICs, LEDs, transistors, capacitors, safety capacitors and other compatible tube-packed components |
| Machine Dimensions | 460 × 110 × 173 mm |
| Power Supply | 110 / 220 V |
| Cycle Time | ≤0.8 second |
| Control Method | Vibration AMP |
| Reference Width | 110 mm |
| Main Construction | Steel and aluminum alloy |
Typical Applications
IC tube feeding
LED tube feeding
Transistor and triode feeding
Capacitor feeding
Tube-packed electronic component feeding
SMT pick-and-place machine material supply
SMT Machine Compatibility
The VTF-1007 can be configured according to the mechanical height and communication requirements of the target SMT machine. Reference compatible brands include Panasonic, JUKI, FUJI, ASM and Universal.
Customization
Final mechanical matching, communication interface and component compatibility should be confirmed according to the SMT machine model and actual component tube.
Configuration Notice:Product specifications are based on the supplied reference material. Final configuration should be confirmed according to the actual application.
