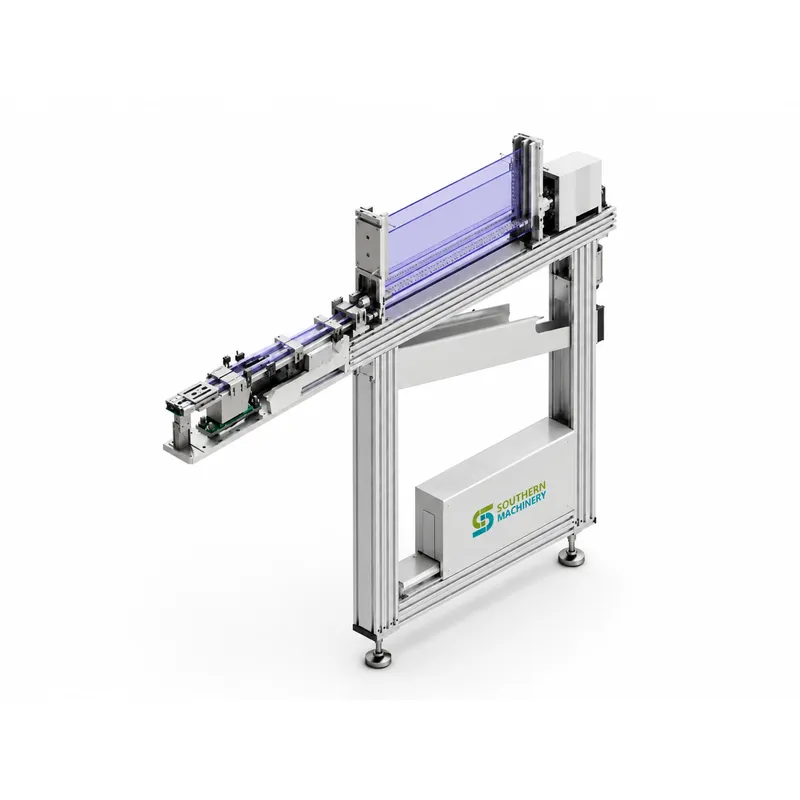

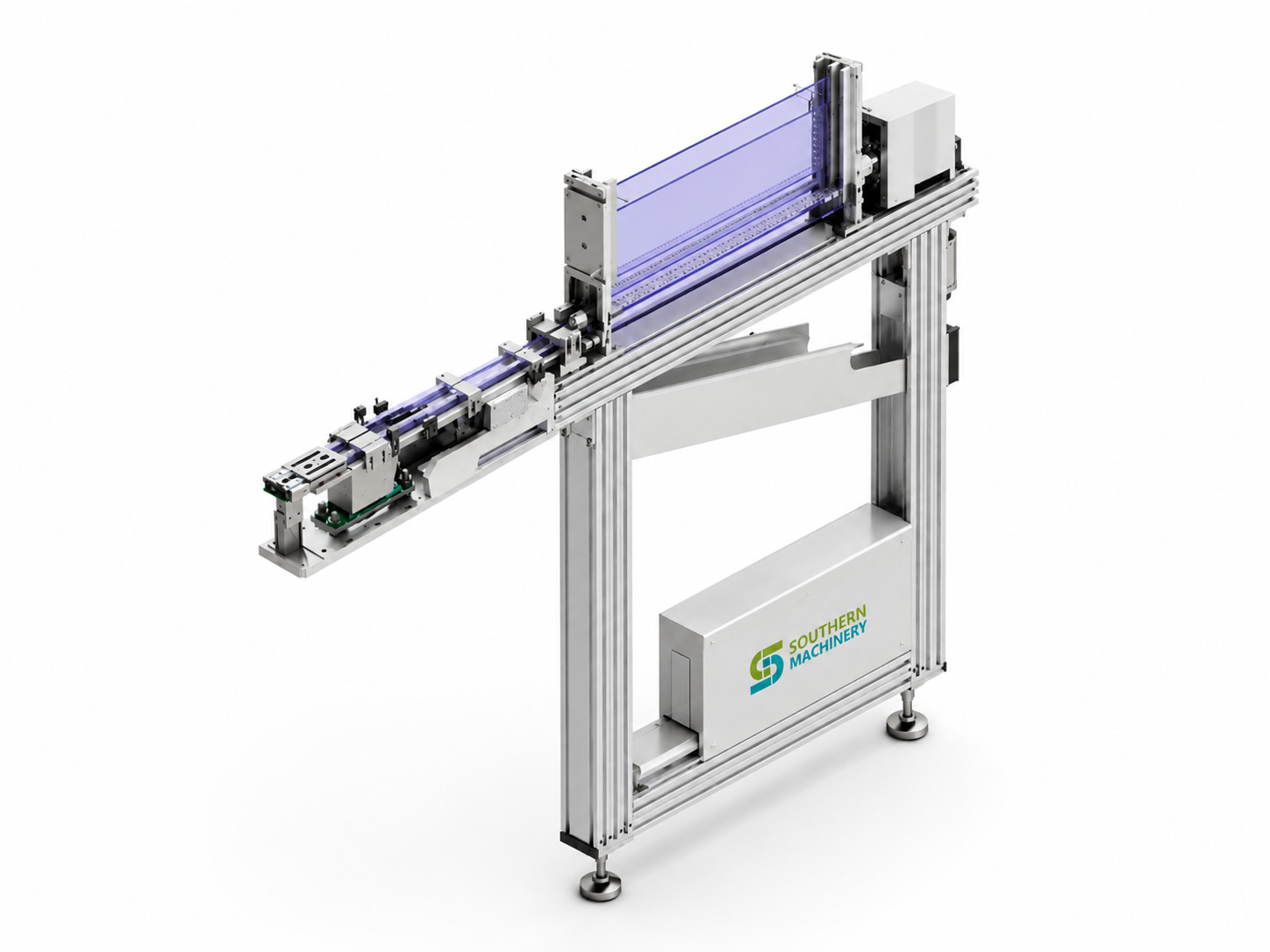

STF-1002 Dual-Lane Stacked Tube Feeder for SMT Machines
The STF-1002 Dual-Lane Stacked Tube Feeder is designed for feeding tube-packed electronic components into SMT pick-and-place machines. Its stacked tube storage structure increases tube capacity while maintaining a compact machine-side footprint.
The feeder can be used for components such as capacitors, safety capacitors, ICs, keys, transistors, LEDs and other compatible tube-packed electronic parts.
Key Features
Dual-Lane Feeding: Dual-lane design supports stable and flexible component feeding.
Stacked Tube Storage: Supports up to 40 component tubes in the reference configuration.
Fast Cycle: Reference feeding cycle time is ≤0.8 second.
Compact 80 mm Width: Narrow body design helps save SMT machine installation space.
PLC and Sensor Control: Automatic feeding is managed through PLC and sensor detection.
Wide Component Compatibility: Suitable for ICs, LEDs, transistors, capacitors, safety capacitors, keys and other tube-packed components.
SMT Machine Integration: Mechanical height and communication can be matched according to the target SMT machine.
Stable Construction: Mainly manufactured from steel and aluminum alloy for structural stability and long service life.
Technical Specifications
| Model | STF-1002 |
|---|---|
| Feeder Type | Dual-lane stacked tube feeder |
| Maximum Tube Capacity | 40 tubes |
| Applicable Components | ICs, LEDs, transistors, capacitors, safety capacitors, keys and compatible tube-packed parts |
| Machine Dimensions | 1460 × 80 × 1148 mm |
| Machine Width | 80 mm |
| Power Supply | 110 / 220 V |
| Cycle Time | ≤0.8 second |
| Control Method | PLC and sensors |
| Main Construction | Steel and aluminum alloy |
Typical Applications
IC tube feeding
LED tube feeding
Transistor feeding
Capacitor and safety capacitor feeding
Key and switch component feeding
SMT pick-and-place machine material supply
SMT Machine Compatibility
The STF-1002 can be mechanically matched and configured for communication with Panasonic, JUKI, FUJI, ASM, Universal and other SMT machines according to the actual project requirements.
Customization
Final tube compatibility, mechanical height and communication configuration should be confirmed according to the SMT machine model and actual component tube.
