How you Verify SMT component?
Easy operation:
1.Reset the barcode reader
*Place the reader with an angle till both
red and green light on
2.Scan the correct barcode
*Scan the correct barcode to green light on
3.Scan the next barcode to verify
*If same barcode as before, green light on
*If wrong barcode as before, red light on with viberration 3 time
| Scan mode | Trigger |
| Light Source | 650nm visible laser diode |
| Scan Pattern | Mongline scan |
| Scan Rate | 74 scans per second |
| Depth of Field | 0 ~ 750 mm |
| Scan Width | 5 ~ 300 mm |
| Scan Angle | Skew ±60°, Pitch ±45° |
| Bit Error Rate | 1/10 million |
| Resolution | 4mil @ PCS 90% |
| Print Contrast | 30% @ UPC/EAN 100% |
| Indicators | LED, Buzzer |
| Decoding Capability | UPC-A,UPC-E,EAN8,EAN13,Industrial 2 of 5, Code128,EAN128,Code39,Code93,Codabar125, China Postal Code, etc. |
| Interface Supported | USB, RS232, PS/2 Keyboard |
| Electrical | |
| Input Voltage | 5V DC ± 5% |
| Operating Current | 50 mA typical, max. 120mA |
| Standby Current | 30 mA |
| Laser Safety | Standard Class 2 for laser products |
| Electrical Safety | EN50081 |
| Physical | |
| Scanner Dimensions (mm) | 170 x 88 x 70 (without cable) |
| Scanner Weight | 208 g (without cable) |
| Housing Material | ABS, PC, TE, |
| Cable | Straight 2m length |
| Environmental | |
| Operating Temperature | -20°C ~ 45°C |
| Storage Temperature | -20°C ~ 45°C |
| Operating Humidity | 5% to 95% relative humidity, non-condensing |
| Ambient Light Immunity | Sunling Max. 3,000 Lux |
| Dustproof Waterproof | IEC529,IP42 |
| Drop Durability | Designed to withstand 2M drop to concrete ground |

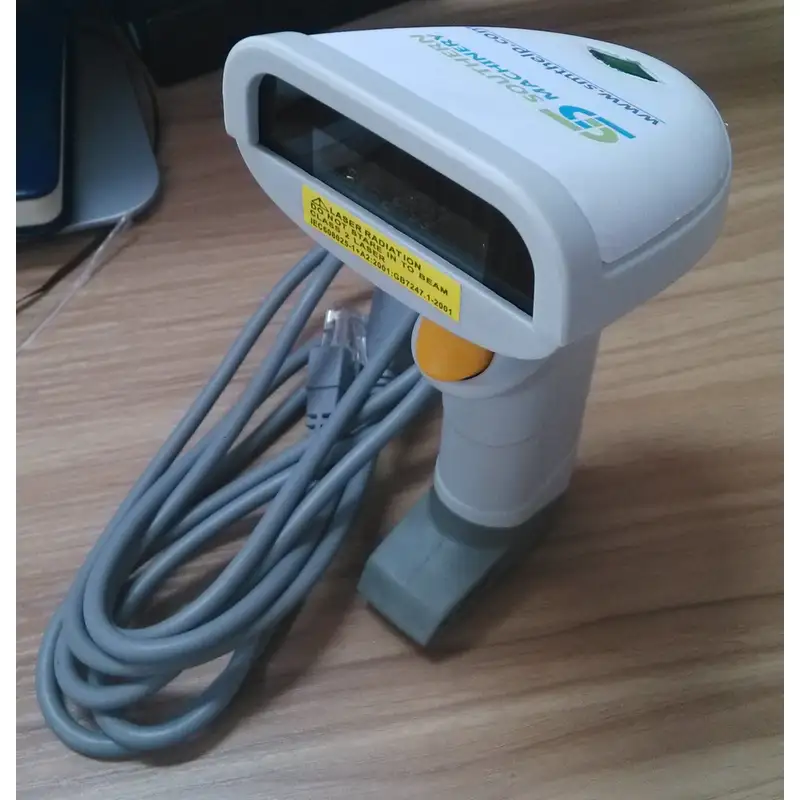

Barcode Reader from Xiaochan Liang
