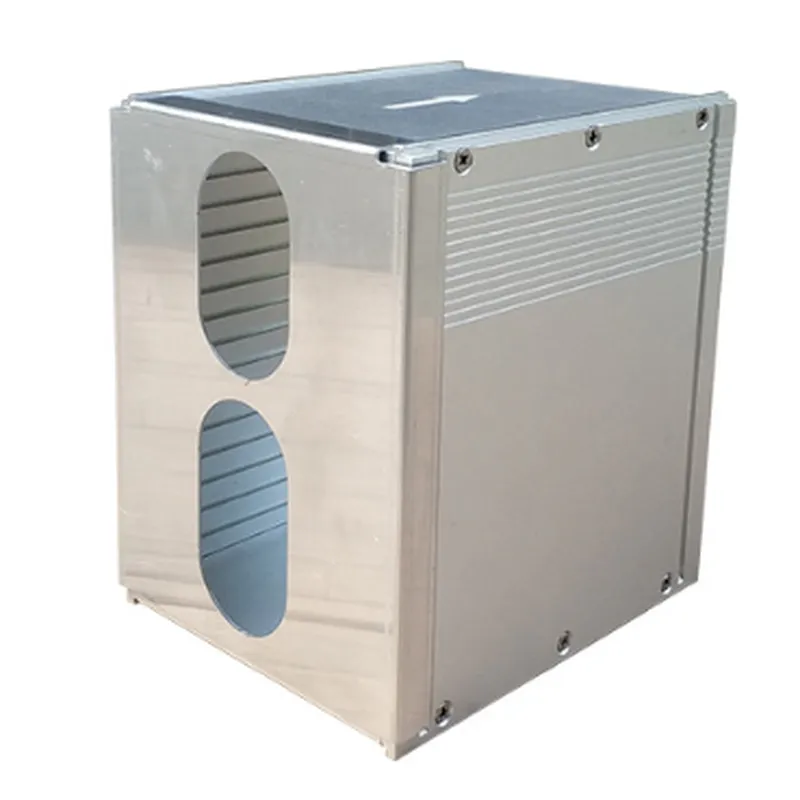

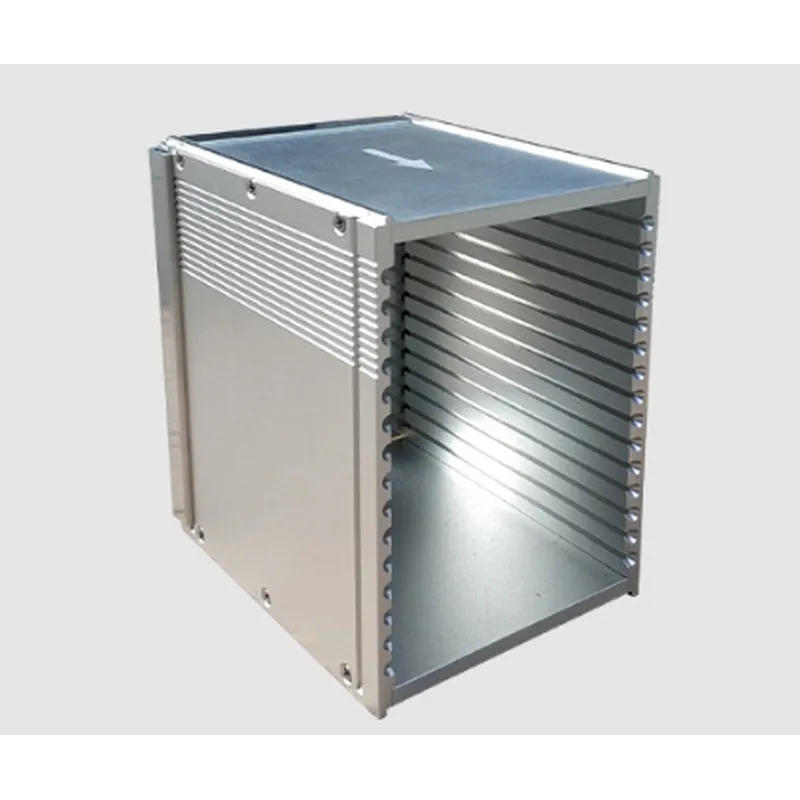

Custom Aluminum Lead Frame Magazine
Our aluminum lead frame magazines are designed for the safe storage, transfer and automated handling of lead frames during semiconductor assembly and packaging processes.
Each magazine can be manufactured according to customer drawings, technical specifications or reference samples. Dimensions, internal width, slot quantity, slot pitch, slot profile and structural design can be customized for different lead frame formats and production equipment.
Key Features
• Lightweight and durable aluminum construction

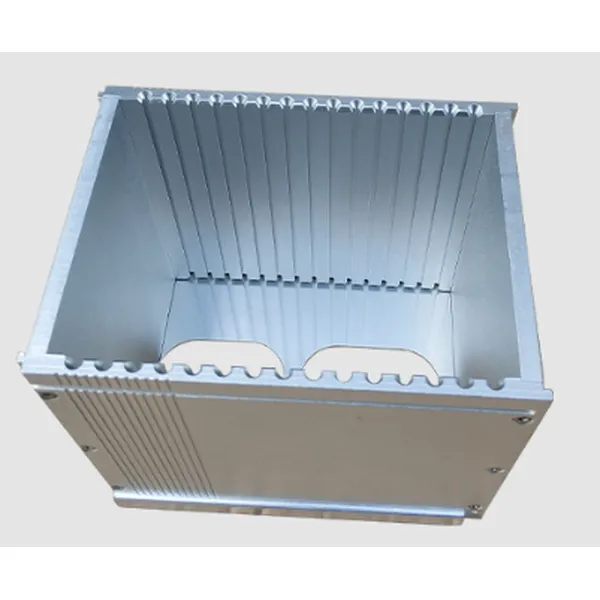

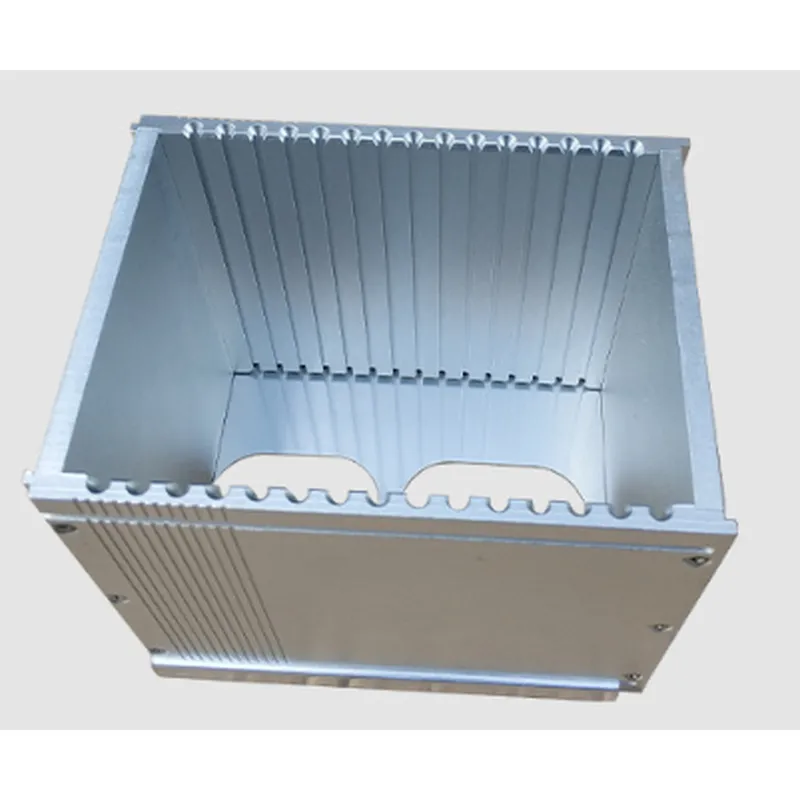

• Precision-machined slots and guide surfaces

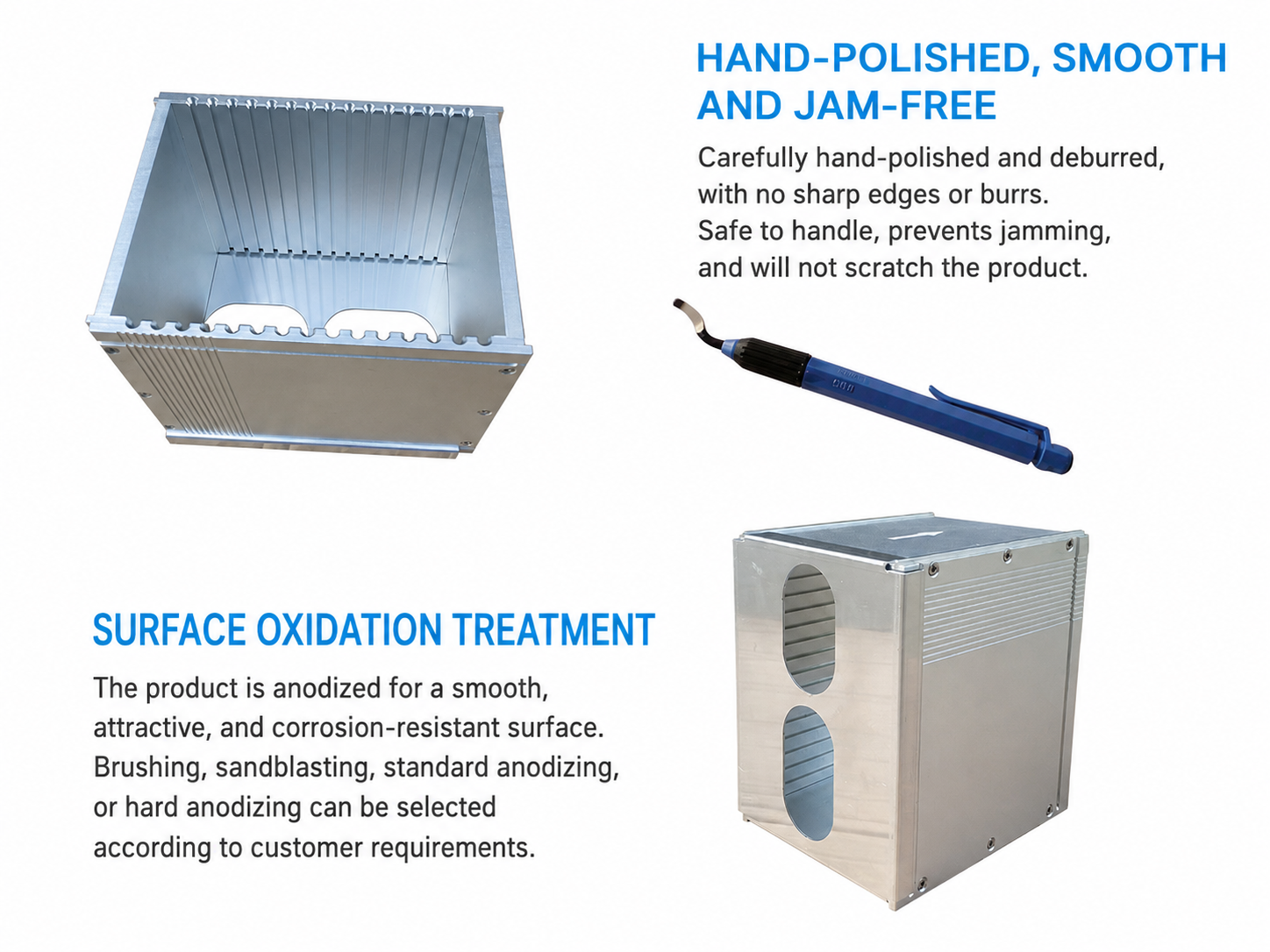

• Smooth, polished and deburred contact edges
• Reliable loading, unloading and material transfer
• Good corrosion resistance and long service life
• Suitable for automated semiconductor production equipment
• Available in different sizes and structural configurations
Customization Options
• Overall dimensions and internal loading width
• Slot quantity, slot pitch, slot width and slot depth
• Openings, covers, handles, stoppers and locking structures
• Brushed, sandblasted, anodized or hard-anodized surface finish
• Laser marking, engraving and product identification
• Custom packaging according to shipping requirements
Typical Applications
• Die bonding
• Wire bonding
• Semiconductor molding
• Plating
• Trim and form
• Marking and inspection
• Lead frame storage and transportation
• Semiconductor assembly automation

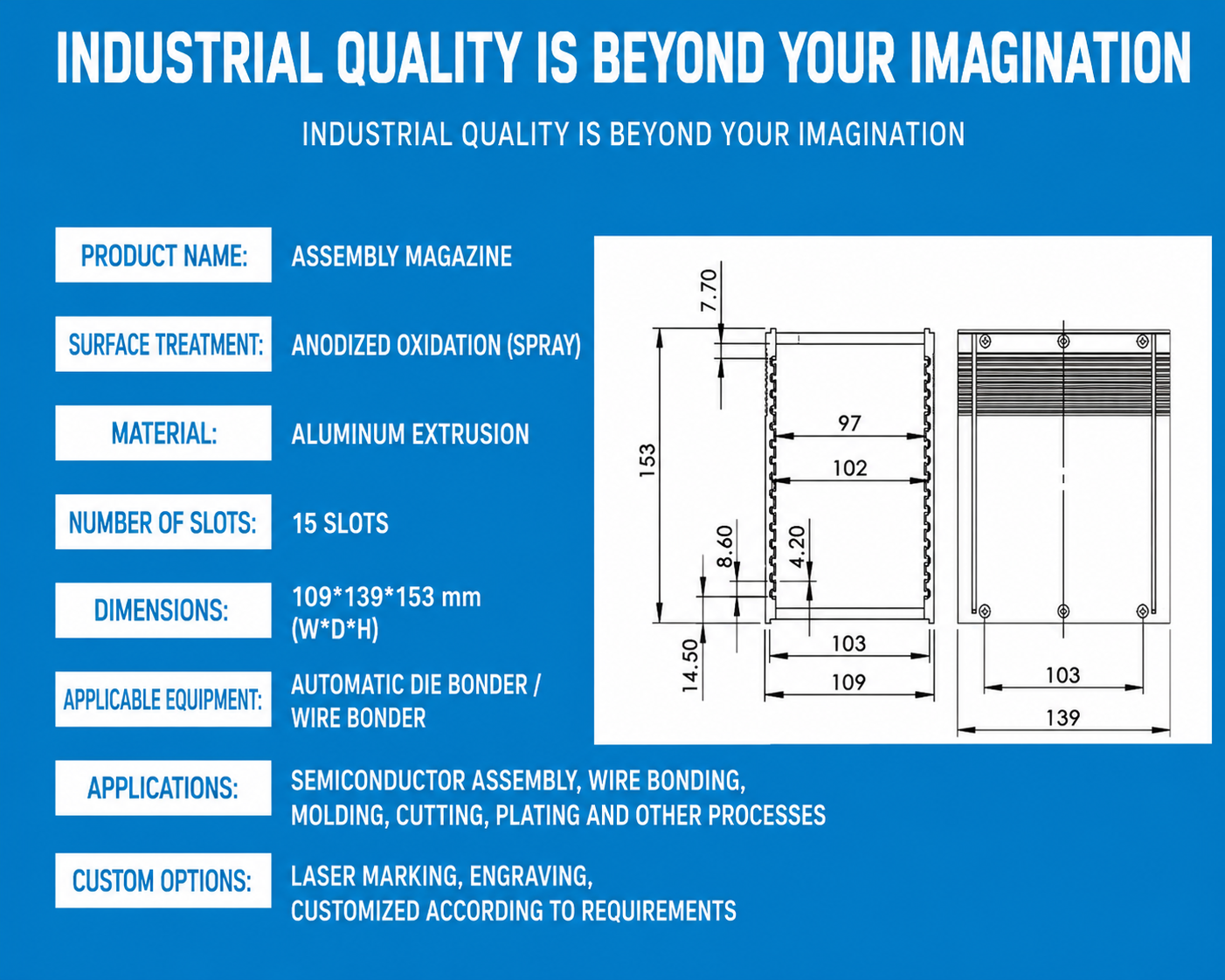

General Specifications
Product Type: Aluminum Lead Frame Magazine
Material: Aluminum alloy or aluminum extrusion
Dimensions: Customized
Slot Configuration: Customized
Surface Treatment: Brushing, sandblasting, anodizing or hard anodizing
Marking: Laser marking or engraving available

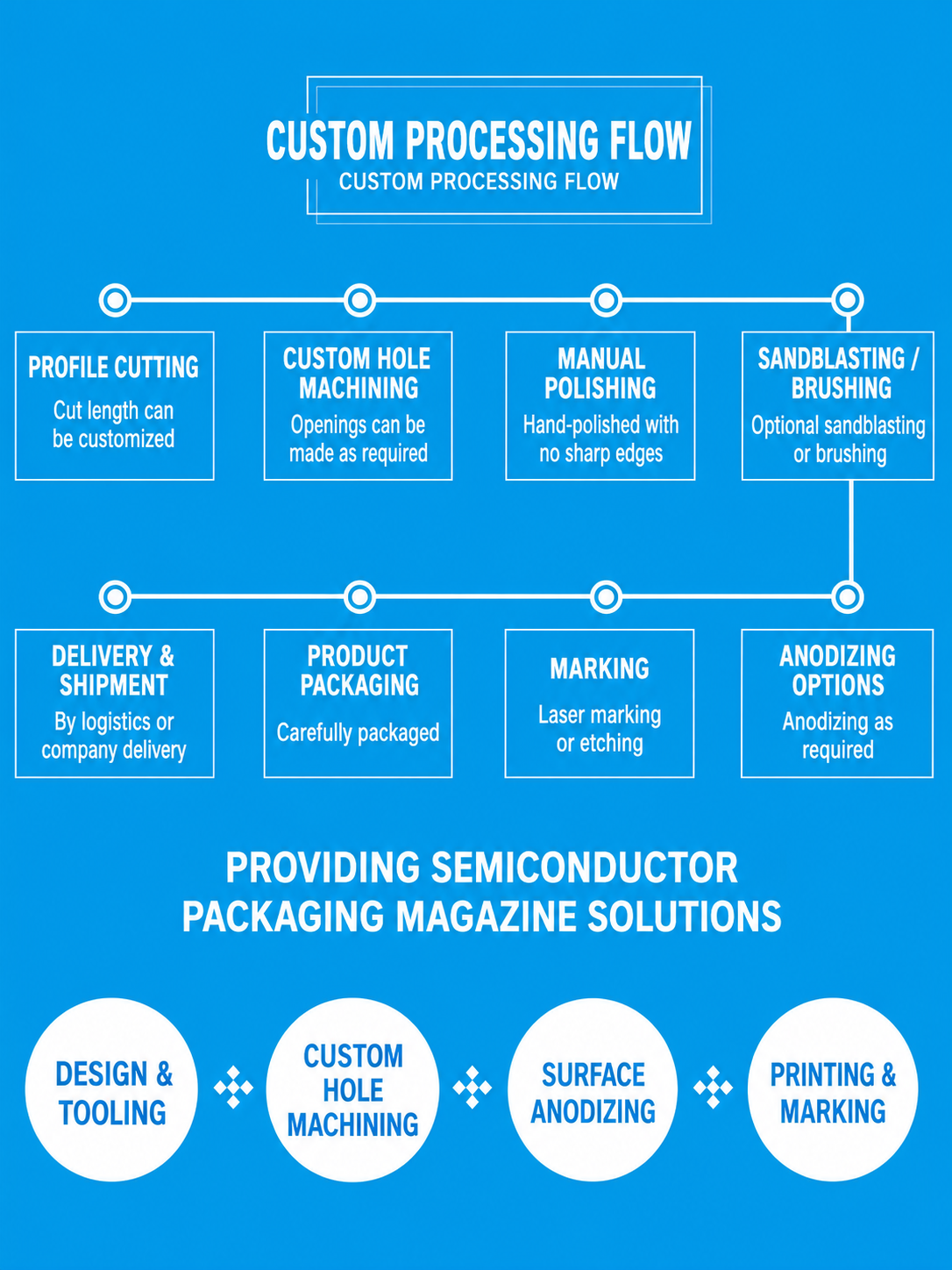

Manufacturing Method: Made according to customer drawings, specifications or samples
Information Required for Quotation
Please provide the magazine drawing or reference sample, lead frame dimensions, slot specifications, required surface treatment, applicable machine model and order quantity.
Contact us with your drawings or samples for a customized lead frame magazine solution.
