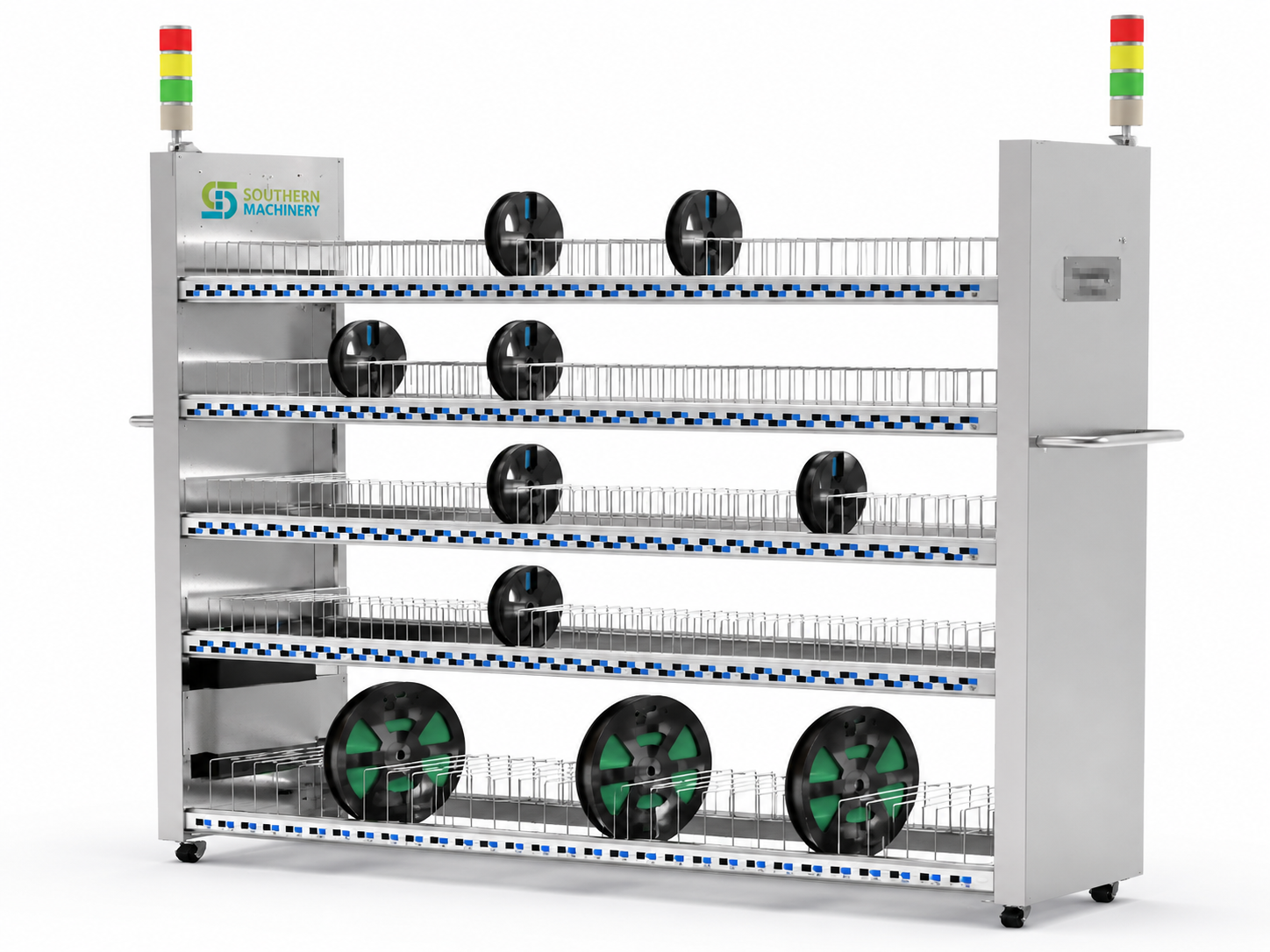

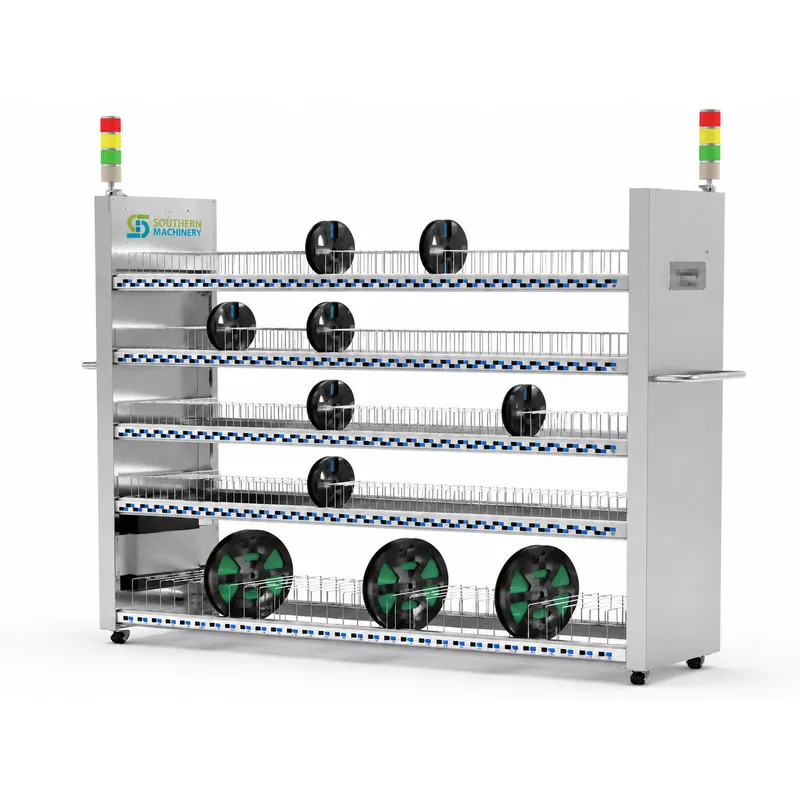

YDLJ Series Mobile QR Code SMT Reel Storage Rack
The YDLJ Series Mobile QR Code SMT Reel Storage Rackis an intelligent mobile storage solution designed for SMT electronic material warehouses and production-line material preparation.
By combining QR code identification, wireless communication and digital material management, the system helps manufacturers achieve accurate material tracking, inventory control and efficient warehouse-to-line logistics.
Key Features
Wi-Fi Communication:Supports wireless communication for material information exchange and system connection.
Large Capacity Lithium Battery:The built-in lithium battery supports continuous operation for up to 48 hours under reference conditions.
Open Communication Interface:Supports connection with external systems, controllers and factory management platforms.
MES Material Status Management:Supports material status checking and production preparation through MES.
WMS and ERP Integration:Supports inventory calculation and digital material management.
Mobile Material Delivery:The rack can move between electronic warehouses and SMT production lines.
AGV Compatible Design:Can be integrated with AGV logistics systems according to factory layout.
Intelligent Warehouse-Line Docking:Creates a connection between material storage and production demand.
QR Code Traceability:Supports digital identification and tracking of SMT reels.
Available Models
| Model | Structure | Dimension | Applicable Reel | Capacity | Layer | Surface |
|---|---|---|---|---|---|---|
| YDLJ630B | Mobile | 1330×400×1830mm | 16mm for 7" reels | 600 reels | 5 | Double-sided |
| YDLJ630B | Mobile | 1330×400×1830mm | 37mm for 13" reels | 30 reels | 1 | Single-sided |
| YDLJ510B | Mobile | 1330×400×1550mm | 16mm for 7" reels | 480 reels | 4 | Double-sided |
| YDLJ510B | Mobile | 1330×400×1550mm | 37mm for 13" reels | 30 reels | 1 | Single-sided |
| YDLJ390B | Mobile | 1330×400×1550mm | 16mm for 7" reels | 360 reels | 3 | Double-sided |
| YDLJ390B | Mobile | 1330×400×1550mm | 37mm for 13" reels | 30 reels | 1 | Single-sided |
Applications
SMT electronic material warehouse
Production line material preparation
Smart material logistics system
MES/WMS/ERP connected factories
AGV assisted material transportation
High-mix electronics manufacturing
Advantages
Reduces manual material searching time
Improves inventory accuracy
Supports digital warehouse management
Reduces material preparation errors
Improves production-line supply efficiency
Customization
Storage capacity, communication interface, software integration, AGV connection and material management functions can be customized according to customer requirements.
Notice:Images and parameters are for reference only. Final specifications depend on actual project requirements.
