Advantage:
Fully automatic coating machine assembly line: one-time investment, life-long benefit.
High efficiency: automatic coating, automatic curing, assembly line operation, greatly improving production capacity.

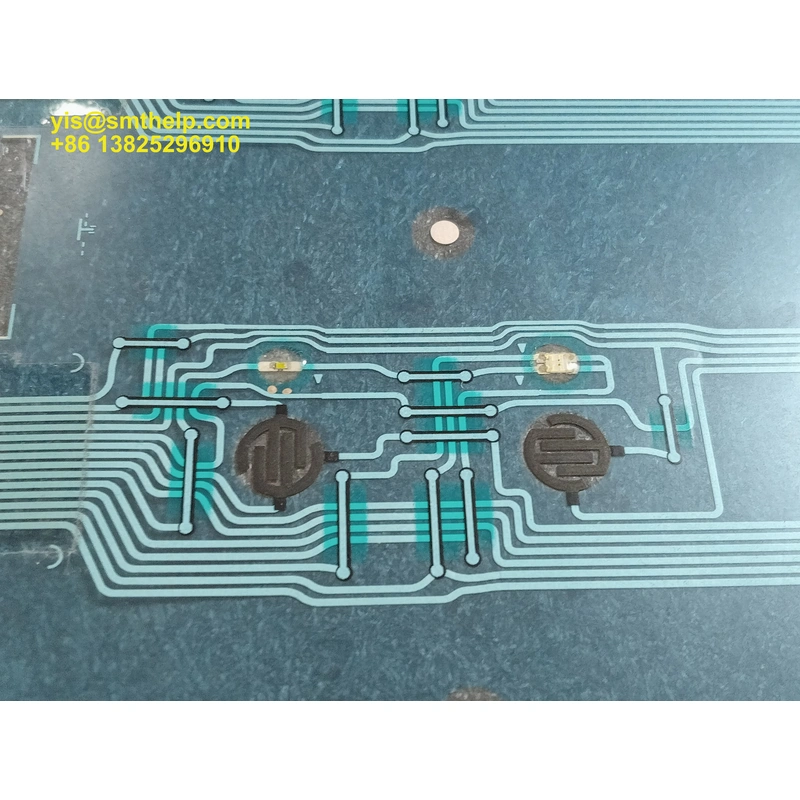

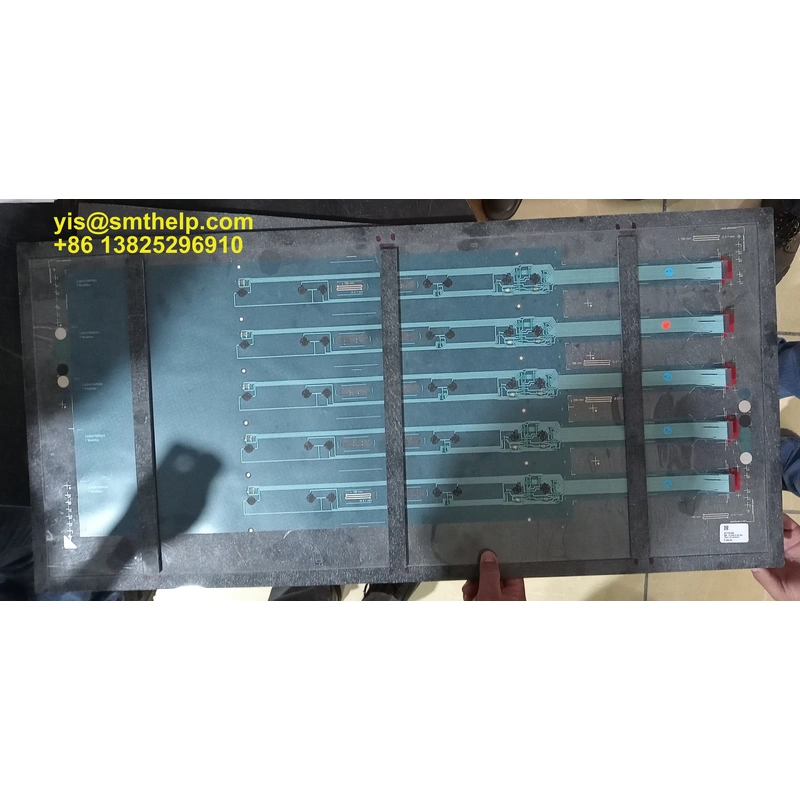

High quality: The coating amount and thickness of the three-proof paint on each product are consistent, the product consistency is high, and the quality of the three-proof paint is stable and reliable.
High precision: Selective coating, uniform and accurate, the coating accuracy is much higher than manual.
Low cost: saving labor, only one person is needed for one line, saving the cost of protective tape and other consumables and saving the time of sticking and removing the protective tape, greatly reducing production costs and improving labor utilization.
Glue saving: manual coating of conformal paint varies in dosage for each product, and the film thickness is not uniform, while machine selective coating, atomization coating, moderate and accurate film thickness, saving glue, 50% less paint than manual coating.
Low-carbon environmental protection: The machine has low power and low power consumption; the machine adopts a fully enclosed structure, with multi-angle exhaust gas recovery and sewage discharge systems, which avoids air pollution in the workshop, protects the health of employees, and creates a safe working environment.
Features:
●Integral steel motion platform, solid frame structure provides a strong guarantee for the stability during operation.
●Adopt high-precision fully sealed module, completely isolate the corrosion of screw rod and slide rail by mist.
●Professional control card and high-quality motion configuration system lay a solid foundation for high-speed and high-precision operation.
●Special aluminum alloy track and stainless steel conveyor chain.
.Using the man-machine interface, the fast programming method can greatly reduce the programming time.
. Fast speed and stable operation.
●Flexible multi-axis control can realize difficult spraying of complex PCB boards.
●Strong process control ability ensures high quality and high consistency of coating.
●The barrel well of the independent paint container is equipped with an exhaust outlet, which effectively reduces the emission of irritating gases.
●The glue spray valve is made of German technology, the size of the atomizing fan. Adjustable width.
●The atomizing pressure regulating valve adopts a high-precision digital display pressure regulating valve, which can effectively and accurately control the edge cleanliness.
● Equipped with automatic soaking and automatic spouting device, which can avoid the clogging of the glue outlet of the glue valve.
● Equipped with SMEMA interface to communicate with other equipment.
●Have fault sound and light alarm and menu display.
. The paint is automatically supplied with constant current and constant pressure to ensure the consistency of coating.
, Automatic valve cleaning device.
●Two sets of feeding systems can be selected to apply two kinds of paints at the same time.
Specs:

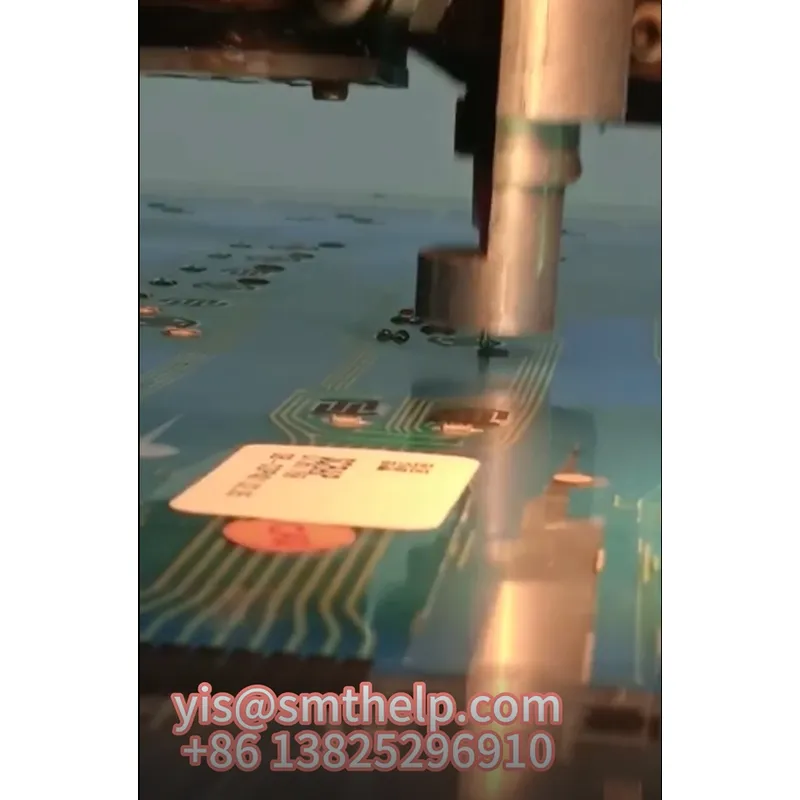

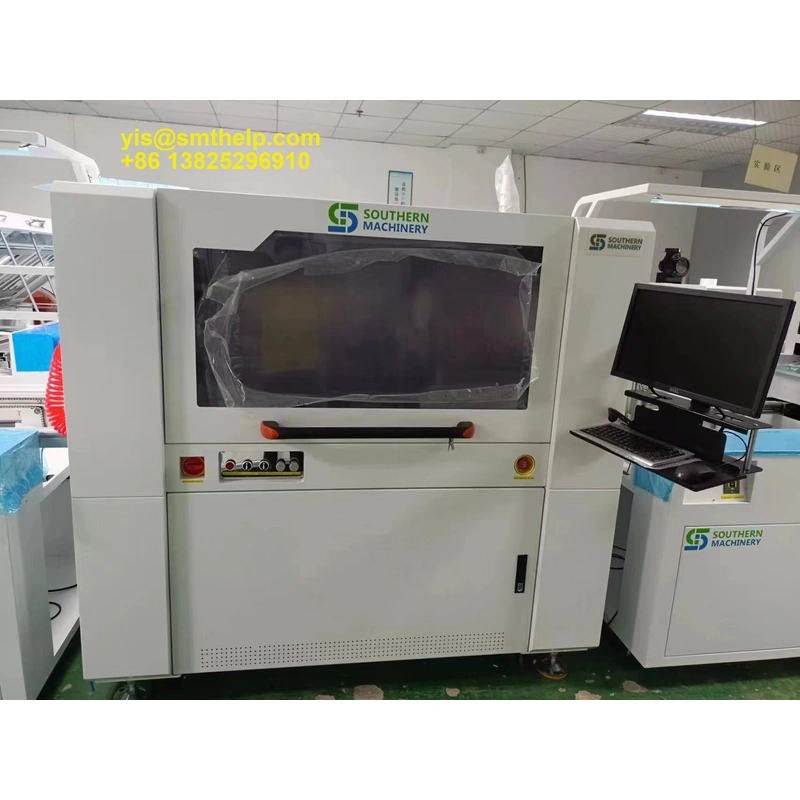

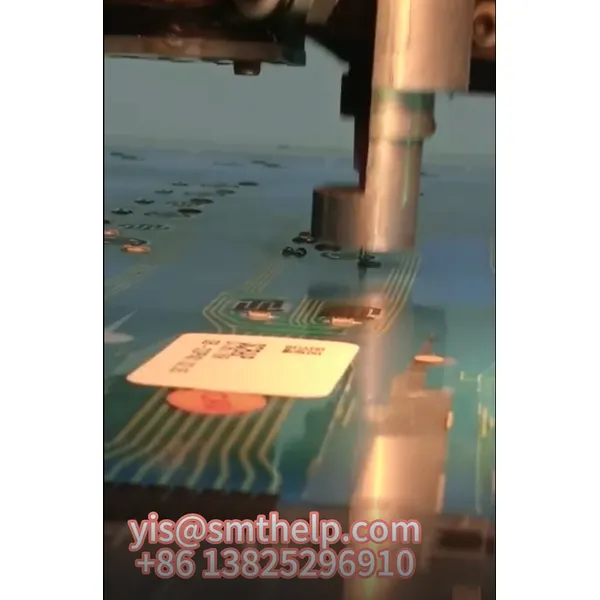

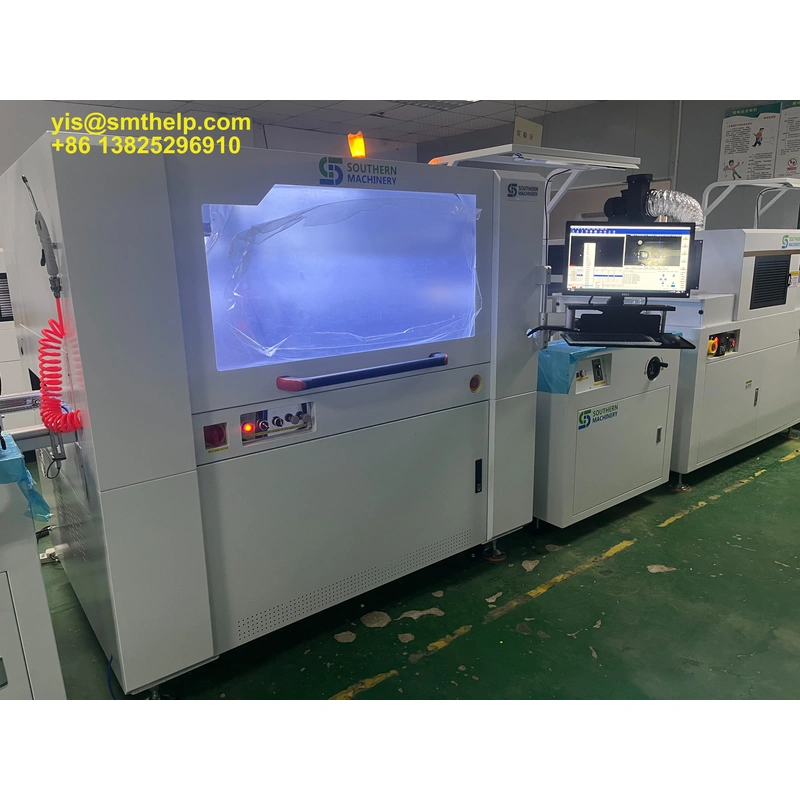

Model: STZ-P350
Type: Online
Computer: industrial computer + motion control card, LCD display, keyboard
The independent software developed under the Windows7 system can realize point, line, arc, circle, peripheral filling, etc.
Programmatic mouse button cover
Drive servo motor + ball screw
Positioning accuracy ±0.02mm
Repeatability ±0.02mm
Maximum moving speed 1000mm/S (X, Y, Z)
Maximum acceleration 1g (X,Y)
Visual Positioning System Industrial CCD
Transport drive Stepper motor, stainless steel chain
Width adjustment system automatic
AM speed 250mm/min
Transport speed 0～2400㎜/min
Transmission direction L→R (R--L optional)
Maximum substrate thickness 6 mm
Rail load (including clamps) 5.8 kg
Track height 880-930㎜
Number of tracks 1 set
Dispensing area (W×L) 450×750 ㎜
Number of valves 2
Valve type jet valve + piezo valve
Communication interface SMEMA interface
Power: Voltage AC220V, 50/60HZ, 10A
Air pressure: air pressure 0.4-0.6Mpa
Total power: 3.0KW
Total weight: 880KG
Dimensions (L×W×H) 1380×1200×1650㎜
