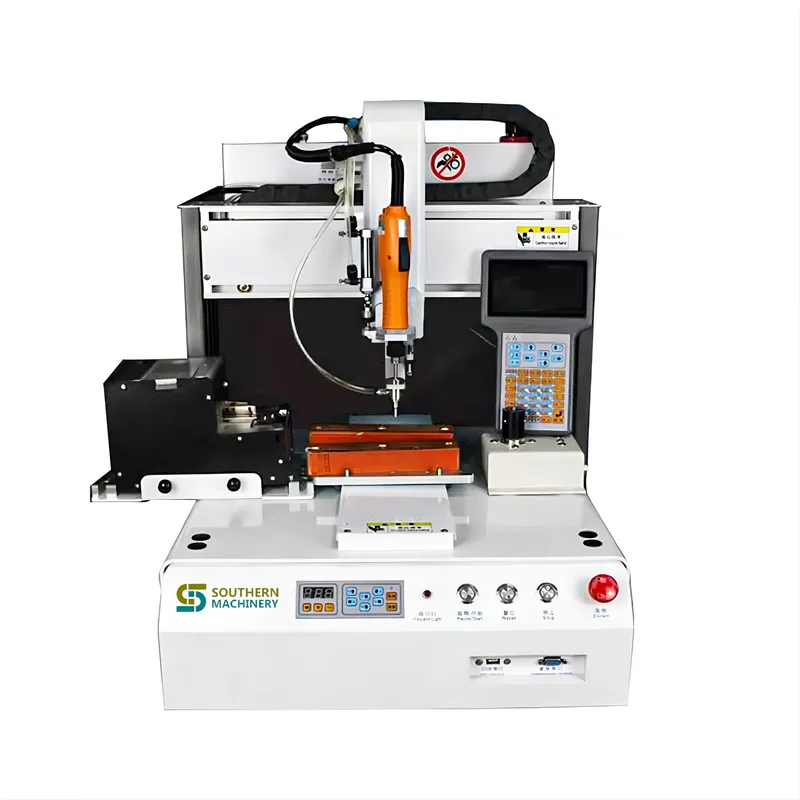

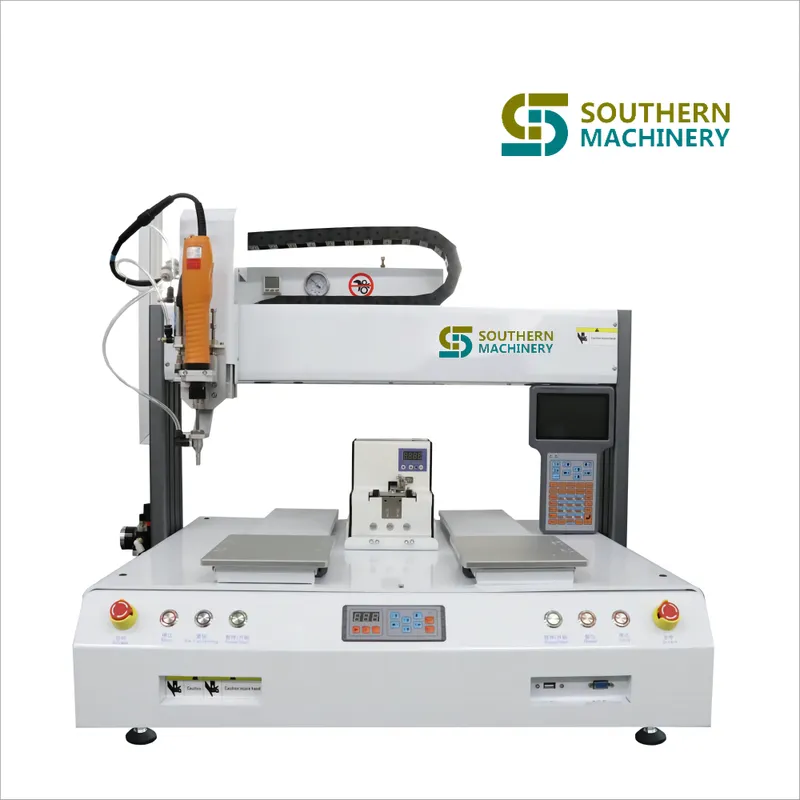

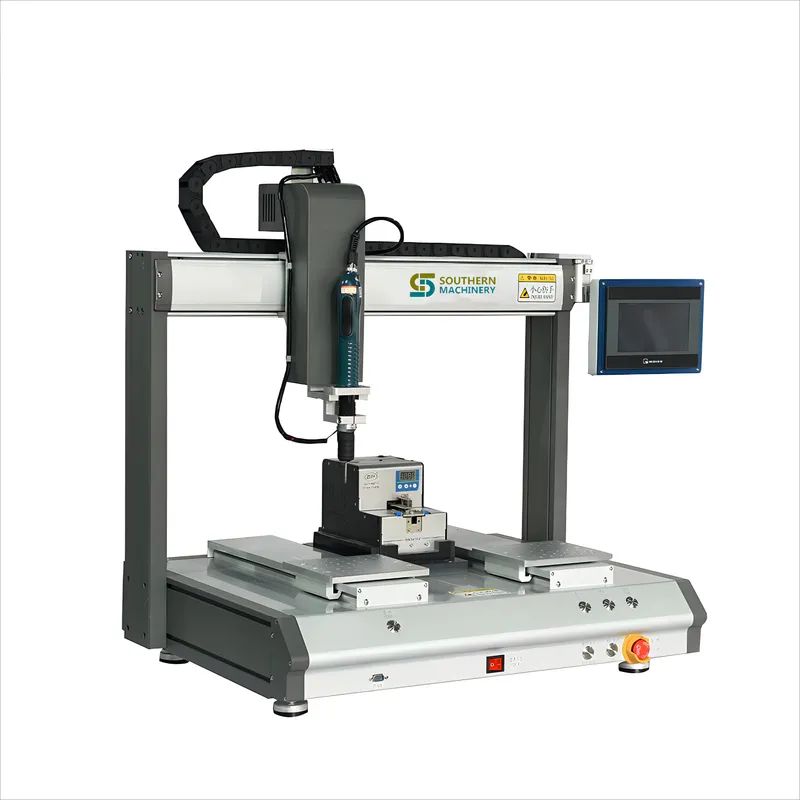

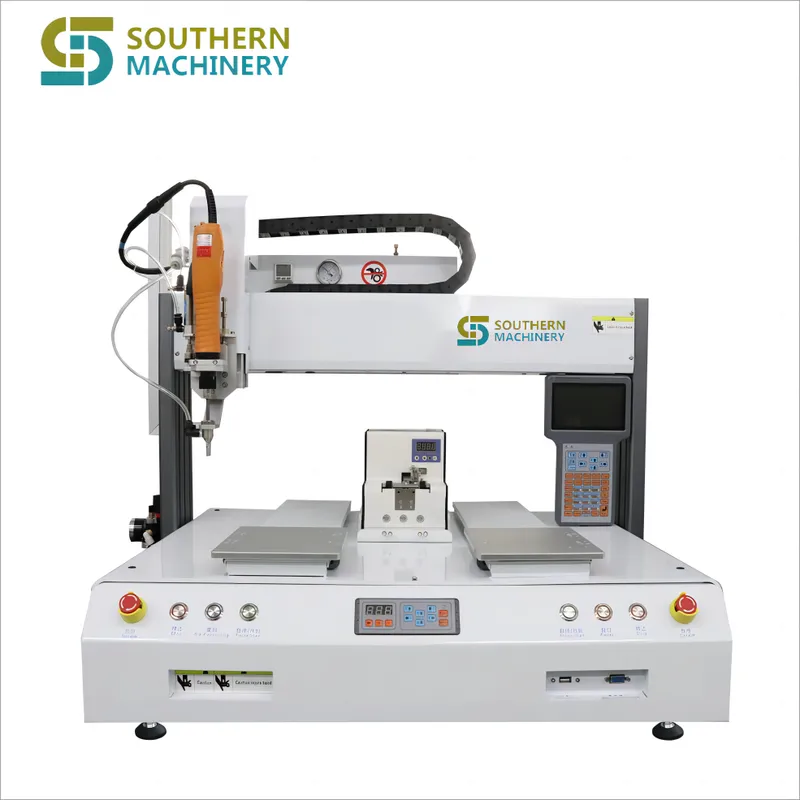

Screw Fastening Robot

Price: $5,800.00−$9,500.00

Product Information:

· Place of Origin: Guangdong, China

· Brand Name: Southern

· Condition: Brand New

· Weight: 68 kg

· Video Factory Inspection: Provided

· Mechanical Test Report: Provided

· Marketing Type: Regular Product

· Core Components Warranty: 1 Year

Main Components:

· Core Component: PLC

· Warranty: 1 Year

· Applicable Industry: Manufacturing Plants

· Showroom Locations: Egypt, Canada, Turkey, UK, USA, Italy, France, Germany, Vietnam, Philippines, Brazil, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain

· Name: Screw Fastening Drive Robot

· Repeatability Accuracy: ±0.02mm

· Memory: 999 Programs

· Programming: Drag-and-Teach Program

· Maximum PCB Size: 200 * 280mm

· Screw Feeding: Pick and Place, Magnetic

· Power Supply: AC:220±10%, 50/60Hz (AC:110V)

· Control Mode: Microcontroller + Touch Panel

· Movement Range: X:580mm, Y1&Y2:280mm, Z:100mm

· Weight: 60kg

Product Description:

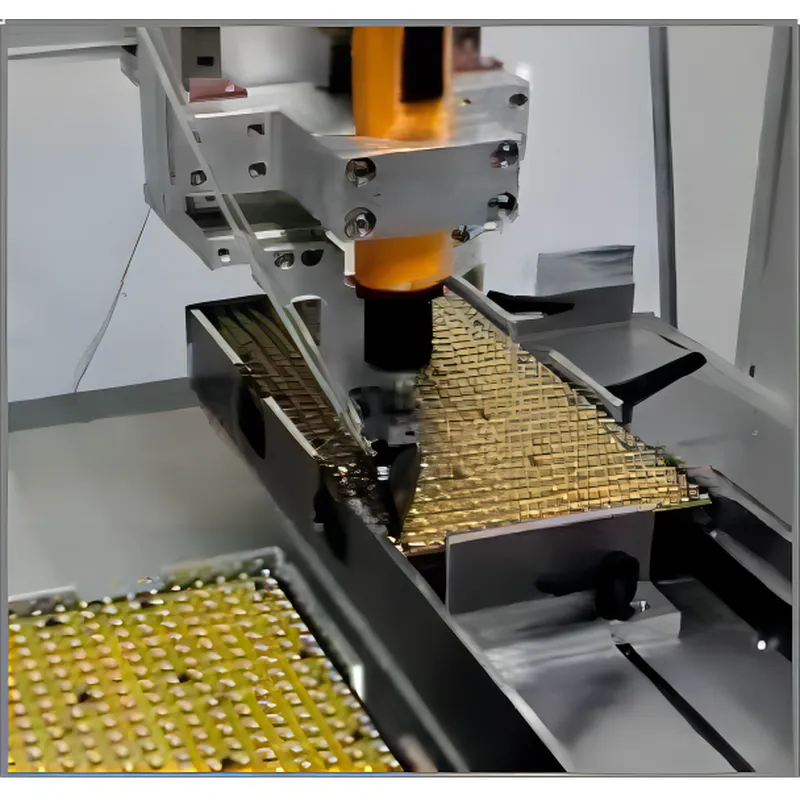

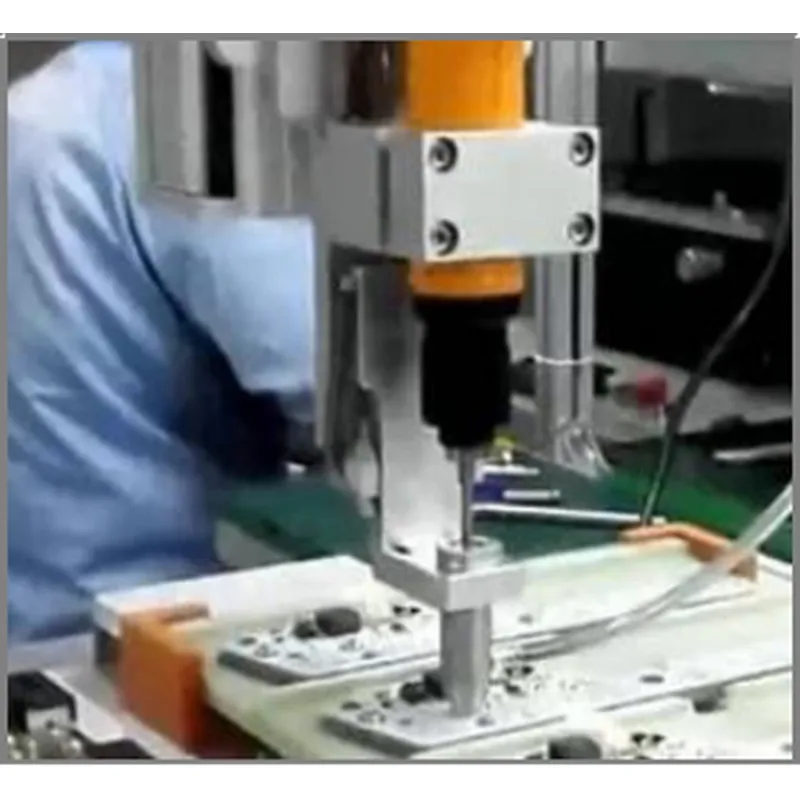

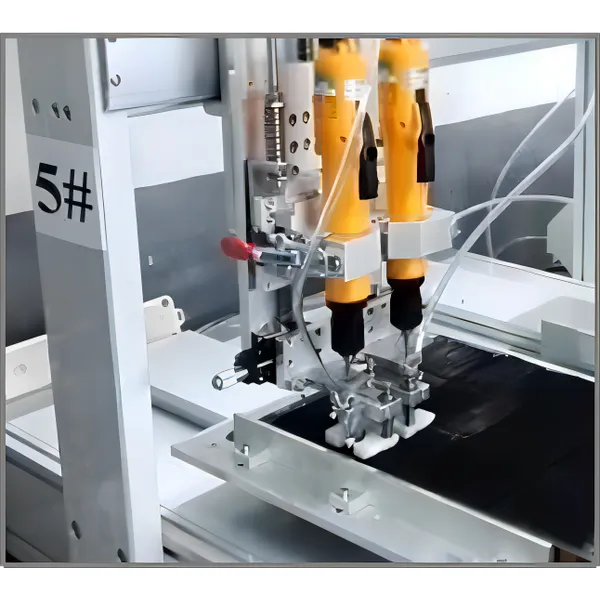

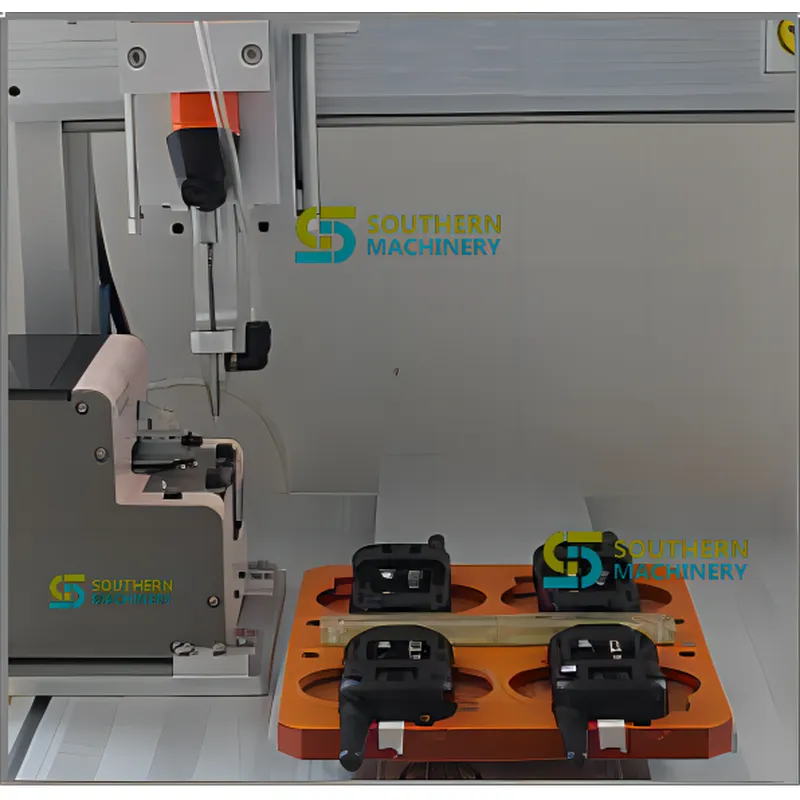

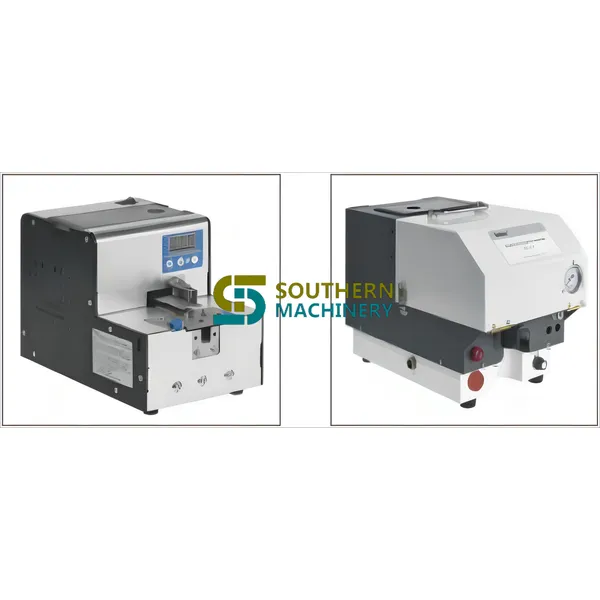

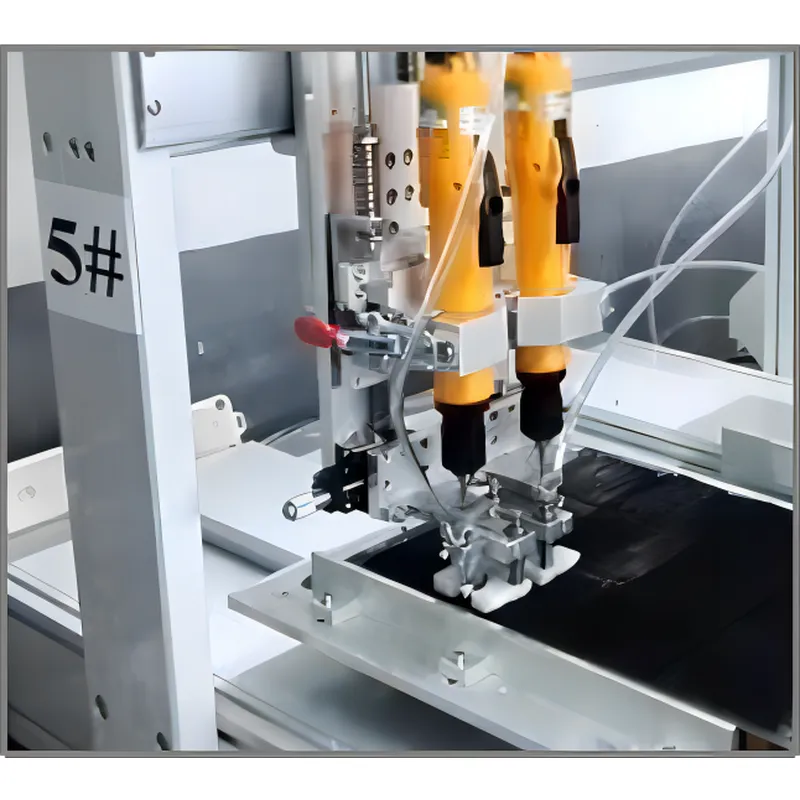

The automatic screw robot consists of an electric screwdriver and an automatic screw feeder. By combining the two, it achieves complementary screw transfer and fastening, significantly improving production efficiency and saving labor. After the screwdriver locks a screw, it lifts up, and another screw is continuously fed to continue the operation, making it particularly suitable for workpieces with multiple stations of the same specification.

Key Advantages:

1. Easier Operation: Single device with one worker, only requiring loading, reducing labor intensity.

2. Reliability: Automatic alarm system, operating time >20 hours.

3. Intelligence: Automated equipment brings a new look to factory production lines.

4. Customization: Robots can be customized according to customer product assembly needs.

Options:

· Adsorption

· Blowing

Specifications:

· Maximum PCB Size: 200 * 280mm

· Axis Speed: 600mm/s, Z-axis: 400mm/s

· Movement Range: X:580mm, Y1&Y2:280mm, Z:100mm
