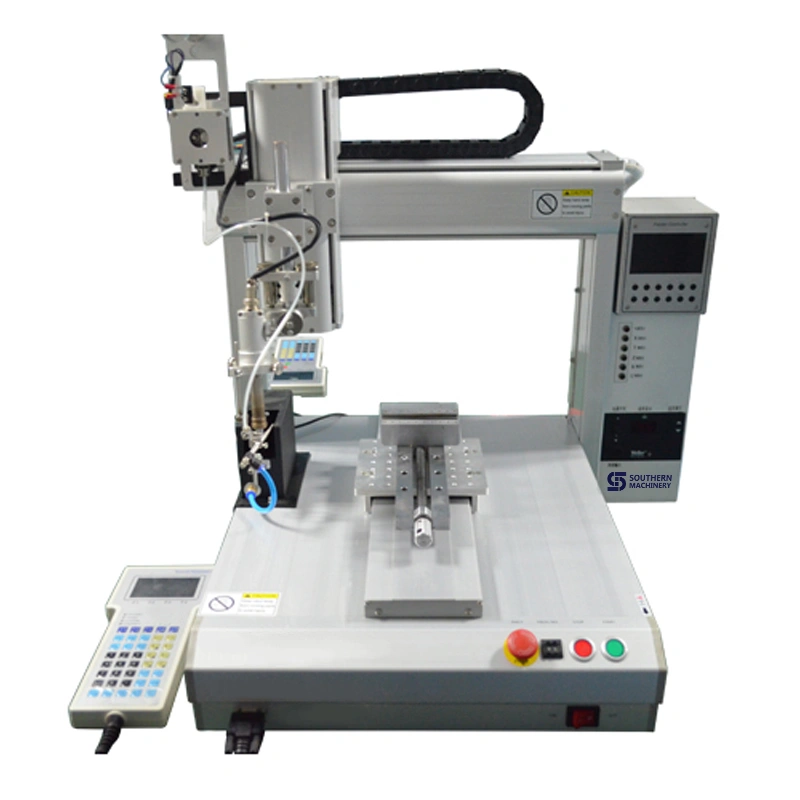

S- A300 /S- B400 Solder Robot

Scope of application: a complex in the plane of the multipoint welding, spot welding, welding

Applicable products: power supply, connector, fuse, LCD, LED, PCB, car electronics, etc

Description

ModelS- A300   Three Axis Solder RobotS- B400   Thour Axis Solder Robot
Number of axis 3 4
Effective distance X-axis 300mm X-axis 300mm
 Y-axis 300mm Y-axis 300mm
 Z-axis 100mm Z-axis 100mm
 \ \ R-axis ±360°
Maximum Speed X-axis 500mm/s X-axis 500mm/s
 Y-axis 500mm/s Y-axis 500mm/s
 Z-axis 300mm/s Z-axis 300mm/s
 \ \ R-axis 300dg/s
Repeatability X-axis ±0.02mm X-axis ±0.02mm
 Y-axis ±0.02mm Y-axis ±0.02mm
 Z-axis ±0.02mm Z-axis ±0.02mm
 \ \ R-axis ±0.02°
Load Y-axis 10.0Kg Y-axis10.0Kg
 Y-axis 5.0Kg Y-axis5.0Kg
Teaching formatTeaching pendanl
Range of tempreature±5.0℃
Dimension650mm*600mm*720mm
Power sourceAC220V50/60HZ
Air Dry air4~5kgf/c㎡
