Tunnel Oven

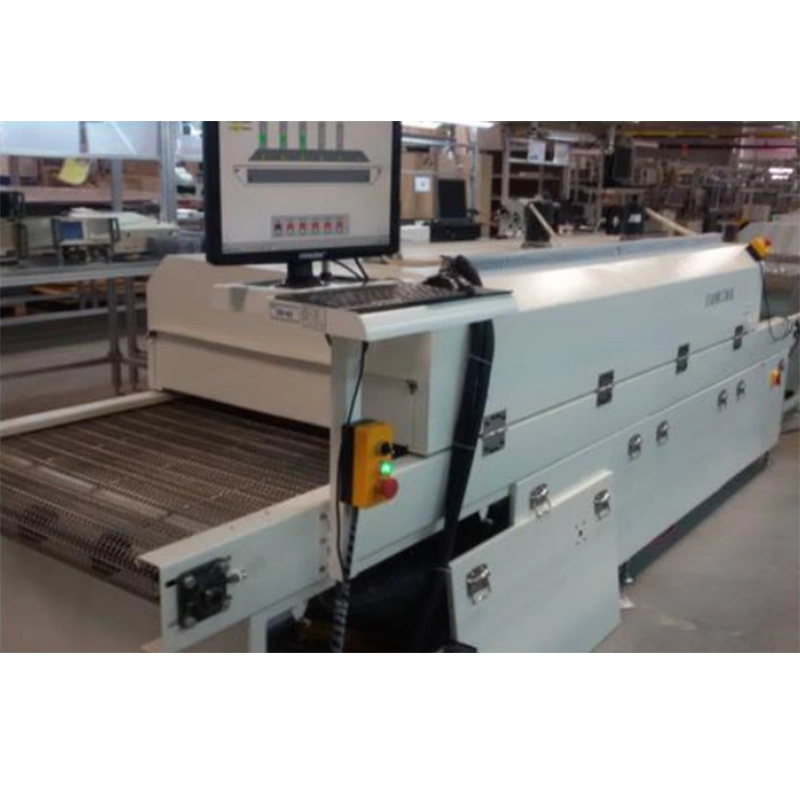

S-TO4000 Tunnel Oven

Custom for you accdoding to your requirements.

Have the most strong bearing ability.



Product Description

Specification

External size: 4000 * 1020 * 1100 mm,
Stove size: 2500 * 800 * 750 mm
Tunnel furnace forms: infrared heating tube,
Total power: Approx. 10 kw.
Tempreature : 150 to 190degC
 Emergency button: 3 pcs
Machine cover : Cylinder type
 Weight of the item to load : Approx. 200kg
Heat preservation: special 100 k rock wool insulation cotton,
Lining board: 1.2 mm galvanized sheet,
Outer board: 1.0 mm manufacture,
Heat preservation insulation: 60 mm thick.
Fan: 370W
Out port: 500 mm
In port: 1000 mm
Power system: 120 W
Tensioning method: screw
Transportation line: 100 mm x 100 mm square tube
Support: 40 mm x 40 mm square tube
Conveyor mesh belt: 800 mm wide
Electric control: control the start of the conveyor line, fan starts, tunnel furnace used
Power supply: 3 phase line 220V
Surface treatment: electric oven surface spray paint color with PC white
Safety protection: Configuration three-phase phase sequence protector
With viewing screen,with UPS

Can custom for you according to your requirements.

SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,



SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,

SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,



SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,



SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,

SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,

SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,

 tunnel oven drawing 06

tunnel oven drawing 02

SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,

Can used for different product.

Our machine have the bearing capacity of the strong.

SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,
