S-K100 LED  Pick & Place Machine
SMT Linear Motor (Magnetic)UIC SMT nozzle spare partsBulk LED for SMTS-K100 full automatic LEDS-K100 full automatic LED production lineHigh speed SMT LED ROI smthelp.com

LED tube SMT S-K100 LED Pick & Place Machine

Actual Speed: 120K CPH (one pick & place cycle: 1 sec) 36 nozzles: Gang pick/Gang Place2 Placement head: Linear motor Smart Feeder: 100% compatible NXTCross platform: PCB size 1.2×0.3m

One line equipments Investment: Starting at $120k

High Speed: 40K T8 LED tubes/ Day

SMT Assembly earning $0.05 /Tube

Profit: $50K per month
REQUEST A QUOTE


Product Description

Parts
S-K100 LED Pick & Place
Parameter
Advantage
Mounting Head

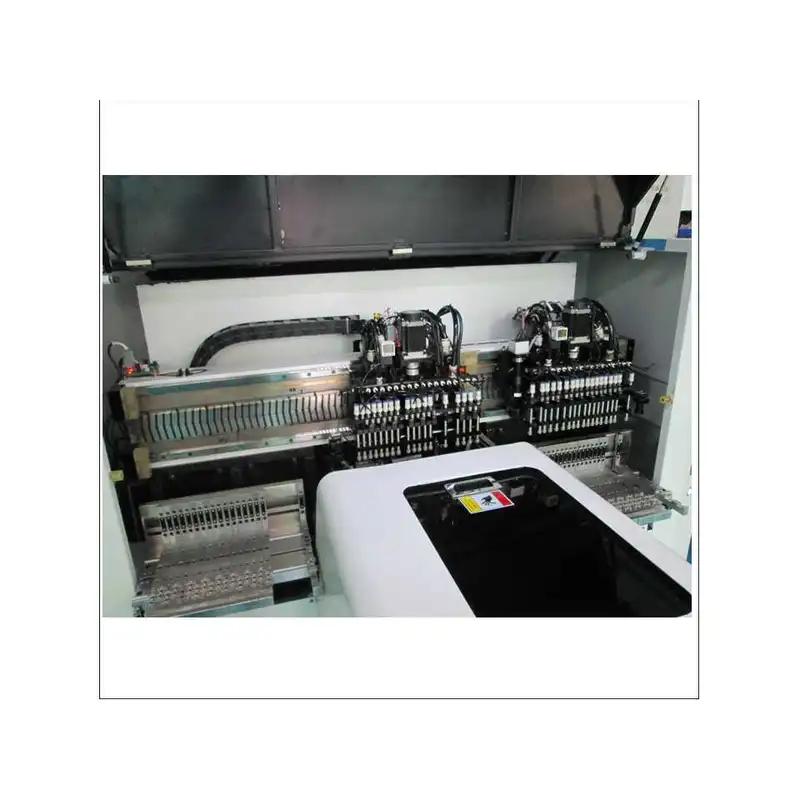

Linear Motor (Magnetic)

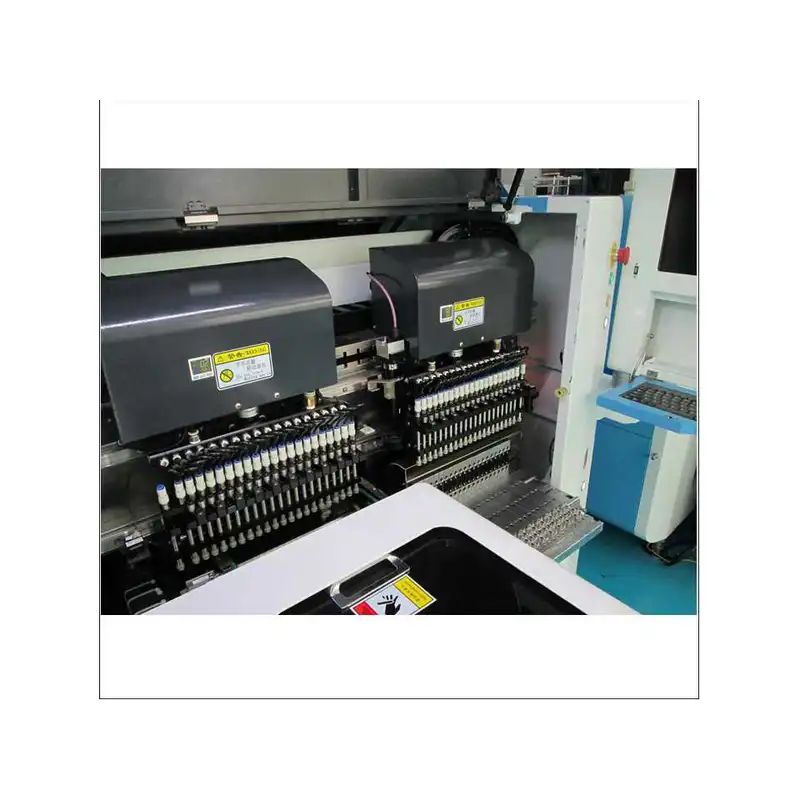

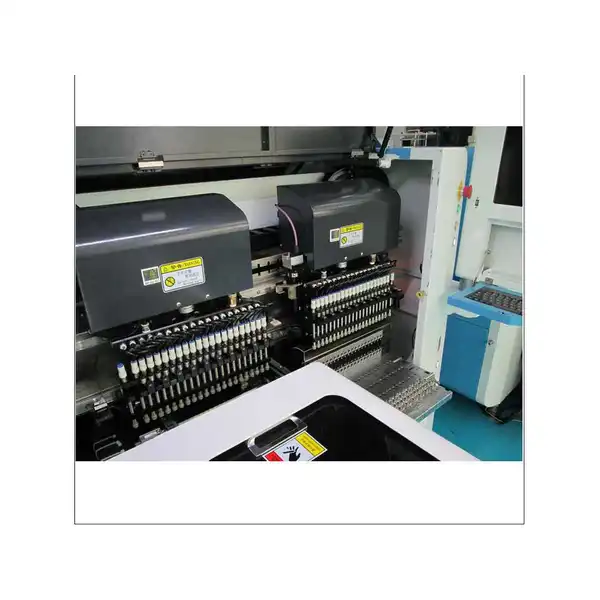

Double Arm, 36 pcs nozzle (18 pcs nozzle per arm)
Gang Pick, Gang Place. Left and Right arms are alternately Mounting, and can be controlled independently
Mounting Range
0603,0805,1206,2835,3014,3528,5050,
5630,5730,RGB and other LED belt light
Mounting LED
Min Mounting Distance
13.5mm
High efficiency, also can deal with small distance of PCB
PCB Position
CCD Vision, Mark Correction
PCB Precise positioning, ensure Mounting quality
PCB Conveyor Speed
320MM/S
Quickly conveyor, save time, improve the efficiency.
Direction
Front→→Rear, Rear→→Front
Flexible choice
Mounting Accuracy
+-0.02MM
High accuracy mounting, ensure mounting quality
Spec. Speed
140K CPH
High capacity, save production cost, ensure shipment
Actual Speed
120K CPH
Rail Size
13000MM(L)-300mmW)
Special design for LED light, LED display, LED Panel light
PCB Size
12000MM(L)-300mmW)
PCB Thickness
0.5mm-5.0mm


SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,

Double group placing head, each group has 16 pieces sucking nozzle

South Korea magnetic motor, guarantee high placing speed, easy to maintain

Top performance Phillips computer, can be folded into the machine, easy to set placing design

Skoda alarm, let you know the LED placement machines working condition clearly



SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,

Actual Speed: 120K CPH (one pick & place cycle: 1 sec) 36 nozzles: Gang pick/Gang Place2 Placement head: Linear motor Smart Feeder: 100% compatible NXTCross platform: PCB size 1.2×0.3m

Posted by Auto Insertion on 2015年9月14日

LED,SMT,THT,PCBALED,SMT,THT,PCBALED,SMT,THT,PCBALED,SMT,THT,PCBA 3SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,LED Pick and place machineLED Pick & Place MachineSave

Save

Save

Save

Parts
S-K100 LED Pick & Place
Parameter
Advantage
FEEDER Qty
36 pcs
Suit for large quantities production
Power Supply
220AC
Universal
Max. Power
3.0KVA
Low consumption power, save power cost
Air Pressure
5kg
Low air consumption, save air cost
Machine Dimension
L:2650mm
Special company design, Convenient for carry the machine and save factory space
W:1850mm
H:1350mm
Weight
2000kg
Operator
1 person
Save works Salary



Save

Save

Save

Reviews

There are no reviews yet.

Leave a Reply
