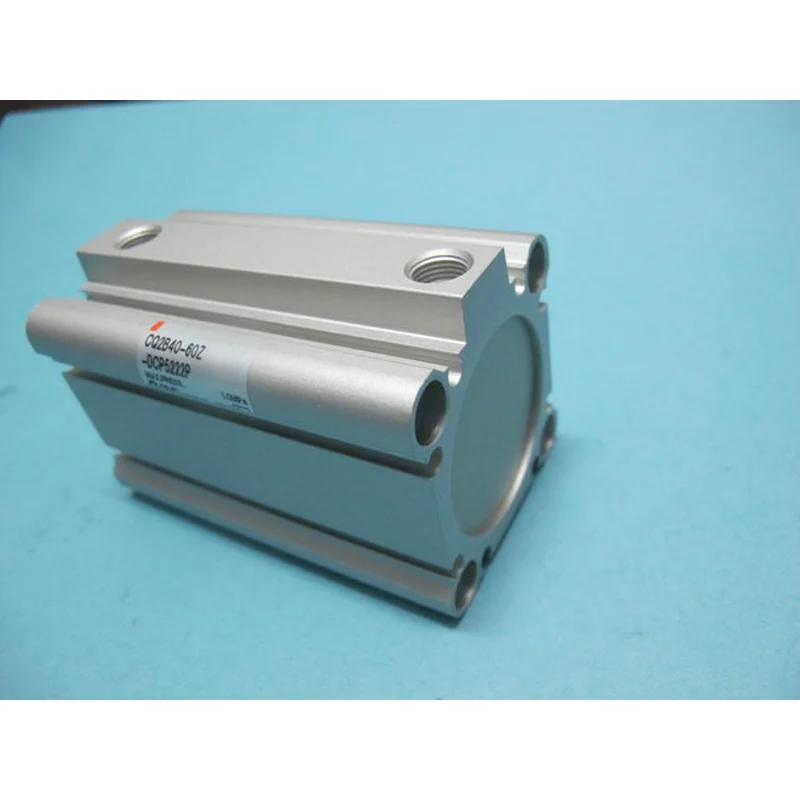

FUJI SMT machine spare parts －Pneumatic parts
Product Description
angela@smthelp.com
angela@smthelp.com
angela@smthelp.com
H63467
angela@smthelp.com
H63467
angela@smthelp.com
angela@smthelp.com
angela@smthelp.com
angela@smthelp.com
angela@smthelp.com
| Fuji Spare Parts Quotation (NXT Consumable) | ||||||
| Item | Part No | Description | Rating | Qty | U/Price | |
| (JPY) | ||||||
| NXT 4M Base | ||||||
| 1. | H2001R | FUSE | DM10 | 1 | 300 | |
| 2. | H20015 | FUSE | DM32 | 1 | 300 | |
| 3. | H2120W | FUSE | FGMA125V5AULCSA | 1 | 100 | |
| 4. | H2002Y | FUSE | MTG4A50072C | 1 | 280 | |
| 5. | H1019K | BATTERY | CR2032 | 1 | 700 | |
| NXT M3 / M3S Module | ||||||
| 6. | H10212 | BATTERY | JZSP-BA01 | 1 | 7,000 | |
| 7. | H2001R | FUSE | DM10 | 1 | 300 | |
| 8. | H20013 | FUSE | DM20 | 1 | 300 | |
| 9. | H20015 | FUSE | DM32 | 1 | 300 | |
| 10. | H2120W | FUSE | FGMA125V5AULCSA | 1 | 300 | |
| 11. | H2120X | FUSE | FGMA125V7AULCSA | 1 | 100 | |
| 12. | H2001H | FUSE | DM05 | 1 | 300 | |
| 13. | H2001E | FUSE | R452 001 | 1 | 300 | |
| 14. | XB01020 | CONVEYOR BELT | 1 | 5,400 | ||
| 15. | XB01010 | CONVEYOR BELT | 1 | 5,800 | ||
| 16. | S1058A | SILENCER | AN120-M5 | 1 | 1,120 | |
| 17. | PM05023 | FIXED CUTTER | M3 | 1 | 8,600 | |
| 18. | PT00750 | MOVABLE CUUTER | 1 | 10,000 | ||
| 19. | S1056E | SILENCER | AN103-01 | 1 | 1,080 | |
| 20. | H1019K | BATTERY | CR2032 | 2 | 700 | |
| H01 Head | ||||||
| 21. | XH00940 | FILTER | 1 | 2,800 | ||
| Item 21 ~ the part use on the X/No. from 985 and over. | ||||||
| 22. | XH00560 | FILTER | 4S0-FILTER-FL322717 | 1 | 2,800 | |
| Item 22 ~ the part use on the X/No. 1 to 984. | ||||||
| 23. | A52033 | O RING | 4SO-ORING-FL342485 | 1 | 80 | |
| 24. | PH00272 | CLAMP PIN | 1 set = 50pcs | 1set | 3,000 | |
| 25. | H1021H | BATTERY | ER6VLY | 1 | 2,800 | |
| H04 Head | ||||||
| 26. | AA0AL00 | FILTER | 1 | 960 | ||
| 27. | H1021H | BATTERY | ER6VLY | 1 | 2,800 | |
| H12 / H12S Head | ||||||
| 28. | AA19H01 | FILTER | 1 | 960 | ||
| 29. | H1021H | BATTERY | ER6VLY | 1 | 2,800 | |
| H01 Nozzle Station | ||||||
| 30. | PS00600 | SHEET | FOR NC03B | 1 | 460 | |
| 31. | PS00610 | SHEET | FOR NC08B | 1 | 480 | |
| 32. | PS00620 | SHEET | FOR NC8LB | 1 | 500 | |
| H04 Nozzle Station | ||||||
| 33. | PS00991 | SHEET | FOR NE12A | 1 | 900 | |
| 34. | PS00770 | SHEET | FOR NE18A | 1 | 460 | |
| Feeder | ||||||
| 35. | H2001D | FUSE | 015403.5DR | 1 | 300 | |
| Item | Part No | Description | Rating | Qty | U/Price | |
| (JPY) | ||||||
| Nozzle Types for H08/H12H/H12S Placing Head | ||||||
| 36. | AA1AT00 | NOZZLE | 0.3mm (For 0402) | 1 | 40,000 | |
| 37. | AA05600 | NOZZLE | 0.4mm | 1 | 17,500 | |
| 38. | AA05700 | NOZZLE | 0.7mm | 1 | 15,000 | |
| 39. | AA05800 | NOZZLE | 1.0mm | 1 | 15,000 | |
| 40. | AA20A00 | NOZZLE | 1.3mm | 1 | 15,000 | |
| 41. | AA20B00 | NOZZLE | 1.8mm | 1 | 15,000 | |
| 42. | AA20C01 | NOZZLE | 2.5mm | 1 | 15,000 | |
| 43. | AA20D00 | NOZZLE | 3.7mm | 1 | 15,000 | |
| 44. | AA20E00 | NOZZLE | 5.0mm | 1 | 15,000 | |
| 45. | AA06400 | NOZZLE | 1.3mm MELF | 1 | 32,500 | |
| 46. | AA19G00 | NOZZLE | 1.8mm MELF | 1 | 32,500 | |
| 47. | AA18C00 | NOZZLE | 3.7mm with RUBBER PAD | 1 | 25,000 | |
| 48. | AA06300 | NOZZLE | 5.0mm with RUBBER PAD | 1 | 27,500 | |
| Nozzle Types for H04 Placing Head | ||||||
| 49. | AA06W03 | NOZZLE | 1.0mm | 1 | 45,000 | |
| 50. | AA06X04 | NOZZLE | 1.3mm | 1 | 45,000 | |
| 51. | AA06Y04 | NOZZLE | 1.8mm | 1 | 45,000 | |
| 52. | AA06Z05 | NOZZLE | 2.5mm | 1 | 45,000 | |
| 53. | AA07A05 | NOZZLE | 3.7mm | 1 | 45,000 | |
| 54. | AA07B05 | NOZZLE | 5.0mm | 1 | 45,000 | |
| 55. | AA07C04 | NOZZLE | 7.0mm | 1 | 55,000 | |
| 56. | AA07D03 | NOZZLE | 10.0mm | 1 | 72,500 | |
| 57. | AA07E03 | NOZZLE | 15.0mm | 1 | 80,000 | |
| 58. | AA07F02 | NOZZLE | 2.5mm with RUBBER PAD | 1 | 55,000 | |
| 59. | AA07G03 | NOZZLE | 3.7mm with RUBBER PAD | 1 | 55,000 | |
| 60. | AA07H03 | NOZZLE | 5.0mm with RUBBER PAD | 1 | 55,000 | |
| 61. | AA07K04 | NOZZLE | 7.0mm with RUBBER PAD | 1 | 60,000 | |
| 62. | AA07L04 | NOZZLE | 10.0mm with RUBBER PAD | 1 | 60,000 | |
| 63. | AA07M04 | NOZZLE | 15.0mm with RUBBER PAD | 1 | 67,500 | |
| Nozzle Types for H01 Placing Head | ||||||
| 64. | AA0AS00 | NOZZLE | 1.0mm | 1 | 32,500 | |
| 65. | AA06800 | NOZZLE | 1.3mm | 1 | 40,000 | |
| 66. | AA0HL01 | NOZZLE | 1.8mm | 1 | 40,000 | |
| 67. | AA0HM00 | NOZZLE | 2.5mm | 1 | 37,500 | |
| 68. | AA0HN00 | NOZZLE | 3.7mm | 1 | 45,000 | |
| 69. | AA0HR01 | NOZZLE | 5.0mm | 1 | 45,000 | |
| 70. | AA08100 | NOZZLE | 10.0mm | 1 | 25,000 | |
| 71. | AA08200 | NOZZLE | 15.0mm | 1 | 50,000 | |
| 72. | AA08300 | NOZZLE | 20.0mm | 1 | 25,000 | |
| 73. | AA0MZ00 | NOZZLE | 1.3mm MELF | 1 | 67,500 | |
| 74. | AA11R00 | NOZZLE | 1.8mm MELF | 1 | 67,500 | |
| 75. | AA08410 | NOZZLE | 2.5mm with RUBBER PAD | 1 | 33,750 | |
| 76. | AA08500 | NOZZLE | 3.7mm with RUBBER PAD | 1 | 33,750 | |
| 77. | AA07200 | NOZZLE | 5.0mm with RUBBER PAD | 1 | 33,750 | |
| 78. | AA07310 | NOZZLE | 7.0mm with RUBBER PAD | 1 | 47,500 | |
| 79. | AA07410 | NOZZLE | 10.0mm WITH RUBBER PAD | 1 | 33,750 | |
| 80. | AA07510 | NOZZLE | 15.0mm with RUBBER PAD | 1 | 55,000 | |
| 81. | AA07610 | NOZZLE | 20.00MM WITH RUBBER PAD | 1 | 33,750 | |
