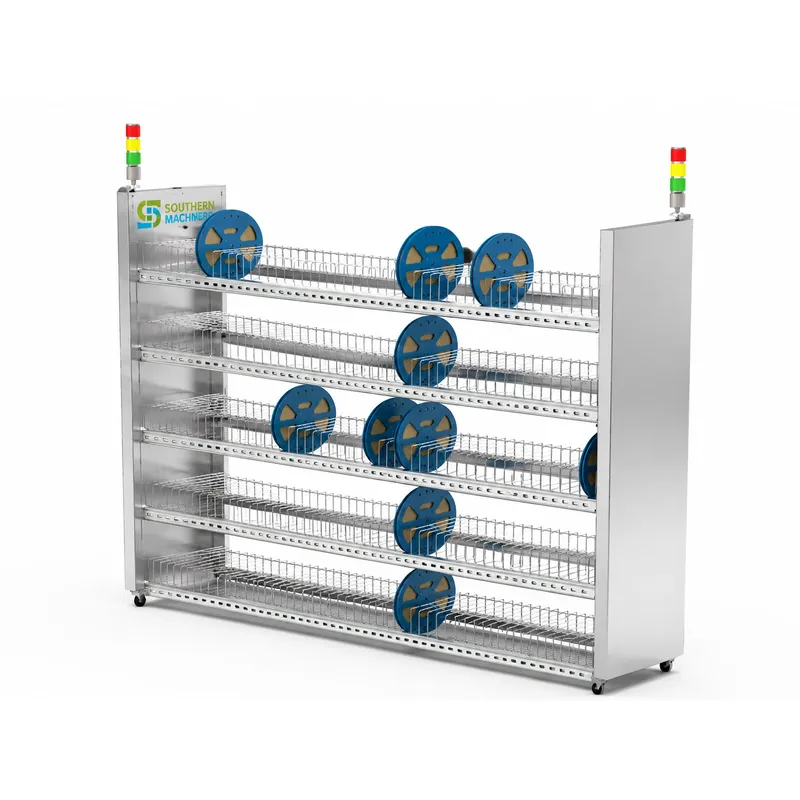

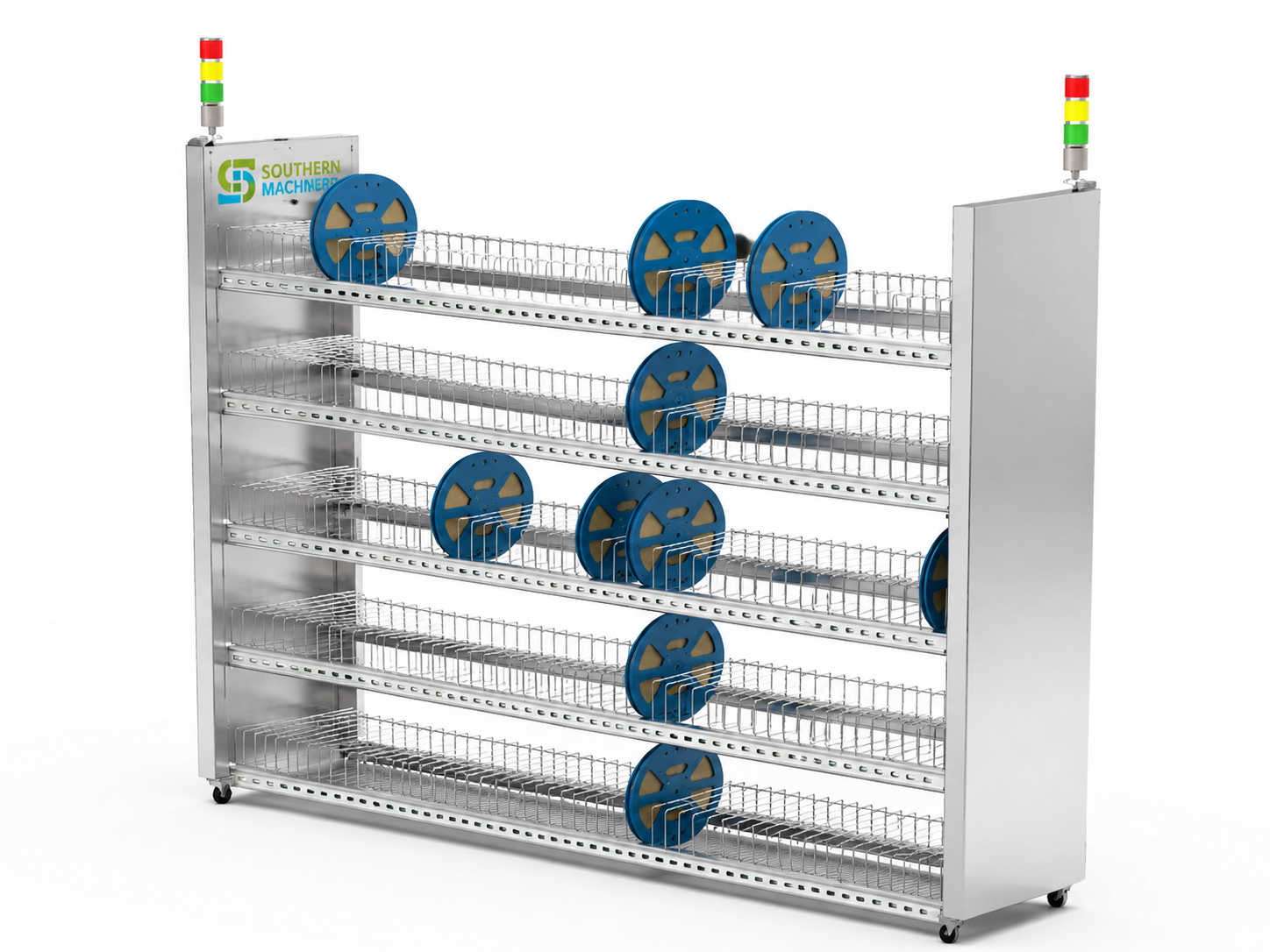

GDLJ Series Fixed QR Code SMT Reel Storage Rack
The GDLJ Series Fixed QR Code SMT Reel Storage Rack is designed for digital storage and management of electronic component reels in SMT warehouses and production preparation areas.
By linking material identification with individual storage positions, the system supports one-to-one digital material management, complete material traceability and more accurate preparation of SMT reels.
Key Features
One-to-One Digital Management: Connects each electronic material reel with its assigned storage position for traceable material handling.
QR Code Material Identification: Supports digital identification and management of stored SMT reels.
MES Integration: Deep integration with MES can support paperless and automated material preparation processes.
Automatic Material Preparation: Helps reduce repetitive manual preparation work and improve warehouse efficiency.
FIFO and Remaining-Reel Priority: Supports first-in, first-out control and priority use of partially used reels to reduce inactive inventory.
Material Loading Error Prevention: Supports error-proof material preparation and loading to reduce losses caused by incorrect reel selection.
Full-Process Traceability: Material use, preparation and circulation records can be traced through the digital management process.
Inventory Data Consistency: Helps connect material and finished-goods circulation information and improve consistency between physical inventory and system records.
Available Models
| Model | Structure | Dimensions | Applicable Reels | Storage Capacity | Layers | Storage Sides |
|---|---|---|---|---|---|---|
| GDLJ1400B | Fixed | 2110 × 370 × 1900 mm | 16 mm width, 7-inch reels | 1400 reels | 7 | Double-sided |
| GDLJ1100B | Fixed | 2110 × 370 × 1900 mm | 16 mm width, 7-inch reels | 1000 reels | 5 | Double-sided |
| 37 mm width, 13-inch reels | 100 reels | 2 | Single-sided | |||
| GDLJ250B | Fixed | 2110 × 370 × 1900 mm | 37 mm width, 13-inch reels | 250 reels | 5 | Single-sided |
Model Selection
Choose GDLJ1400B for high-capacity storage of 7-inch SMT reels.
Choose GDLJ1100B when both 7-inch and 13-inch reels must be stored in one rack.
Choose GDLJ250B for dedicated storage of 13-inch electronic material reels.
Typical Applications
SMT electronic material warehouses
SMT material preparation areas
7-inch and 13-inch component reel storage
MES-connected electronics factories
FIFO electronic material management
High-mix production material preparation
Material loading error-prevention systems
Operational Value
Improves material traceability
Reduces manual material searching and preparation
Supports paperless production management
Reduces incorrect material selection
Improves inventory and system-record consistency
Supports digital and lean warehouse management
Customization
Reel capacity, storage layout, system interface, MES connection and material-management functions can be customized according to the customer's warehouse and production requirements.
Configuration Notice: Product images and parameters are for reference only. Final dimensions, storage capacity, software functions and system interfaces must be confirmed according to the actual project.
