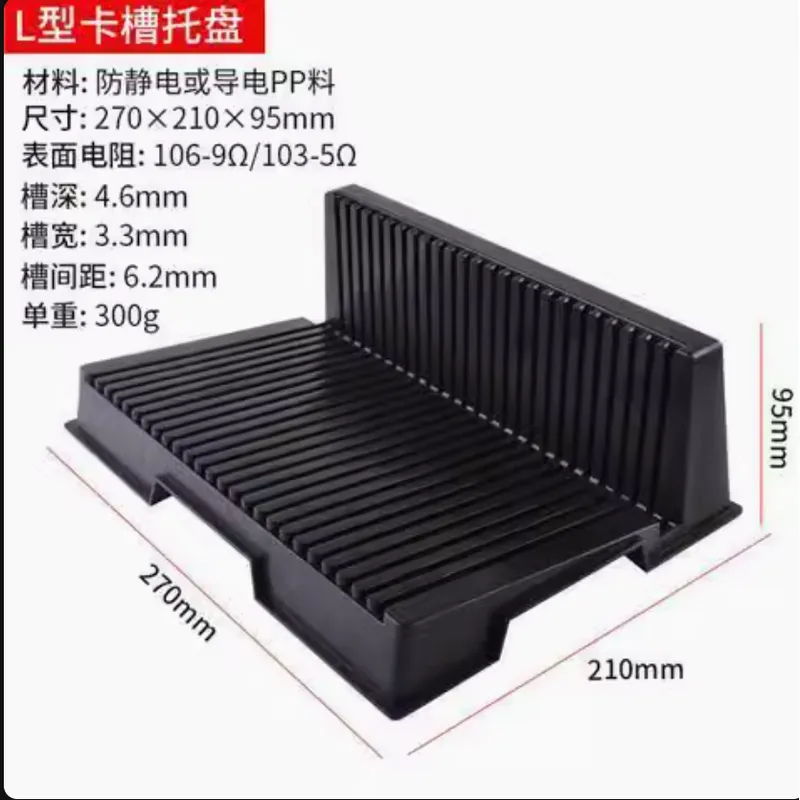

1. Product Features
Material Characteristics
Adopt anti-static or conductive PP material, which can effectively prevent static electricity from damaging PCB boards and ensure the safety of electronic components.
Dimensions
The size of the tray is 270×210×95mm, providing a certain load area.
Electrical Performance
The surface resistance is 106 - 9Ω/103 - 5Ω. This resistance range can well control the generation and conduction of static electricity.
Card Slot Design
The slot depth is 4.6mm, the slot width is 3.3mm, and the slot spacing is 6.2mm. This slot design can firmly place the PCB board to prevent the PCB board from moving or slipping during turnover.
Weight
The single weight is 300g, which is relatively light and easy to operate and carry.
2. Applicable Scenarios
Production Links

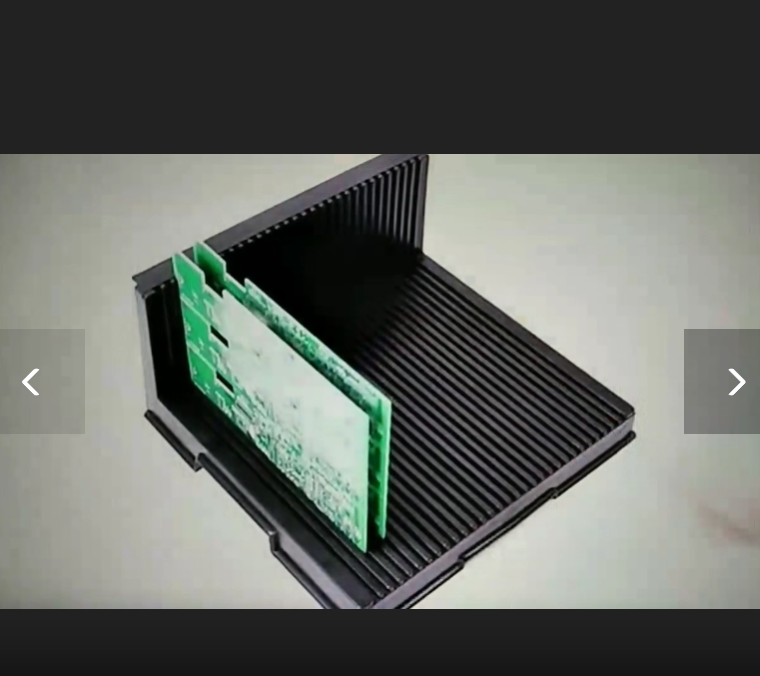

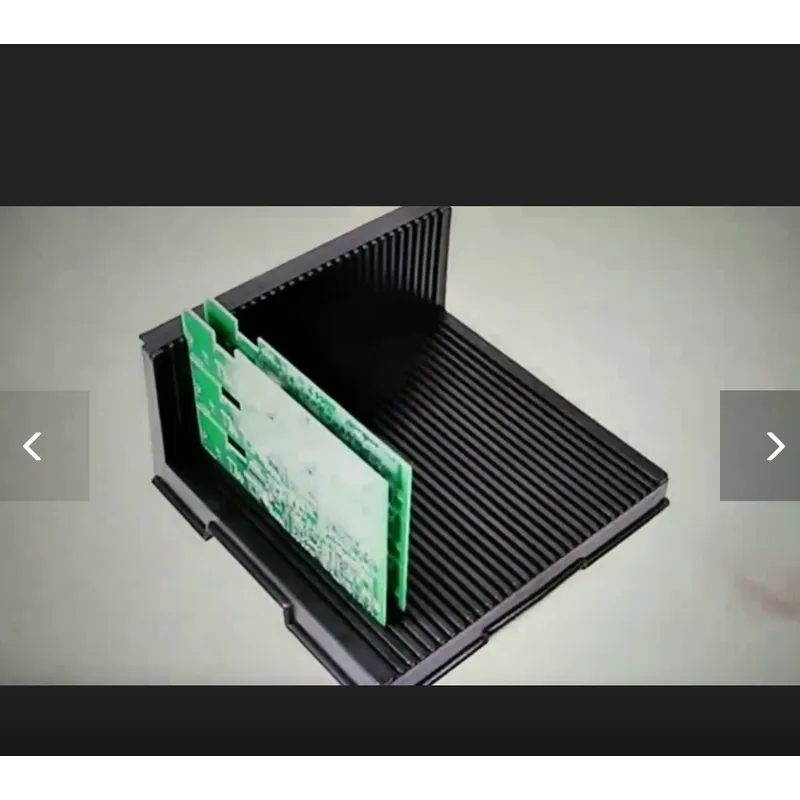

In the production process of PCB boards, from patch, welding to testing, etc., PCB boards need to be circulated and temporarily stored. This L-shaped card slot tray can meet these needs well and ensure the safe transfer of PCB boards between various production processes.
Warehousing link
When storing PCB boards in the warehouse, using this anti-static tray can prevent static electricity accumulation and protect the electrical performance of the PCB boards. At the same time, its card slot design allows the PCB boards to be stored neatly, which is easy to manage and access.
Transportation link
When transporting PCB boards to customers or other production locations, this tray can fix the PCB boards to prevent damage to the PCB boards due to vibration or collision during transportation.

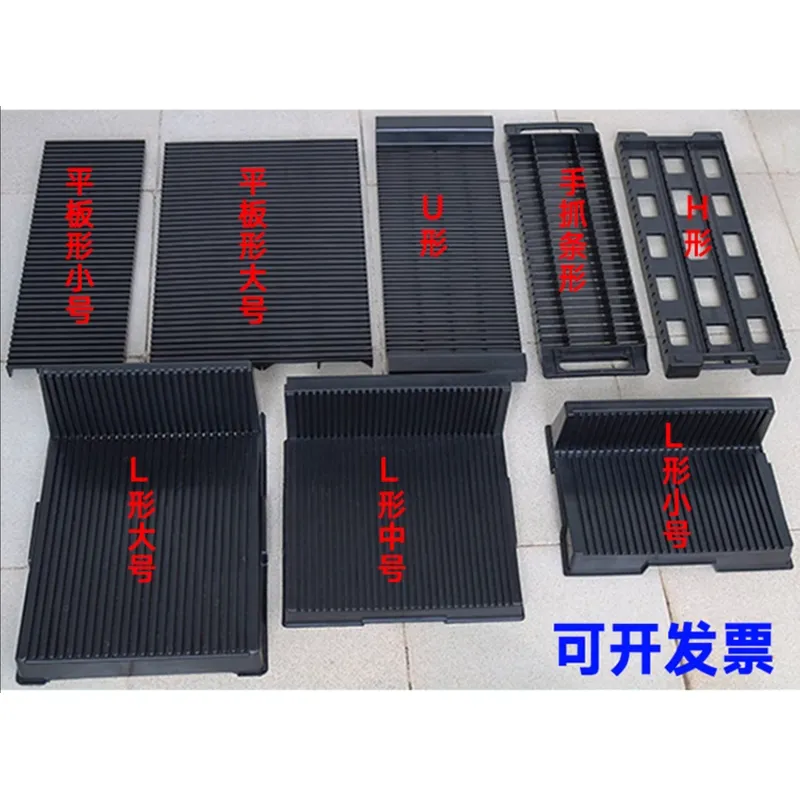

In general, this L-shaped card slot tray is very suitable for use as a PCB board turnover rack due to its anti-static properties, reasonable card slot design and moderate size and weight, which can effectively improve the efficiency and safety of production, warehousing and transportation links.
