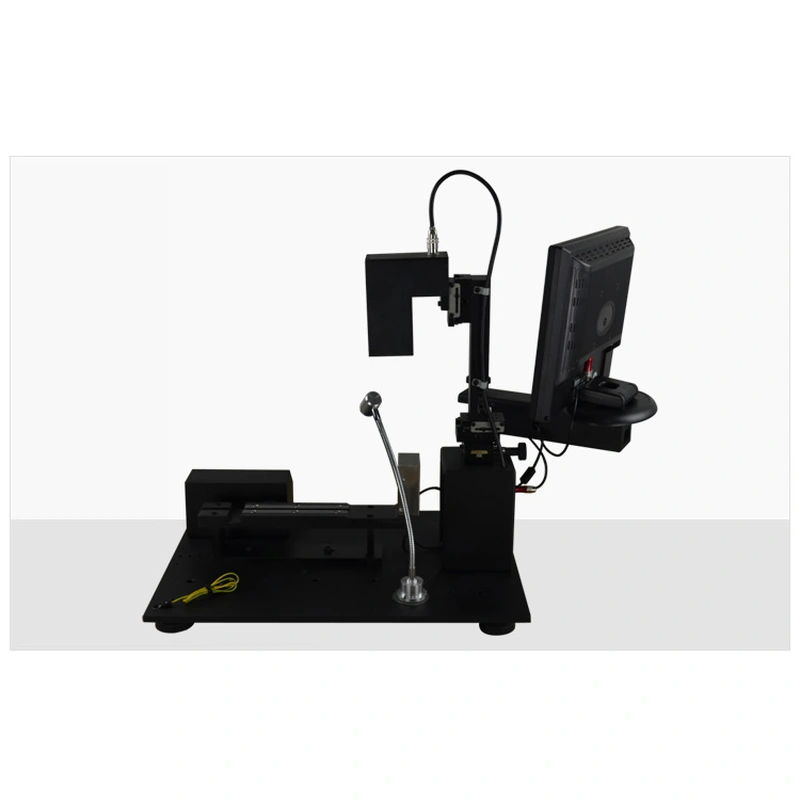

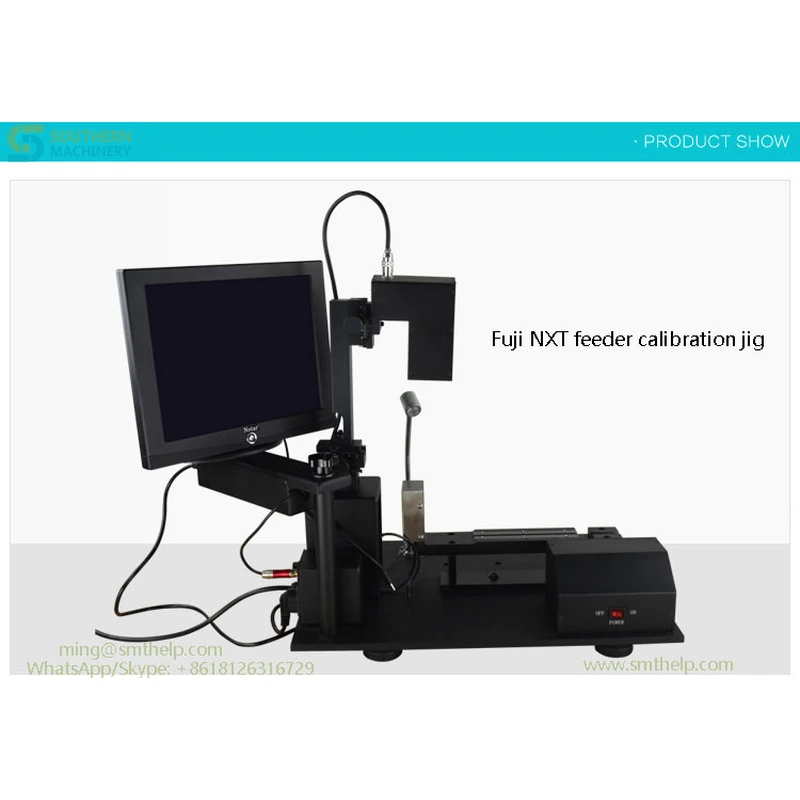

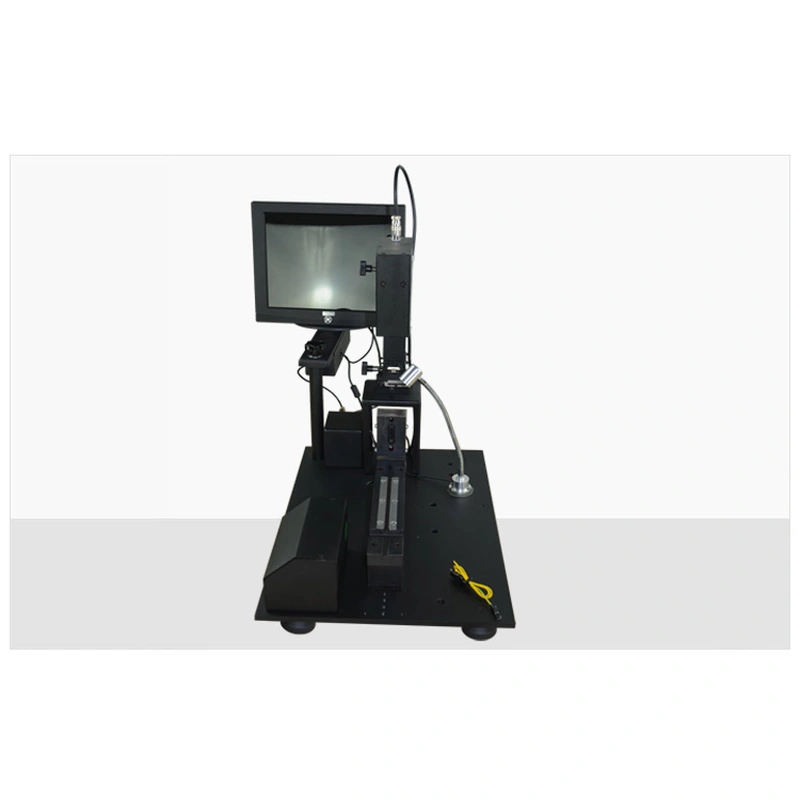

Fuji NXT feeder calibration jig
smt spare parts manufacturer and supplier.Fuji spare parts for sales:
We manufacturer and supplier Fuji SMT spare parts .such as feeder parts , machine parts , nozzles, filter, dispensor, belt, Feeder Carts, feeder calibration jig AI part ,etc.
We have good source and large ready stock for major brand SMT automotive spare parts.
Brand: Fuji, Hitachi/Sanyo,Juki, Panasonic(KME), Assembleon/Phillips, Sanyo, SIPLACE/SIEMENS, Universal, DEK , I pulse ,Samsung and Yamaha.
For those Fuji spare parts which are not listed, please email us. ming@smthelp.com
WhatsApp/Skype: +8618126316729
Fuji NXT feeder calibration jig for sales :
Model: | S-FFCJ10 |
Name: | Fuji NXT feeder calibration jig |
Model Year: | 2019 |
Uses for: | Fuji NXT feeder calibration |
Location: | China |
1, Simple structure, easy operation, function optimization. And the use of high-precision 0 gap guide, to ensure positional stability, greatly improve work efficiency 2, Accurate detection. Reclaimer position, height, strut height can be done accurately measured. To better grasp the quality status; 3, The use of 12 ‘color LED display, LED lighting ring, 50 times magnification CCD camera, making more compact structure, beautiful. Effectively reducing eye fatigue, improve the quality of work; 4, Easy to operate, and can simulate the placement machine, automatic continuous observation reclaimer position, a clearer grasp FEEDER continuous operation quality, and thus more effective control of polishing material ratio; 5. The dynamic state adjustable method.(single / continuous strike. FEEDER calibration jig for calibration of various models
| Specification | |
| Working Voltage | 220V/AC(50Hz) 60W |
| Material | aluminum and iron |
| Air Pressure | 5KG/c㎡ |
| Visual System | 50 times magnification CCD camera |
| Lighting system | Ring the LED lighting |
| Display system | Ultra bright LCD color display |
| Feeding control | Precise 8 *2mm /12 *4 mm / 16 * 8mm and 24*8mm feeder control zone |
| Power supply | 220V, 50Hz |
| Machine Size | 350*500*550 mm |
| Weight | 45Kg |
Characteristics：
The operation is simple, the external appearance is simple and cleverly.
X, Y, H -three stalks, adoption Japan importing and the high accuracy wheel gear drive, precision and credibility.
50X CCD;with LED lighting, appearance clearer.
Install dynamoelectric, single and continuous strike LEVER, simulate machine action.
Observing the wheel gear dynamic state step the conditions.
With standard calibration Ruler to adjust component centeral.
