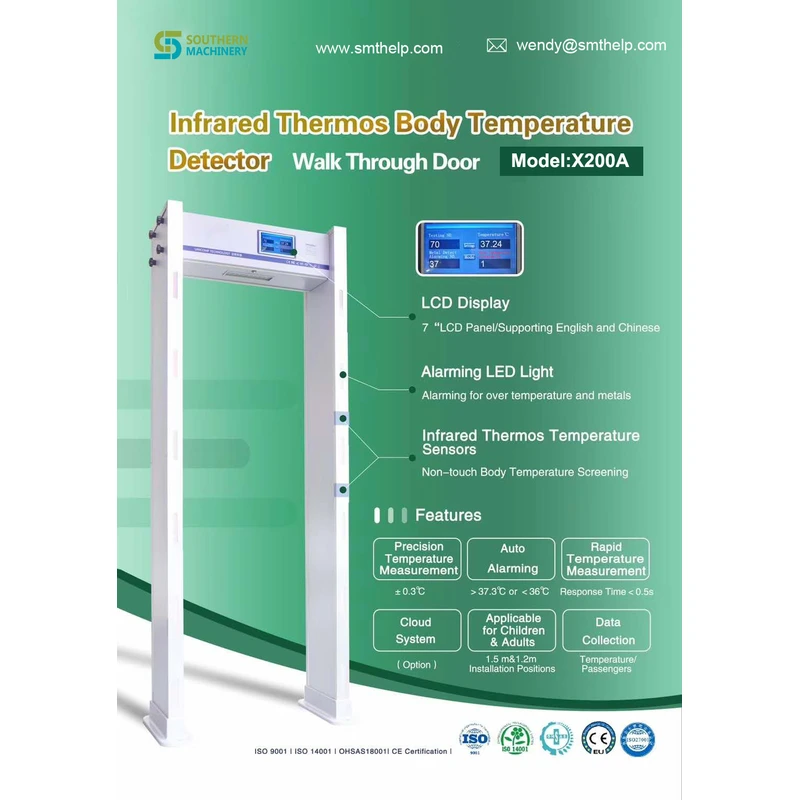

X200A Infrared Sensor Temperature Detection Door(Security Walk Through Infrared Human Temperature Gate)

This detection door can

1, Saving one month salary of one security staff

2, Giving you a sense of security (Measure Body Temperature )

Can’t find all? please contact: wendy@smthelp.com


X200A is an automatic infrared temperature detector and alarming system adopts military-grade infrared technology, which can screen people who pass through the walk-through door frame for non-inductive infrared body temperature. The alarming system will be automatically triggered once a higher body temperature is detected than the pre-setting threshold. It can screen people with fever in large scale, improve the prevention and control efficiency of the epidemic, and greatly reduce the risk of infection


Airport, Customs, Train Stations, Shopping Mall, School, Hospital, Hotel, Law Enforcement Church, Theatre, Museum, Stadium, Factory, Exhibition Center, Government Office, etc.

Technical Specifications

High precise body temperature detection and auto alarming, response time < 0.5s
Temperature accuracy: ±0.3℃, two infrared sensors equips with different height
Safety temperature threshold with self-calibration( standard: 37.3 °C, adjustable)
Pass through (in & out ) counting, auto alarming with sound and LED lights
Light weight and strong anti-interference, stable performance
Automatic self-calibration, pre-setting the alarm threshold, decrease manual operation and improve efficiency
Plug and play with modular design parts, easy to install and troubleshoot
Low rate of false alarm with cutting-edge digital signal processing technology
One button operation to restore factory default settings
International A-level measurement capability, stable working
Extensibility of the integration with Metal Detector, turnstile barrier gate, finger-print access control, CCTV, and ID reader ( Optional)
Networking management for multi-terminals with real time monitoring and data retrieving (Optional)
LCD Display 7”Colors TFT LCD
Temperature accuracy ±0.3℃,
Power consumption < 15W
Temp. Detecting Range 25 ℃~ 43 ℃
External Power  AC 110~240V, 50/60HZ
Net Weight 45KG
Gross Weight 52KG
Working Environment No direct sunlight, No wind
Operating humidity 99%,non-condensing
Inner Size 1983(H)× 702 (W)× 334 (L)(mm)
Outline size 2199(H)× 818 (W)× 334 (L)(mm)
Package Size(2 cartons)  820*480*260mm       (Control Unit)

2340*830*260mm     (Frame Panel)

Certifications CE,FDA, ISO9001, ISO14001, OSHAS18001, Chinese GB
