LED Pick & Place S-600-OF
AC Servo MotorLED Pick & Place S-E20000SMT Radial Taped Feeder (16)

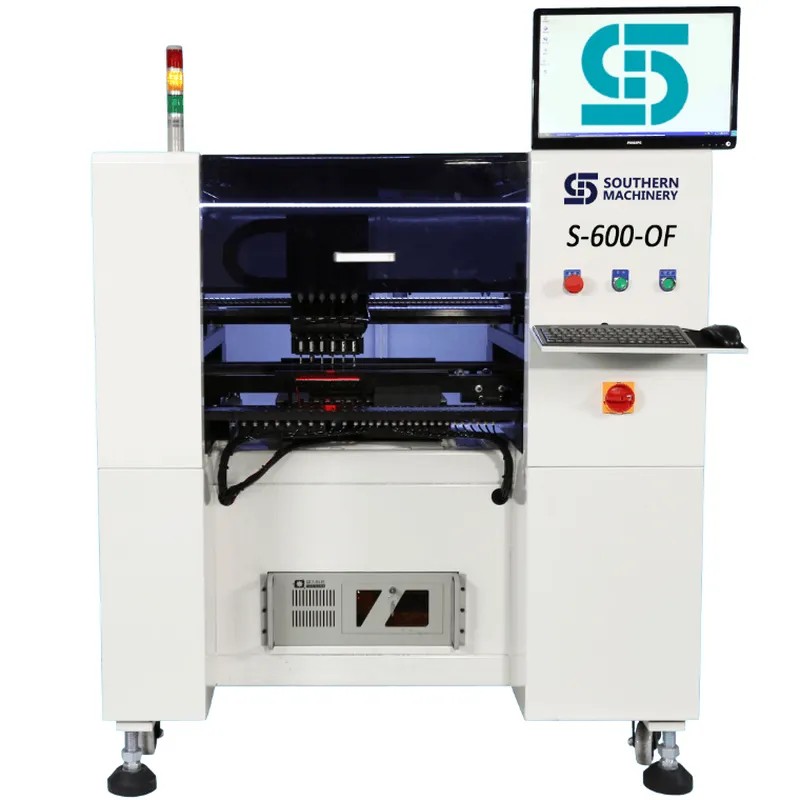

Through-hole/Surface mounting Multi-function Machine S-600-OF

1) With Six nozzle, can be place up to 30pcs Feeder(SMD)or 5 THT component feeder.
2) Avalable PCB Size: Max. 400mm360mm; Min. 5050mm, suit for variety of PCB.
3) PCB Thickness: 0.5-3.0mm
4) Equipped with variety of nozzles, replace the nozzle by manual.
5) Highly Efficiency: 25,000 CPH Spec Speed (SMD)or 6000CPH spec speed(THT)
6) Number of camera: 7
7) Windows XP operation system, LED Monitor.
8) Machine vision caliberation systems.0402(inch)~<15 IC
9) Air Source: 0.55MPA
10) Power Supply: Single Phase 220V, 50Hz 2.0KW
11) Dimension: 130013801790mm (LWH)
12) Net Weight: 1050KG

Product Description



SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,



The S-600-OF is a revolutionary new concept from southern machinery.  This Pick and Place machine allows the placement or insertion of both surface mount and through-hole components.





SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,





SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,         SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,





S-600-OF Smt Machines Automatic Led Pick And Place Machine,Automatic Placement Machine,Smt Machines:

S-600-OF High-Speed, High-Mix PCB mounting machine pick and place robot machine Assemble Electronics PCB with required precision.

Built upon the same architecture as Southern Machinery’s popular OF Series of SMT placement machines, the S-600-OF is specially designed for handling small electronics PCBs, with high-precision and quick turn-around times. Based on the S-OF Series’ heavy-duty ball-screw and linear-encoded drive train, its six heads and bottom vision allow accurate placement of major SMD, including 0402 chips, IC, 0.5mm pitch QFPs and LEDs, and some THT components.


Product Description

S-600-OF pcb mounting machine pick and place robot machine Features

  • Six pick-up heads.
  • Practical placement speed to 18,000 cph.
  • Huge Component Range: places SMDs from 0402 to 15 mm x 15 mm, including resistors, capacitors, inductors, diodes/audion , IC, SOTs, SOPs, QFPs and CSPs, and THT components.
  • Feeder racks can accommodate a mix of tape feeders and IC tube/stick feeders or 5 THT components feeder.
  • Teaching/fiducial recognition camera for easy programming & operation
  • Customized nozzles available.
  • Bottom fixed-camera vision system for fast, accurate alignment.
  • Ball screw drive and heavy-duty, uni-body construction ensure smooth, high-speed movement and high accuracy and repeatability.
  • SMEMA-compatible inline conveyor .



S-600-OF pcb mounting machine pick and place robot machine – General Specifications



SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,Each of the S-600-OF’s six pick-up heads is equipped with a vision alignment camera provide efficiency and flexibility.

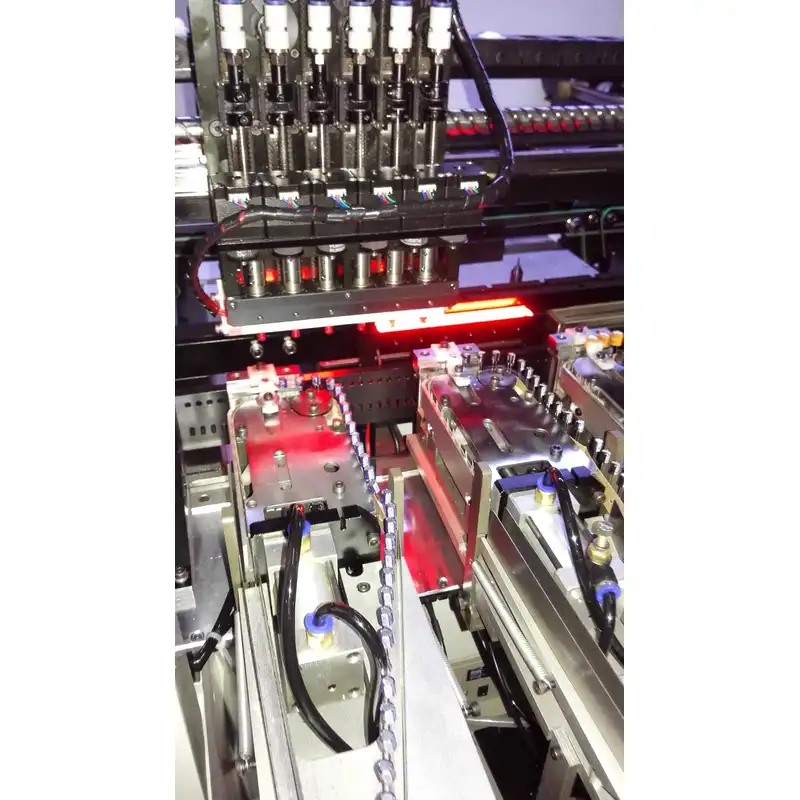

SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display, SMT Radial Taped Feeder (18)   S-600-OF can assemble LED light boards as well as LED driver and Radial THT components.

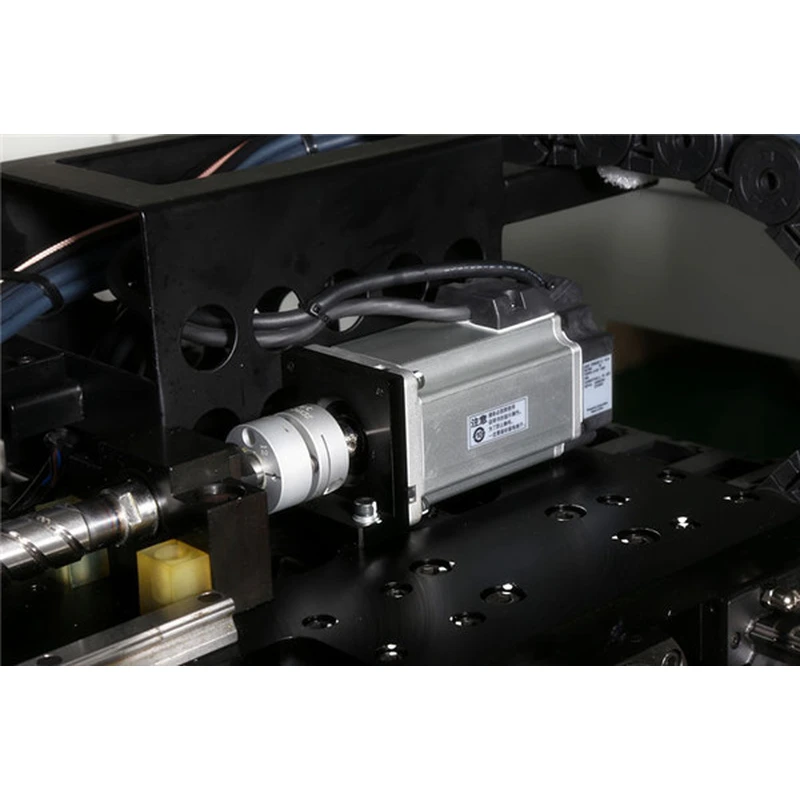

SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display, SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,   Servo-driven X/Y axis with ball screw ensure placement repeatability and precision.


SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,        SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,

Through-hole-tape and component dimensions
The dimensions for tape packaging and components which are important for the
radial feeder are shown in the graphic. Please consider, that the dimensions
shown in the drawing are mainly minimum or maximum sizes.
Numerous special designs are possible and available for components with
varying dimensions with regard to size, leads and tape packaging.



SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display,





Large, precise component placement range

S-600-OF places SMDs from 0402 to 15 mm x 15 mm, including resistors, capacitors, inductors, diodes/audion , IC, SOTs, SOPs, QFPs and CSPs and THT components.



Bottom vision alignment systems ensure accurate alignment of component connection points (leads, balls, bumps) to pads, with ±0.05 mm placement accuracy and ±0.005 mm repeatability.



Move quickly from prototyping to production

With placement speed of 18,000 CPH (average practical speed), up to 30 feeder slots or 5 THT components feeder, and quality components such as X-Y linear encoders, users can move from prototype into production on the same machine, saving programming and job setup time. System software will optimize your placement sequences to achieve the greatest possible throughput.



Suitable for LED lighting products

Flexible PCB strips, circular LED light bulb boards and even irregularly shaped boards can also be assembled quickly, accurately and reliably on all models in the S-OF series. For long LED tubes, model S-1200-LV features a max board size of 47.3″ (1200 mm), Model S-600-OF offers a max board size of 31.5″ (800 mm).



S-600-OF comes standard with a SMEMA-compatible inline conveyor for line automation, and holds up to 30 pneumatic tape feeders for mass production.



Software simplifies production

Programming this Windows®-based system is easy with its vision programming and universal CSV data import.



Built-in fiducial mark search routines identify and correct for PCB offset or misalignment.



Vision Check corrects component angular deviation before placement assembly.



Automatic, vision-assisted Suction Check can be activated to prevent pick-up errors from tapes with loose tolerances.



Companies that already have one or more S-OF series SMT placement equipment in their facility will find the S-600-OF’s software interface immediately familiar, which means a quick learning curve when it comes to programming and operating this machine.

Included with the S-600-OF pcb mounting machine pick and place robot machine

  • S-600-OF automatic SMT machine with welded steel frame construction
  • Six pick and place heads in a single gantry
  • 30 feeder ports, or 5 THT components Feeders.
  • Standard optics package with upward-looking vision alignment camera, covering component range from 0402s to 15 x 15 mm.
  • Reference camera for fiducial recognition and programming
  • High-precision ball screw drive
  • Closed-loop servo motor control
  • SMEMA-compatible inline conveyor
  • Welded, uni-body, steel frame construction
  • Windows-based advanced pick and place control software with CSV Import, Smart Pick-up Head Optimization, Nozzle_Feeder Application, Real-time Speed Display, Data Backup and more
  • Computer controller with flat-screen LCD display, keyboard and mouse
  • Network adapter
  • Remote service support software
  • 1-year warrantySave

Placement Specifications

Number of Placement Heads

6

Maximum Placement Speed

25,000 cph

Average Practical Placement Speed

18,000 cph

Placement Accuracy

±0.05 (0.002″)

Minimum SMD Size

1.02 mm × 0.51 mm (0.04 in × 0.02 in)

Maximum SMD Size

15 mm × 15 mm × 10 mm (0.59” × 0.59” × 0.39“)

Alignment Method

Bottom vision standard

Capability for SMDs

LEDs, Resistors, Capacitors, Inductors, Diodes, Audion,

Transistors, SOTs, SOPs, QFP,s QFNs, CSPs

Pick Up Specifications

Negative Pressure Detection

Yes

Components Shortage Alarm

Yes

Board Handling Specifications

Board Loading Method

Inline Conveyor

Maximum Board Length

400 mm (31.5“) standard

Maximum Board Width

360 mm (17.2“)

Minimum Board Length

50 mm (1.97”)

Minimum Board Width

50 mm (1.97”)

Board Thickness

0.5 mm to 3.0 mm (0.02” to 0.12″)

Fiducial Recognition/
Coordinate Correction

Yes

Feeder Capacity

Feeder Type

Pneumatic

Maximum No. of Feeder Ports

30 Or 5 THT components Feeders.

Tape Feeder Sizes

8, 12, 16 and 24 mm

Programming

Operating System

Windows XP

PC, Keyboard, Mouse

Yes

Monitor

Flat LCD

Programming Camera

Yes

Numeric Data Entry

Yes

CSV Import

Yes

Step and Repeat for Matrix Boards

Yes

Mechanical Specifications

X Axis Drive Mechanism

Ball Screw & Linear Guide Rail

X Axis Drive Motor

AC Servo

Y Axis Drive Mechanism

Ball Screw & Linear Guide Rail

Y Axis Drive Motor

AC Servo

Conveyor Drive Mechanism

Ball Screw & Linear Guide Rail

Conveyor Drive Motor

AC Servo

Transmission Drive Mechanism

Belt

Transmission Drive Motor

DC Stepper

Z Axis Drive Mechanism

Belt

Z Axis Drive Motor

DC Stepper

X-Y Axis Resolution

0.005 mm (0.0002“)

Z Axis Resolution

0.005 mm (0.0002“)

T Axis Range of Motion

360°

Physical Specifications

Overall Dimensions

(L x W x H)

1300 mm x 1380 mm x 1410 mm (51.2” x 54.3” x 55.5)

Approximate Net Weight

1000 Kg

Facility Requirements

Standard Voltage

220 V – Single Phase, 50Hz

Air Pressure

0.6MPa (6.1kgf/cm2)

Service and Support

Remote Diagnostics

On-line

Warranty

1 Year
